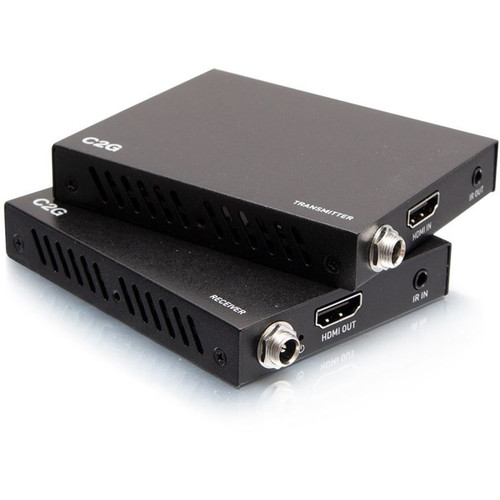

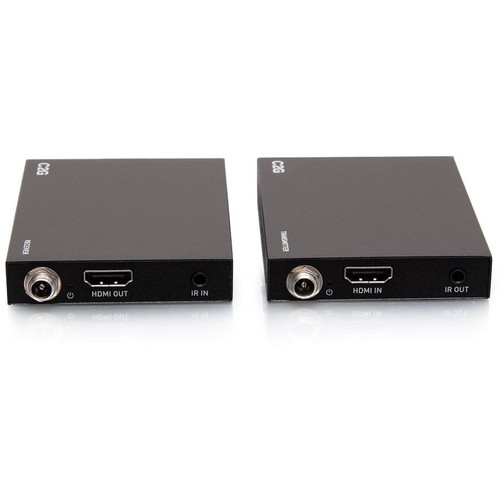

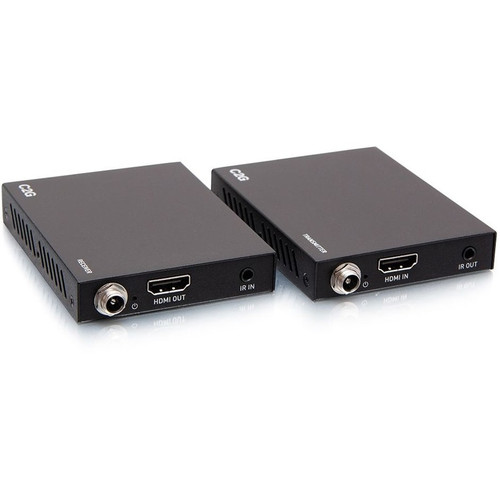

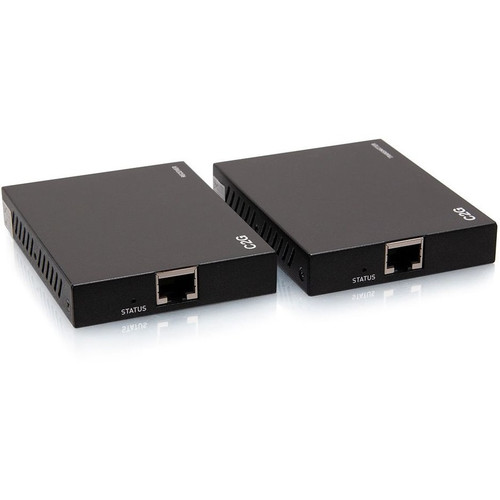

C2G HDMI over Cat5/Cat6 Extender Box Transmitter to Receiver - up to 164ft - 1 Input Device - 1 Output Device - 164 ft (49987.20 mm) - (C2G60220)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Description
- 1 x Transmitter
- 1 x Receiver
- 1 x 12V/1A Power Adapter with UK, EU & AU Plug
- 1 x IR Emitter
- 1 x Broadband IR Receiver (30-50KHz)
- 4 x Mounting Brackets (with screws)
- 1 x User Manual
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 164 ft (49987.20 mm)
Graphics Modes: 4K
Supported Video Modes: 1080p
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Color Family: Black
Product Color: Black
Transmitter Height: 0.60" (15.20 mm)
Transmitter Width: 3.54" (90 mm)
Transmitter Depth: 3.54" (90 mm)
Receiver Height: 0.60" (15.20 mm)
Receiver Width: 3.54" (90 mm)
Receiver Depth: 3.54" (90 mm)
Package Contents:
Country of Origin: China
Limited Warranty: 3 Year
- Extend 4K at 60Hz (4:4:4) up to 115ft with Cat 6/6a cable
- Extend 4K at 30Hz (4:4:4) up to 131ft and 1080p at 60Hz up to 164ft with Cat 5e/6/6a cable
- HDCP 2.2 compliant, to create a secure connection between the source and display
- Supports multi-channel audio formats, including PCM 7.1, Dolby TrueHD and DTS-HD Master Audio
- Supports one-way IR pass-through from receiver to transmitter
- Supports bi-directional Power over Cable (PoC), one power adapter at either transmitter or receiver side can power both units
- Slim profile for easy installation
[custom-specifications]
| Specifications | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | C2G60220 |
| Manufacturer Website Address | http://www.legrand.com |
| Brand Name | C2G |
| Product Name | HDMI over Cat5/Cat6 Extender Box Transmitter to Receiver - up to 164ft |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 164 ft (49987.20 mm) |
| Video | |
| Graphics Modes | 4K |
| Supported Video Modes | 1080p |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6a |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 0.60" (15.20 mm) |
| Transmitter Width | 3.54" (90 mm) |
| Transmitter Depth | 3.54" (90 mm) |
| Receiver Height | 0.60" (15.20 mm) |
| Receiver Width | 3.54" (90 mm) |
| Receiver Depth | 3.54" (90 mm) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
