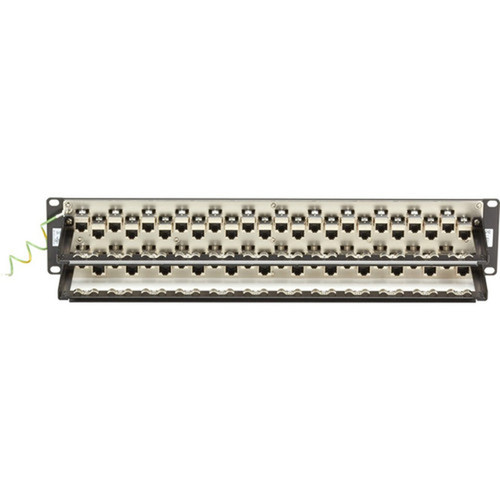

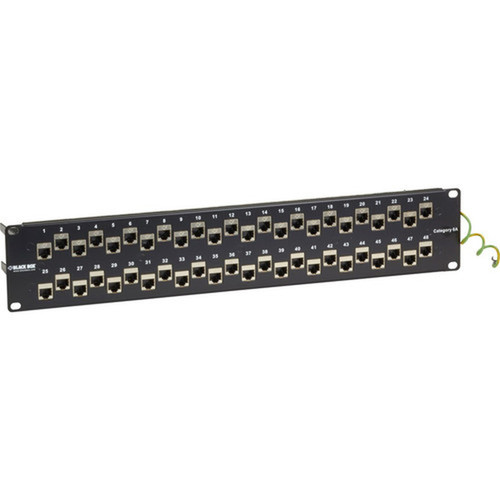

Black Box C6AFP70S-48 CAT6A Shielded Feed-Through Patch Panel - 48-Port - 2U Rack-Mountable - Staggered Design
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The C6AFP70S-48 patch panel supports CAT6A performance standards, enabling data transmission up to 10 Gbps over distances up to 100 meters. Its shielded design reduces electromagnetic interference, ensuring stable connectivity in electrically noisy environments. The panel's 48 ports are arranged in a staggered configuration, which improves cable accessibility and reduces strain on connectors during installation and troubleshooting.
Compatible with standard 19-inch racks, this 2U unit integrates seamlessly into existing rack infrastructure. The included rear cable management bar organizes excess cable length, maintaining a clean and professional appearance. The panel's dimensions of 3.50" height, 19" width, and 4.50" depth provide a low-profile footprint, conserving valuable rack space for additional equipment.
Key Product Advantages
This patch panel combines high port density with user-friendly features that streamline network deployment and maintenance. The staggered feed-through layout allows technicians to easily identify and access individual ports, reducing downtime during cable moves, adds, or changes. The shielded construction protects against crosstalk and external interference, ensuring reliable performance in demanding applications.
Enhanced Cable Management
The included rear cable management bar secures and routes cables neatly, preventing tangles and improving airflow within the rack. This organization reduces heat buildup and simplifies future modifications.
- Reduces cable clutter
- Improves rack ventilation
- Facilitates quick identification
Durable Construction
Manufactured from cold-rolled steel, the panel resists bending and deformation under load. This robustness ensures long-term reliability in high-usage environments, supporting heavy cable bundles without sagging.
- Withstands physical stress
- Maintains port alignment
- Corrosion-resistant finish
Deployment / Use Cases
The C6AFP70S-48 is ideal for data centers, corporate network closets, and telecommunications rooms where high-density patching is required. Its feed-through design suits environments using pre-terminated CAT6A cables, allowing rapid deployment without on-site termination. The panel's compliance with TAA and RoHS standards makes it suitable for government contracts and environmentally conscious organizations.
In server rack installations, this patch panel consolidates connections between switches, servers, and other network devices, creating a structured and scalable cabling foundation. Educational institutions and healthcare facilities benefit from its shielded performance, which maintains network integrity in areas with medical or laboratory equipment. The lifetime warranty provides peace of mind for critical infrastructure deployments.
Data Center Patching
Centralizes connections in server racks, supporting high-speed backbone links and top-of-rack switching. The 48-port capacity accommodates growing server and storage networks.
- Supports 10 Gbps uplinks
- Scales with rack expansion
- Minimizes patch cable runs
Structured Cabling Systems
Integrates into horizontal cabling runs, terminating workstation drops in office buildings or campus networks. The staggered layout simplifies port mapping and documentation.
- Organizes user connections
- Facilitates MAC work
- Reduces installation time
Physical Profile
Designed for standard 19-inch rack mounting, this patch panel occupies 2U of vertical space with a depth of 4.50 inches. The compact profile allows installation in shallow racks or crowded enclosures without protruding into aisle space. The cold-rolled steel chassis features a durable powder-coated finish that resists scratches and corrosion, maintaining a professional appearance over time. Mounting hardware includes both 10-32 and 12-24 cup head screws for compatibility with various rack threading standards.
- Width
- 19"
- Depth
- 4.50" (114.30 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 3.89 lb (1764.47 g)
What's in the Box
The package includes all necessary components for immediate installation and operation.
Highlights
- 48 RJ-45 ports for high-density network patching
- CAT6A shielded performance supports 10 Gbps speeds
- Staggered feed-through design simplifies cable management
- 2U rack-mountable form factor saves space
- Constructed from durable cold-rolled steel
- Includes rear cable management bar for organization
- RoHS compliant and environmentally friendly
- TAA compliant for government procurement
- Lifetime warranty for long-term reliability
- Made in Taiwan with quality manufacturing standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | C6AFP70S-48 |
| Brand Name | Black Box |
| Product Model | C6AFP70S-48 |
| Product Name | CAT6A Staggered Feed-Through Patch Panel - 2U, Shielded, 48-Port |
| Product Condition | New |
| Product Type | Network Patch Panel |
| Interfaces/Ports | |
| Total Number of Ports | 48 |
| Number of Network (RJ-45) Ports | 48 |
| Physical Characteristics | |
| Product Material | Cold Rolled Steel |
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 2U |
| Compatible Rack Width | 19" |
| Height | 3.50" (88.90 mm) |
| Width | 19" (482.60 mm) |
| Depth | 4.50" (114.30 mm) |
| Weight (Approximate) | 3.89 lb (1764.47 g) |
| Miscellaneous | |
| Package Contents | CAT6A Shielded Feed-Through Patch Panel, 48-Port, 2U 4 x 10-32 Cup Head Screws 4 x 12-24 Cup Head Screws Rear Cable Management Bar |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the difference between a feed-through and a punch-down patch panel?
A feed-through patch panel, like the C6AFP70S-48, allows pre-terminated cables to pass directly through RJ-45 ports without requiring on-site termination. This design speeds up installation and simplifies moves, adds, and changes. In contrast, punch-down panels require cables to be terminated onto insulation displacement connectors, which is more time-consuming but can be more permanent. The feed-through approach is ideal for environments using factory-terminated cables or where frequent reconfigurations are expected.
How many rack units does this patch panel occupy?
This patch panel occupies 2 rack units (2U) in a standard 19-inch rack. Its height is 3.50 inches, which is equivalent to two 1.75-inch rack units. This compact design allows for high port density while conserving vertical space, making it suitable for racks with limited clearance or those needing to accommodate multiple devices.
Is this patch panel shielded, and why is that important?
Yes, the C6AFP70S-48 is a shielded patch panel. Shielding reduces electromagnetic interference (EMI) and crosstalk between adjacent cables, which is critical for maintaining signal integrity in high-speed CAT6A networks. This feature ensures reliable 10 Gbps performance, especially in environments with heavy electrical equipment or dense cable bundles, preventing data errors and network downtime.
What does TAA compliance mean for this product?
TAA (Trade Agreements Act) compliance indicates that this patch panel is manufactured in Taiwan, a designated country under U.S. government procurement regulations. This certification allows the product to be used in federal contracts and projects requiring TAA-compliant equipment. It ensures that the panel meets sourcing requirements for public-sector deployments, such as in government agencies or educational institutions receiving federal funding.
Can this patch panel be used with CAT5e or CAT6 cables?
Yes, the C6AFP70S-48 is backward compatible with CAT5e and CAT6 cables. The RJ-45 ports accept standard Ethernet connectors, allowing integration into existing cabling infrastructure. However, to achieve CAT6A performance (10 Gbps up to 100 meters), CAT6A shielded cables and compatible equipment are required. Using lower-category cables will limit performance to the specifications of those cables.
What is included in the package for mounting the patch panel?
The package includes mounting hardware for secure rack installation: four 10-32 cup head screws and four 12-24 cup head screws. These screws accommodate different rack threading standards, ensuring compatibility with most 19-inch racks. Additionally, a rear cable management bar is provided to organize and secure cables, reducing clutter and improving airflow within the rack environment.
