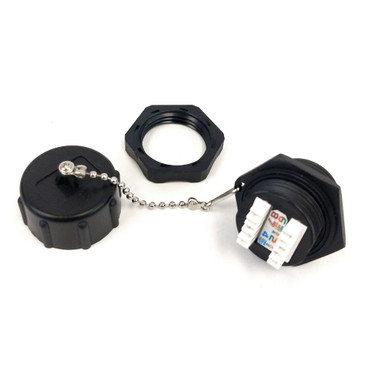

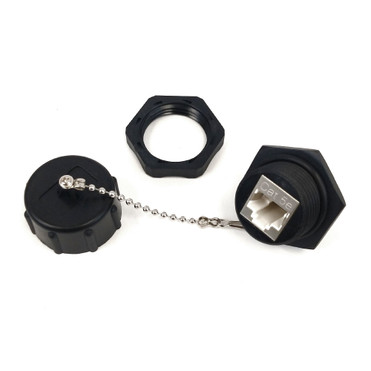

Cat5e RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
SKU:
FN-JK-C5P-SBK-IP68
(No reviews)
Write a Review
Write a Review
Fleet Network
Cat5e RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
MSRP:
$20.95
$20.95
$18.95
Save:
$2.00 (9.55%)
Weight:
0.07 LBS
Width:
1.00
(cm)
Height:
1.00
(cm)
Depth:
1.00
(cm)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
Products Features
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Description
Overview
This Cat5e shielded bulkhead coupler consists of a RJ45 female on one end and a standard 110 punch down on the other end. It is typically used to connect a RJ45 male outdoor network cable where dust, water and protection from the elements is required. Creates a IP68 rating when used in conjunction with our matting RJ45 male shroud. It is suitable for outdoor or industrial applications.
| Physical Characteristics | ||
|---|---|---|
| Color | Black | |
| Body Material | PBT+GF,UL94V-0 | |
| Jack Housing | PC,UL94V-0 | |
| Connector Plating | Gold Plated | |
| Shielded Case | Brass, Nickel Plated | |
| Thread Pattern | ¾"-14 | |
| Operating Temperature | -10℃ to 60℃ | |
| Storage Temperature | -40℃ to 68℃ | |
| Humidity | 10% ~ 90% RH | |
| Connector(s) | ||
| RJ45 Cat5e | Female | |
| Standard 110 | Terminate | |
| Performance | ||
| Insertion Life | 750 Mating Cycles | |
| Contact Force | 100 Grams | |
| Plug Retention Force | 11 LBF MIN | |
| Durability | 200 Termination Cycles | |
| Contact Compatibility | Accommodates 22 to 24 AWG Solid | |
| Electrical Features | ||
| Insulation Resistance | 500 M٦ | |
| Dielectric Withstanding Voltage | 1000 V AC | |
| DC Current Rating | 1.5 Amps | |
| DC Resistance | 0.1Ω¦ | |
| Contact Resistance | 20m٦ | |
| Compatible Items | ||
| SB-EBH2-WH | Single Gang Surface Mount Box with 2x Ethernet Bulkhead Knockouts - Waterproof IP68 Rated - White | |
| WP-EBH1-SS | Single Gang Wall Plate - 1x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel | |
| WP-EBH2-SS | Single Gang Wall Plate - 2x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel | |
| WP-EBH4-SS | Double Gang Wall Plate - 4x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel | |
| CN-BT-IP68-BK | RJ45 IP68 Waterproof Shroud for RJ45 Male Cable - Fits Cable OD of 5mm to 10mm - Black | |
| Environmental | ||
| IP Rating | IP68Rated When Used in Conjunction with RJ45 shroud | |
| RoHS | Yes | |
| Packaging Information | ||
| Product Weight | 0.07 lbs [0.03 kg] | |
