SIIG CE-H25L11-S1 HDMI KVM Over Cat6 Extender Receiver - 4K 4096 x 2160328 ft Range - 1 Computer - 3 USB Ports
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM extender receiver utilizes wired connectivity over Cat6 cable to transmit uncompressed 4K video at 30Hz refresh rates. The HDMI port delivers maximum resolution of 4096x2160, ensuring compatibility with 4K monitors, projectors, and displays. Three USB Type-A ports support keyboard, mouse, and peripheral connections, while the RJ-45 port establishes the network link to the transmitter unit.
Power input accepts 100-240V AC through the included adapter, making the receiver suitable for international deployment. The extender maintains signal integrity across the full 328-foot distance without requiring additional signal boosters or repeaters.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Maximum Operating Distance, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This extender receiver delivers professional-grade performance with straightforward installation. The combination of long-distance capability and high-resolution support addresses common challenges in AV integration and remote workstation setups.
Extended Range Without Compromise
Transmit 4K video and USB signals up to 328 feet using affordable Cat6 cable while maintaining full resolution and peripheral responsiveness.
- No signal degradation at maximum distance
- Uses standard network infrastructure
- Eliminates need for expensive fiber runs
Comprehensive Connectivity
The receiver provides dedicated ports for display, network, and multiple USB devices in a single compact unit.
- HDMI for 4K video output
- Three USB ports for peripherals
- RJ-45 for Cat6 connection to transmitter
Deployment / Use Cases
The SIIG HDMI KVM over Cat6 Extender Receiver is ideal for environments where computer equipment needs to be located away from user workstations or displays. The 328-foot range enables flexible placement of noisy or heat-generating equipment in separate rooms, closets, or racks while maintaining full control and video quality at the user location.
Common applications include digital signage systems where media players are centrally managed, conference rooms with hidden computer equipment, control rooms requiring extended workstation reach, and educational facilities with shared computing resources. The extender also supports retail displays, medical imaging stations, and industrial monitoring setups where equipment isolation improves workspace ergonomics and security.
Conference Room Integration
Place computers in equipment closets while maintaining 4K video quality and peripheral control at conference tables up to 328 feet away.
Digital Signage Management
Centrally manage multiple media players from a secure location while displaying content on remotely located 4K screens throughout a facility.
What's in the Box
The package includes all necessary components for immediate deployment of the KVM extender system.
Highlights
- Extends HDMI, USB, and KVM signals up to 328 feet using Cat6 cable
- Supports 4K video resolution at 4096x2160 for high-definition displays
- Connects to a single computer with comprehensive peripheral support
- Includes three USB ports for keyboard, mouse, and additional devices
- Accepts 100-240V AC input for international power compatibility
- Compact receiver design measures 3.54" × 5.24" × 0.98"
- RoHS compliant for environmentally responsible manufacturing
- Backed by a 2-year limited warranty for reliable performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H25L11-S1 |
| Brand Name | SIIG |
| Product Name | HDMI 4K30Hz KVM over Cat 6 Extender - Receiver |
| Product Type | KVM Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 328 ft (99974.40 mm) |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 3 |
| Power Description | |
| Input Voltage | 120 V AC,240 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Physical Characteristics | |
| Receiver Height | 0.98" (24.89 mm) |
| Receiver Width | 3.54" (89.92 mm) |
| Receiver Depth | 5.24" (133.10 mm) |
| Receiver Weight (Approximate) | 11.04 oz (312.98 g) |
| Miscellaneous | |
| Package Contents | HDMI 4K30Hz KVM over Cat 6 Extender - Receiver 1 x Power Adapter USB Type-B to Type-A cable Quick Start Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What is the maximum distance this KVM extender can transmit signals?
The SIIG HDMI KVM over Cat6 Extender supports transmission up to 328 feet (approximately 100 meters) using standard Cat6 Ethernet cable. This distance allows flexible placement of computer equipment in separate rooms, closets, or equipment racks while maintaining full video quality and peripheral responsiveness at the user workstation.
What video resolution does this extender support?
This extender receiver supports 4K video at a maximum resolution of 4096 x 2160 pixels. It maintains this high-definition quality across the full 328-foot transmission distance, making it suitable for professional displays, digital signage, and presentation systems requiring detailed visual output.
How many computers can I connect to this KVM extender receiver?

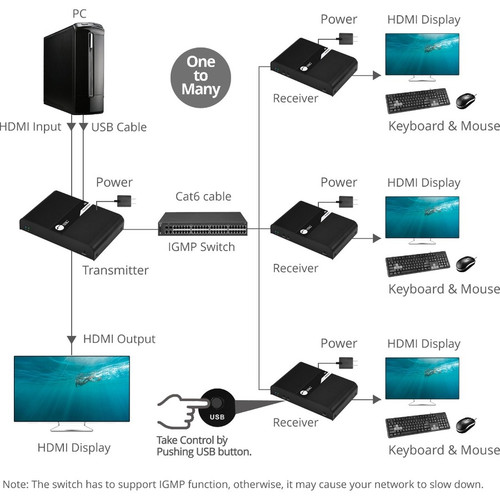

The CE-H25L11-S1 receiver is designed to connect to a single computer. It works with a compatible transmitter unit to extend that computer's HDMI video output and USB peripheral connections over Cat6 cable to a remote location where the receiver connects to displays and input devices.
What types of ports are available on the receiver unit?

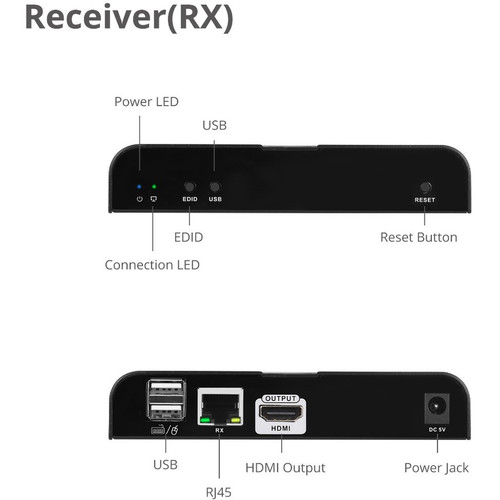

The receiver features one HDMI port for video output to displays, one RJ-45 port for Cat6 cable connection to the transmitter, and three USB Type-A ports for connecting keyboard, mouse, and other USB peripherals. This comprehensive connectivity supports complete workstation functionality at the remote location.
What power requirements does this extender have?
The receiver accepts input voltage from 100V AC to 240V AC through the included power adapter. This wide voltage range makes the unit suitable for international deployment without requiring additional voltage converters, supporting use in various geographic regions with different electrical standards.
What is included in the package with this KVM extender receiver?
The package includes the HDMI 4K30Hz KVM over Cat6 Extender Receiver unit, a power adapter for operation, a USB Type-B to Type-A cable for peripheral connections, and a Quick Start Guide for installation. These components provide everything needed to deploy the extender system with compatible displays and input devices.
