Aten CE820 USB HDMI HDBaseT 2.0 KVM Extender - 4K@100m Range (492 ft) - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

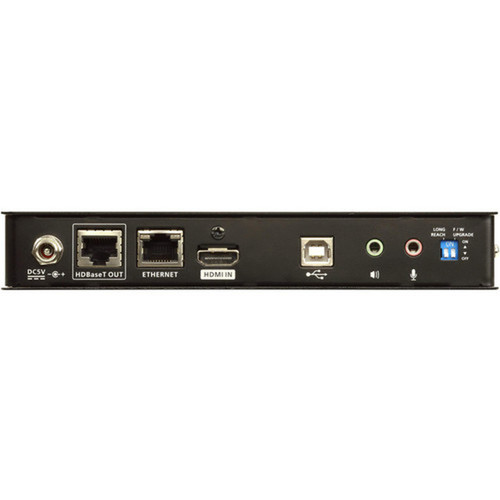

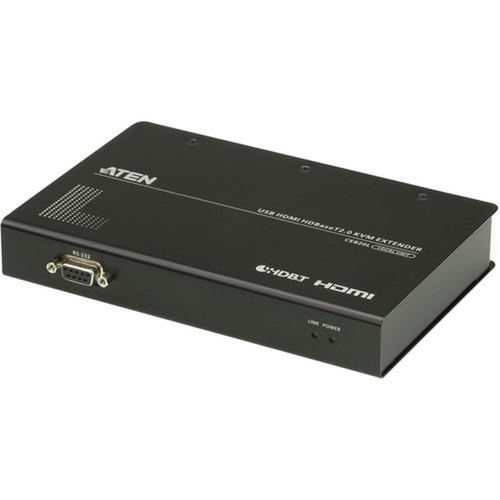

Built on the HDBaseT 2.0 standard, the CE820 supports uncompressed 4K video transmission alongside USB 2.0 data and analog audio. The system provides four RJ-45 network ports, four USB ports, and two HDMI ports across the local and remote units, enabling connectivity for peripherals like keyboards, mice, webcams, and headsets.
Power is supplied via 5V DC adapters included in the package, and the rack-mountable form factor allows for secure mounting in standard 19-inch racks. The extender operates over standard Ethernet cabling, simplifying infrastructure and reducing installation costs compared to dedicated fiber or coaxial solutions.
Relevant factors for this section include Connectivity Technology, Maximum Operating Distance, Graphic Mode, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The CE820 combines long-distance 4K extension with comprehensive peripheral support in a single, rack-optimized package. Its HDBaseT 2.0 backbone ensures reliable performance without compression artifacts, making it suitable for demanding visual applications.
Unified Signal Extension
Transmits video, USB, and audio over one Cat5e/6/6a cable, reducing cable clutter and simplifying setup.
- 4K video at 4096 x 2160
- USB 2.0 for peripherals
- Analog audio support
Professional Deployment
Rack-mountable design with included mounting kits ensures secure installation in IT environments.
- 19-inch rack compatibility
- Included foot pads for desktop use
- Compact transmitter/receiver units
Reliable Performance
HDBaseT 2.0 technology maintains signal integrity up to 492 feet, backed by a 3-year warranty.
- No compression artifacts
- Stable over standard Ethernet
- 3-year limited warranty
Deployment / Use Cases
The CE820 is ideal for environments where operators need to control computers or media sources from a distance without compromising video quality or peripheral functionality. Its extended range and rack-mount capability make it a versatile tool for centralized management.
Common applications include server room KVM access, digital signage control, lecture hall or courtroom AV systems, and broadcast monitoring setups. The extender allows IT staff to manage multiple devices from a single console, improving efficiency and reducing physical access requirements.
Server Room Management
Remotely control servers and network equipment from a centralized console, minimizing time spent in noisy or restricted spaces.
AV System Integration
Extend 4K video and control signals in classrooms, conference rooms, or control centers for seamless presentation and monitoring.
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-the-box solution.
Highlights
- Extends 4K video, USB, and audio up to 492 feet over HDBaseT 2.0
- Supports maximum resolution of 4096 x 2160 for crisp visual output
- Includes 2 HDMI ports, 4 RJ-45 ports, and 4 USB ports across units
- Rack-mountable design with included mounting kits for professional installation
- Powered by 5V DC adapters included in the package
- Comes with local (CE820L) and remote (CE820R) units for complete extension
- Includes HDMI KVM cable set for quick connectivity
- Backed by a 3-year limited warranty for reliable performance
- Environmentally compliant with RoHS and WEEE directives
- Manufactured in Taiwan with quality assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CE820 |
| Brand Name | ATEN |
| Product Model | CE820 |
| Product Name | USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m) |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 492.13 ft (150000 mm) |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| Headphone | Yes |
| Microphone | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| Number of Network (RJ-45) Ports | 4 |
| Number of USB Ports | 4 |
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Transmitter Height | 1.13" (28.70 mm) |
| Transmitter Width | 4.80" (121.92 mm) |
| Transmitter Depth | 7.17" (182.12 mm) |
| Receiver Height | 1.13" (28.70 mm) |
| Receiver Width | 4.80" (121.92 mm) |
| Receiver Depth | 7.17" (182.12 mm) |
| Transmitter Weight (Approximate) | 1.43 lb (650 g) |
| Receiver Weight (Approximate) | 1.39 lb (630 g) |
| Miscellaneous | |
| Package Contents | 1 x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit) 1 x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit) 1 x HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft) 2 x Power Adapters 2 x Mounting Kits 8 x Foot Pads 1 x User Instructions |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum distance the CE820 can extend signals?
The ATEN CE820 supports signal extension up to 492.13 feet (150 meters) over a single Cat5e/6/6a cable using HDBaseT 2.0 technology. This distance allows for flexible placement of the remote unit relative to the source, ideal for large server rooms, auditoriums, or distributed AV systems.
What video resolution does this KVM extender support?
This extender supports 4K video at a maximum resolution of 4096 x 2160. It uses HDBaseT 2.0 to transmit uncompressed video, ensuring high-quality visuals without artifacts, making it suitable for detailed graphics, monitoring, or presentation applications.
How many USB and HDMI ports are available?
The CE820 provides a total of four USB ports and two HDMI ports across the local and remote units. These ports allow connectivity for peripherals like keyboards, mice, and displays, enabling full KVM control over the extended distance.
Is the CE820 rack-mountable?
Yes, both the transmitter (CE820L) and receiver (CE820R) units are designed for rack mounting. The package includes two mounting kits and foot pads, offering flexibility for installation in standard 19-inch server racks or on desktop surfaces.
What cables are needed to connect the extender?
The extender requires Cat5e, Cat6, or Cat6a Ethernet cables for the main signal transmission between units. The package includes an HDMI KVM cable set (1.8 meters) for initial connectivity, and you'll need separate Ethernet cables of the desired length for the distance extension.
What is included in the warranty?
ATEN provides a 3-year limited warranty for the CE820 KVM extender, covering defects in materials and workmanship. The warranty ensures reliable performance and support, backed by the manufacturer's commitment to quality in professional AV and IT environments.
