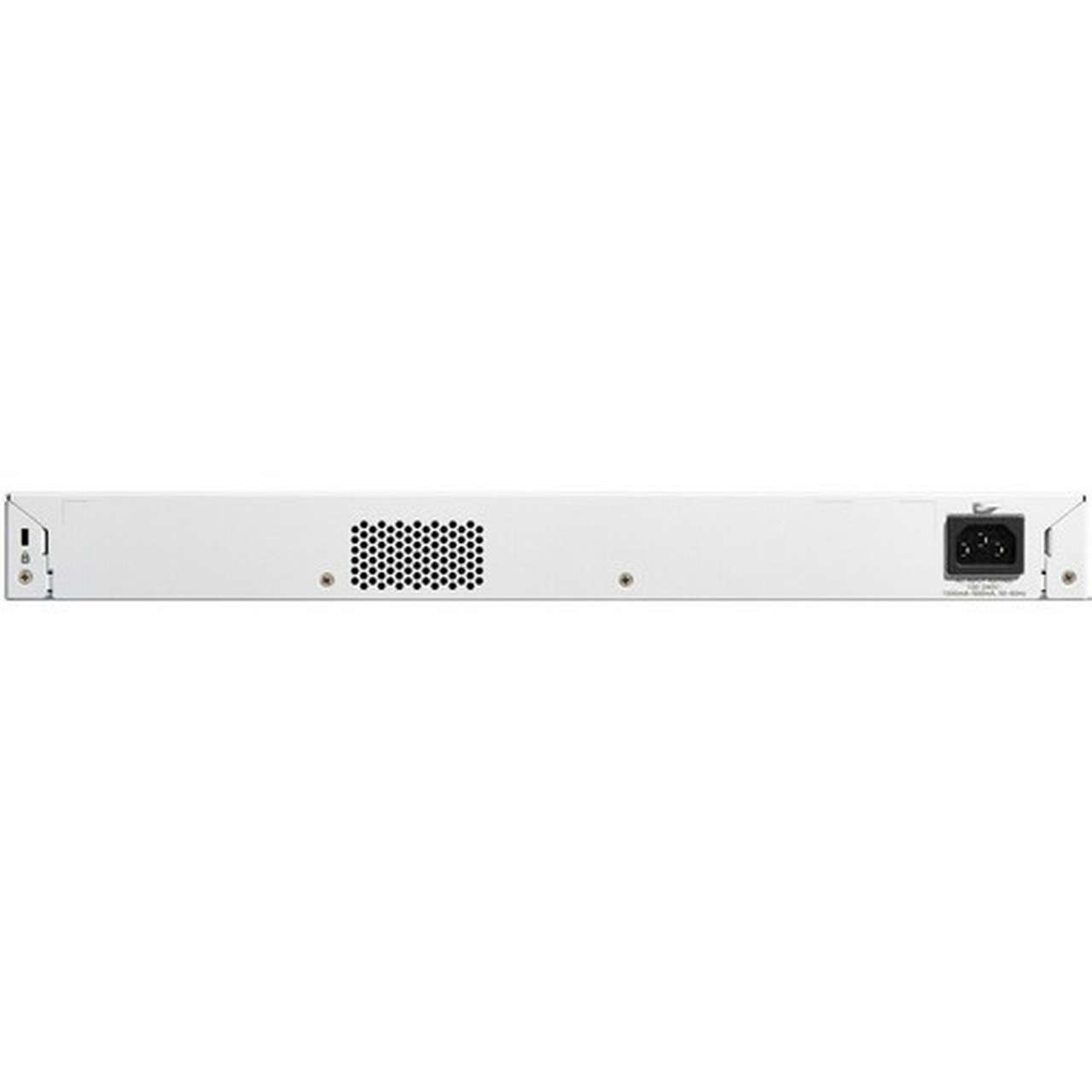

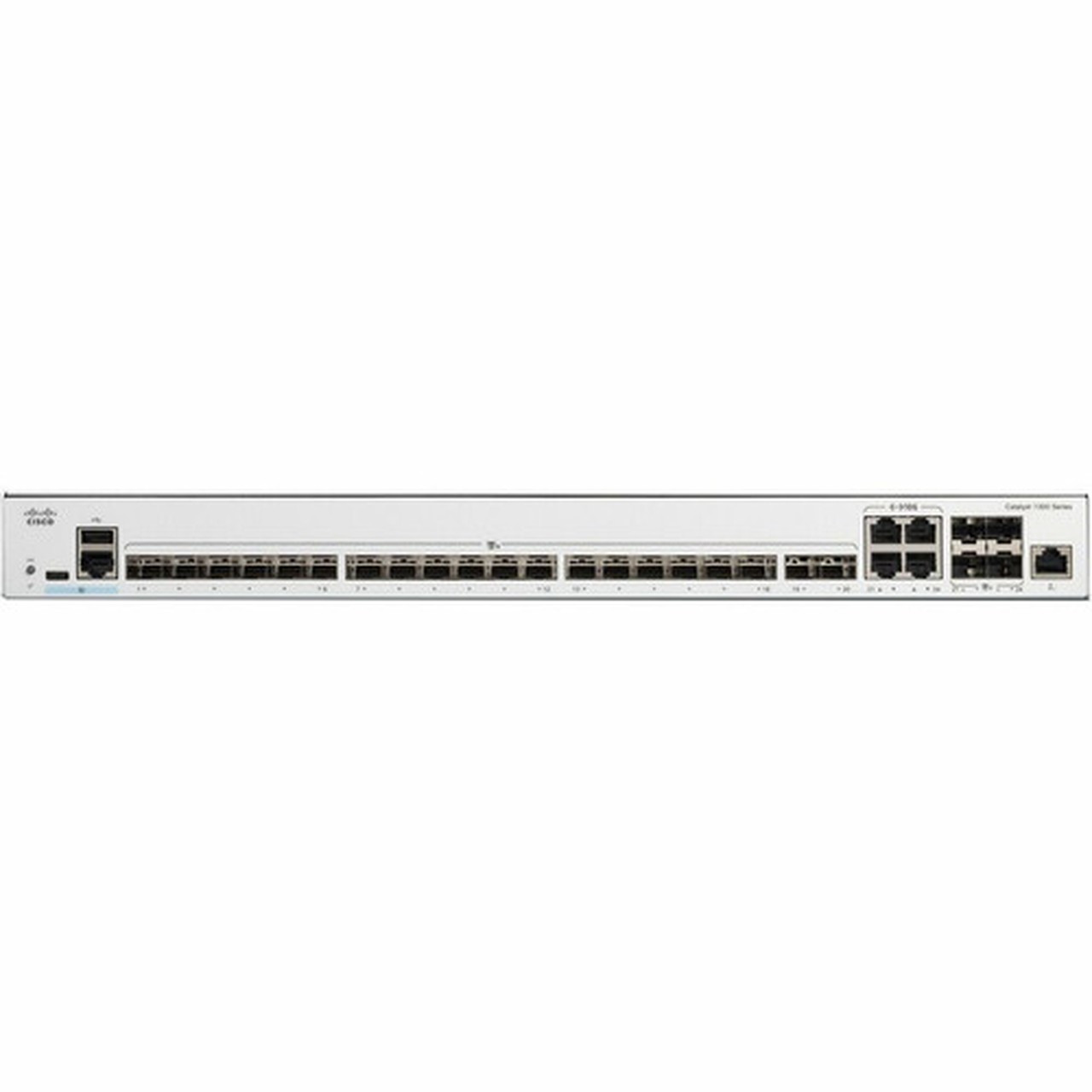

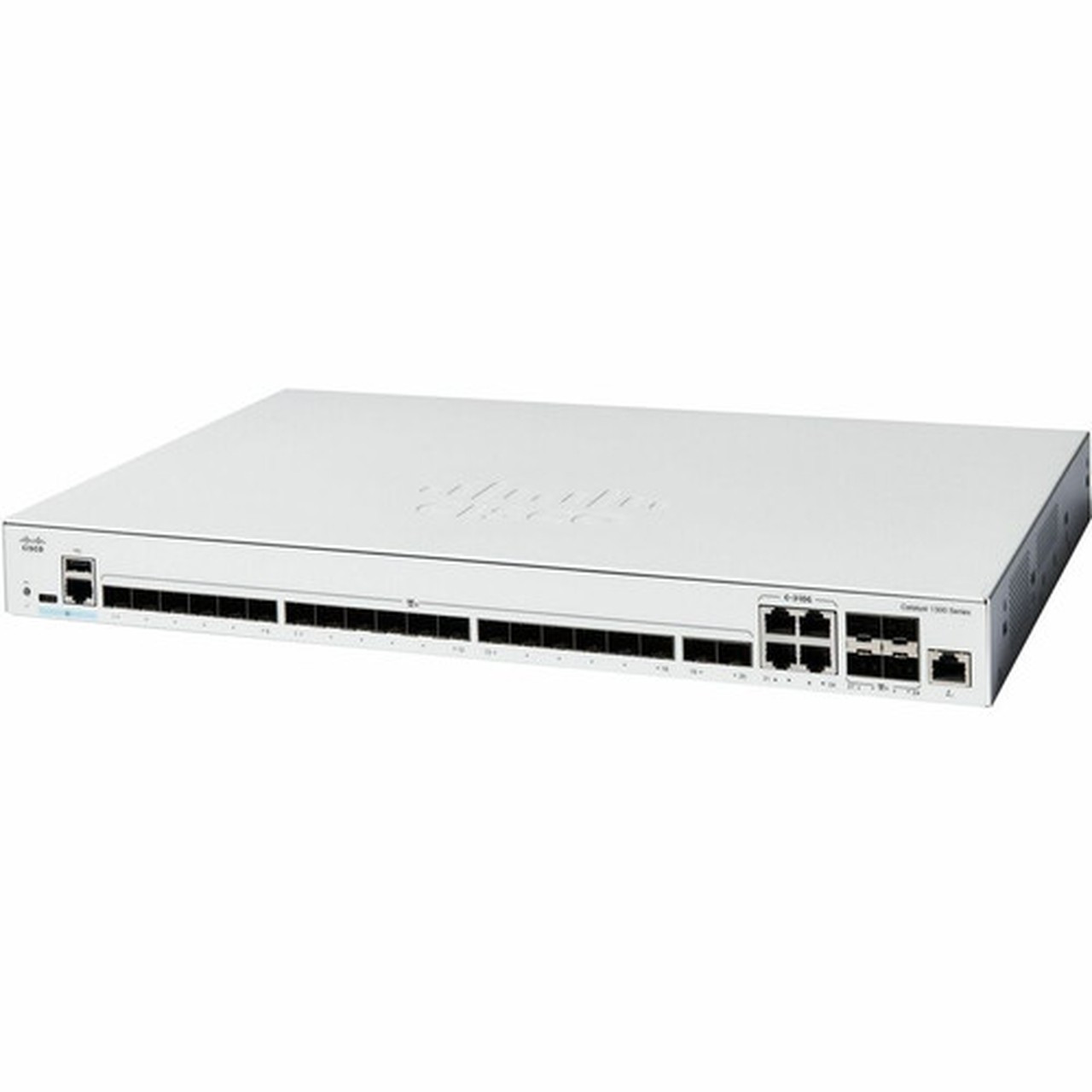

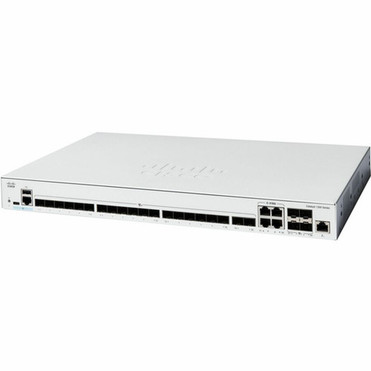

Cisco Catalyst 1300 C1300-24XS Layer 3 Switch - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10GBase-X, 1000Base-T - 3 Layer - (C1300-24XS)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Catalyst 1300 C1300-24XS Layer 3 Switch
- Power Cord (power adapter for select 8-port and 16-port SKUs)
- Mounting Kit
- Pointer Card
Features: Plug and Play,Hot-swappable
Uplink Port: Yes
Stack Port: Yes
Port/Expansion Slot Details: 20 x 10 Gigabit Ethernet SFP+ Expansion Slot,4 x 10 Gigabit Ethernet Combo Copper SFP+ Expansion Slot,1 x Gigabit Ethernet Management Port,1 x RJ-45 Console Port,1 x USB Type-C Management Port
Media Type Supported: Optical Fiber,Twisted Pair
Ethernet Technology: Gigabit Ethernet,10 Gigabit Ethernet
Network Technology: 10GBase-X,1000Base-T
Maximum Data Transfer Rate: 1.25 GB/s
Total Number of Expansion Slots: 24
Expansion Slot Type: SFP+
Number of SFP+ Slots: 24
Layer Supported: 3
Networking Standards: IEEE 802.1x,IEEE 802.3az,IEEE 802.3ad,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3x,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1s,IEEE 802.3af,IEEE 802.3at,IEEE 802.1ab
Manageable: Yes
Input Voltage: 120 V AC,230 V AC
Power Source: Power Supply
Power Consumption: 49.02 W
Product Color: White
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.73" (43.94 mm)
Width: 17.50" (444.50 mm)
Depth: 13.77" (349.76 mm)
Weight (Approximate): 9.15 lb (4150 g)
Package Contents:
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: Lifetime
- Cascade to other network devices through the uplink port to expand your local area network
- Stack port provides an easy and hassle-free way to extend your office network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Can work as layer 3 routing for scalable network design
- Rack mounting enables you to organize wires & secure cables for professional installation
- Managed switch provides a reliable foundation for your network
- Gigabit Ethernet port for ultra-fast network speeds
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
[custom-specifications]
| Specifications | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C1300-24XS |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 1300 |
| Product Model | C1300-24XS |
| Product Name | Catalyst 1300 C1300-24XS Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Technical Information | |
| Features | Plug and Play,Hot-swappable |
| Interfaces/Ports | |
| Uplink Port | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 20 x 10 Gigabit Ethernet SFP+ Expansion Slot,4 x 10 Gigabit Ethernet Combo Copper SFP+ Expansion Slot,1 x Gigabit Ethernet Management Port,1 x RJ-45 Console Port,1 x USB Type-C Management Port |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10GBase-X,1000Base-T |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 24 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 24 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x,IEEE 802.3az,IEEE 802.3ad,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3x,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1s,IEEE 802.3af,IEEE 802.3at,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Power Consumption | 49.02 W |
| Physical Characteristics | |
| Product Color | White |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 13.77" (349.76 mm) |
| Weight (Approximate) | 9.15 lb (4150 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-options]
| Product | Cisco 19-in. Rack-Mount Bracket for C1000, C1200, C1300 - For Switch, Rack |
| SKU | RCKMNT-CMPCT-1K= |
| Sale Price | $46.95 |
| Product | Cisco Smart Net Total Care - Service - 8 x 5 x Next Business Day - Exchange |
| SKU | CON-SNT-C13004XS |
| Sale Price | $453.95 |
[/custom-options]
