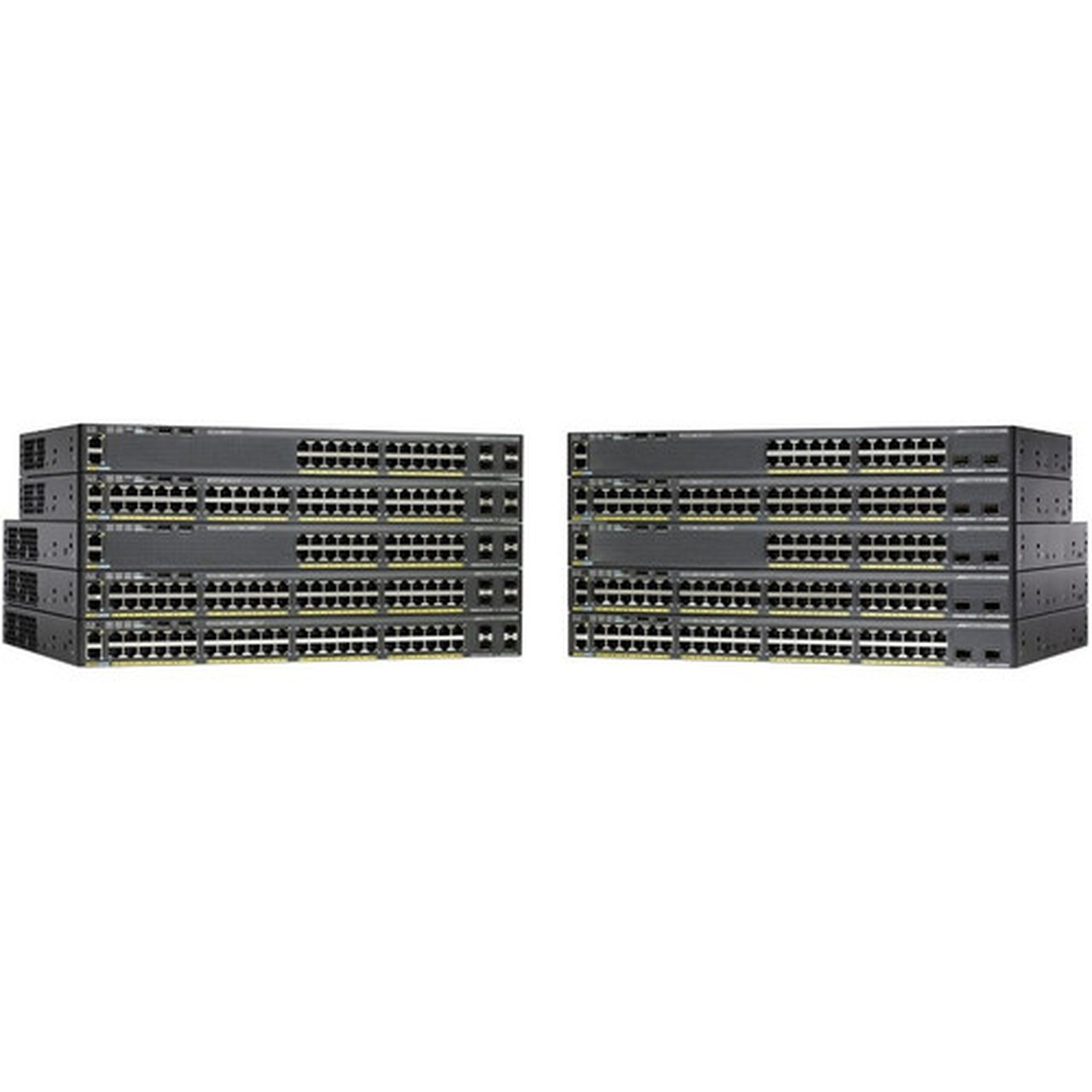

Cisco WS-C2960X48FPDL-RF Catalyst 2960X-48FPD-L 48-Port Gigabit Managed Layer 2 Switch - 2x SFP+ Uplinks - 1U Rack-Mountable - Refurbished
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Cisco switch operates at Layer 2 of the OSI model, providing switching capabilities that include VLAN support, QoS, and security features to optimize network traffic and protect against unauthorized access. It supports Gigabit Ethernet and 10 Gigabit Ethernet technologies, with media compatibility for twisted pair cables, ensuring broad interoperability with existing network infrastructure. The switch's 48 ports deliver 10/100/1000Base-T connectivity, making it suitable for connecting PCs, laptops, printers, and other peripherals in a local area network.
Expansion options include three total slots, with two dedicated to SFP+ modules for fiber or copper uplinks, and one shared SFP slot for additional flexibility. The switch features a built-in power supply with support for redundant power supplies, enhancing reliability in critical applications. Its manageable nature allows for remote configuration, monitoring, and troubleshooting via CLI or web interface, simplifying network administration.
Key Product Advantages
The Catalyst 2960X-48FPD-L offers significant advantages for network deployments requiring high port density, manageability, and future-proof connectivity. Its 48-port design reduces the need for multiple switches, simplifying cabling and lowering total cost of ownership. The inclusion of SFP+ uplink slots provides up to 10x faster connectivity than standard Ethernet, ideal for aggregating traffic to servers or core switches.
Enhanced Network Control
As a managed Layer 2 switch, it supports advanced features like port mirroring for network analysis, IGMP snooping for efficient multicast traffic handling, and spanning tree protocol for loop prevention, ensuring a stable and optimized network environment.
- IGMP Snooping
- Port Mirroring
- Spanning Tree Protocol
Reliable Power and Design
The switch includes a built-in power supply with support for redundant power supplies, minimizing downtime in power-sensitive scenarios. Its 1U rack-mountable form factor saves space in data centers, while the desktop option offers deployment flexibility for smaller setups.
- Redundant Power Support
- 1U Rack Design
- Desktop Compatible
Deployment / Use Cases
This switch is well-suited for a variety of networking scenarios, from office environments to industrial settings. In small to medium businesses, it can serve as a core access switch, connecting end-user devices and providing uplinks to routers or larger switches. For branch offices, its manageable features allow for centralized network management, ensuring consistent policies and security across distributed locations.
In educational institutions or healthcare facilities, the switch supports high-density connectivity for classrooms or patient rooms, with the SFP+ uplinks enabling fast data backhaul to central servers. Its lack of PoE ports makes it ideal for non-PoE deployments, such as connecting computers, printers, and servers, where power is supplied separately. The refurbished condition offers a cost-effective solution for organizations looking to upgrade their network infrastructure without compromising on Cisco's reliability and performance.
Office Network Hub
Deploy as a central switch in office environments to connect up to 48 devices, with SFP+ uplinks for high-speed connections to servers or internet gateways, enhancing overall network throughput.
- 48 Device Connectivity
- High-Speed Uplinks
- Managed Features
Data Center Edge
Use in data center edge deployments to aggregate traffic from access switches, leveraging the 10 Gigabit uplinks for efficient data transfer to core network layers, supported by redundant power for uptime.
- Traffic Aggregation
- 10G Uplinks
- Redundant Power
Physical Profile
The switch features a compact and durable design, with dimensions of 1.75" height, 17.50" width, and 14.50" depth, making it easy to install in standard 19-inch server racks as a 1U unit. Its weight of approximately 12.90 lb ensures stability while remaining manageable for installation. The rack-mountable form factor includes mounting hardware compatibility, and the desktop option allows for placement on shelves or in network closets, providing versatility for different spatial constraints. The environmentally friendly construction aligns with sustainable IT practices, reducing electronic waste.
- Width
- 17.50" (444.50 mm)
- Depth
- 14.50" (368.30 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 12.90 lb (5851.34 g)
Highlights
- 48 Gigabit Ethernet ports for high-density connectivity
- 2 SFP+ slots for 10 Gigabit Ethernet uplinks
- Layer 2 managed switch with advanced network features
- 1U rack-mountable design for space-efficient deployment
- Supports redundant power supplies for enhanced reliability
- Refurbished condition with lifetime warranty
- Environmentally friendly construction
- Compatible with twisted pair cabling up to 100 meters
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C2960X48FPDL-RF |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 2960-X |
| Product Model | 2960X-48FPD-L |
| Product Name | Catalyst 2960X-48FPD-L Ethernet Switch |
| Product Condition | Refurbished |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network,2 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Expansion Slot Type | SFP+,Stacking Module |
| Shared SFP Slot | Yes |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Desktop |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 14.50" (368.30 mm) |
| Weight (Approximate) | 12.90 lb (5851.34 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many ports does this Cisco switch have, and what are their speeds?
This Cisco Catalyst 2960X-48FPD-L switch has 48 Gigabit Ethernet ports, each supporting 10/100/1000Base-T speeds for flexible connectivity to devices like computers, printers, and servers. Additionally, it includes two SFP+ expansion slots for 10 Gigabit Ethernet uplinks, enabling faster backbone connections.
Is this switch manageable, and what Layer does it support?
Yes, this is a fully manageable Layer 2 switch. It supports advanced management features such as VLAN configuration, QoS, IGMP snooping, port mirroring, and spanning tree protocol, allowing for precise control over network traffic, security, and stability in business environments.
Does this switch support Power over Ethernet (PoE)?
No, this switch does not have PoE (RJ-45) ports. It is designed for non-PoE deployments where connected devices, such as computers or servers, receive power separately. This makes it suitable for environments where PoE is not required or is provided by other equipment.
What are the expansion options available on this switch?
The switch offers three expansion slots: two are dedicated to SFP+ modules for 10 Gigabit Ethernet uplinks, and one is a shared SFP slot. These slots allow for fiber or copper uplink connections, providing flexibility to adapt to different network topologies and future upgrades.
Can this switch be rack-mounted, and what are its physical dimensions?
Yes, this switch is rack-mountable in a standard 19-inch server rack as a 1U unit. Its dimensions are 1.75" height, 17.50" width, and 14.50" depth, with an approximate weight of 12.90 lb. It can also be used as a desktop switch, offering deployment versatility.
What warranty comes with this refurbished Cisco switch?
This refurbished Cisco Catalyst switch comes with a lifetime limited warranty, ensuring long-term reliability and support. The warranty covers defects in materials and workmanship, providing peace of mind for investment in network infrastructure.
