Cisco CS-BAR-T-C-K9 Webex Room Bar with Table-Stand Navigator - Carbon Color - 4K UHD 60fps Video Conference Equipment
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This video conference bar utilizes a CMOS image sensor for video capture and delivers content at 3840 x 2160 resolution (4K UHD) with a 60 fps frame rate to minimize motion blur. Video encoding includes H.263 and H.239, while audio encoding supports G.711, G.722, G.722.1, G.729, AAC-LD, and Opus for clear, wideband sound. Network connectivity is provided through a single Gigabit Ethernet port (10/100/1000Base-T), enabling high-speed data transfer for stable conference calls.
The device adheres to ITU-T recommendations H.460.18/19, H.264, and H.323, along with SIP, ensuring compatibility and enhanced performance in enterprise environments. Video bridging is point-to-point, suitable for direct calls between endpoints. Physical interfaces include one HDMI input for content sharing, two HDMI outputs for displaying content on multiple screens, one RJ-45 network port, and a USB port for peripherals.
Key Product Advantages
The Cisco Webex Room Bar offers a streamlined, all-in-one solution that reduces clutter and simplifies deployment in meeting spaces. Its integrated design combines high-performance video, audio, and control elements into a single device, eliminating the need for multiple separate components. This consolidation enhances reliability and reduces setup complexity.
Superior Video Quality
With 4K UHD resolution at 60 fps, the bar delivers sharp, fluid video for both participant feeds and content sharing, making details in presentations and remote attendees clearly visible.
- 3840 x 2160 content resolution
- 60 fps for smooth motion
- CMOS sensor for clear imaging
Flexible Mounting Options
Designed for both tabletop and wall mounting, the bar adapts to various room layouts. The slim profile (3.20" height) fits discreetly under displays or on walls without obstructing views.
- Wall mountable
- Tabletop ready
- Slim 2.50" depth
Comprehensive Connectivity
Equipped with HDMI inputs and outputs, Gigabit Ethernet, and USB, the bar connects easily to displays, networks, and peripherals, supporting a wide range of meeting room configurations.
- HDMI in/out for content
- Gigabit Ethernet for network
- USB for accessories
Deployment / Use Cases

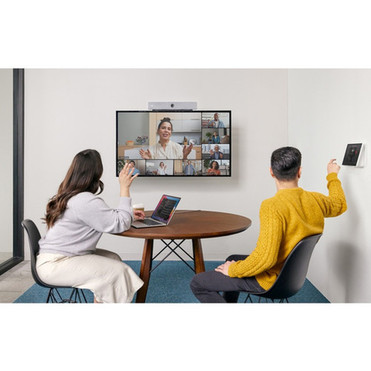

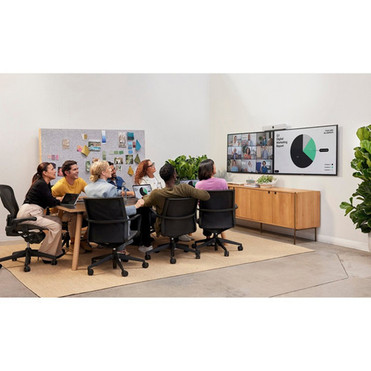

This Cisco Webex Room Bar is ideal for small to medium-sized meeting rooms, huddle spaces, and executive offices where professional video conferencing is required. Its compact size and included table-stand Navigator make it suitable for rooms where a permanent installation isn't feasible, allowing for quick setup on conference tables. The wall-mountable design also supports fixed installations in dedicated conference rooms or training areas.
Common use cases include daily team meetings, client presentations, remote collaboration sessions, and hybrid work environments. The point-to-point video bridging is effective for direct calls between offices, while support for H.323 and SIP enables integration with broader video conferencing systems and cloud platforms like Webex. The high-quality audio codecs ensure clear communication in acoustically treated rooms or spaces with moderate background noise.
Huddle Room Solution
Perfect for small collaboration spaces, the bar's all-in-one design and table-stand Navigator provide a complete video conferencing setup without complex wiring or multiple devices.
Executive Office Conferencing
With 4K video and premium audio, it delivers a high-end experience for important calls and presentations in private offices, supporting professional image and sound quality.
Physical Profile

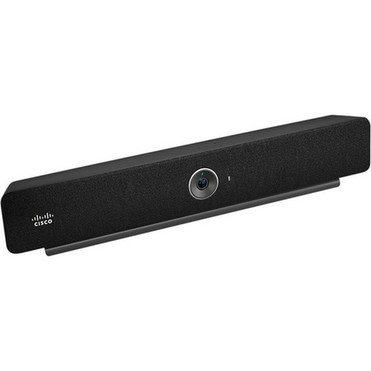

The Cisco Webex Room Bar features a sleek, low-profile design with dimensions of 3.20" in height, 21" in width, and 2.50" in depth (81.28 mm x 533.40 mm x 63.50 mm), making it unobtrusive when mounted under displays or on walls. Weighing approximately 3.30 lb (1496.85 g), it is lightweight yet sturdy for secure installation. The Carbon color offers a professional, neutral appearance that blends with modern office decor. The form factor supports both wall mounting and tabletop placement, providing flexibility for different room configurations and user preferences.
- Width
- 21" (533.40 mm)
- Depth
- 2.50" (63.50 mm)
- Height
- 3.20" (81.28 mm)
- Weight
- 3.30 lb (1496.85 g)
What's in the Box
The package includes all necessary components for immediate setup and use:
Highlights
- 4K UHD video resolution (3840 x 2160) at 60 fps for sharp, smooth content and participant video
- Includes table-stand Room Navigator for easy call and content control without a separate computer
- CMOS image sensor ensures high-quality video capture in various lighting conditions
- Gigabit Ethernet (10/100/1000Base-T) provides fast, reliable network connectivity for stable conferences
- Supports H.323, SIP, H.264, and ITU-T H.460.18/19 for broad interoperability with video systems
- Flexible mounting options: wall mountable or tabletop for adaptable room setups
- Multiple audio codecs including G.711, G.722, AAC-LD, and Opus for clear, wideband sound
- HDMI input and outputs (1 in, 2 out) enable easy content sharing and multi-display support
- Compact dimensions (3.20" H x 21" W x 2.50" D) fit discreetly in meeting spaces
- Package includes all cables, mount kit, and privacy cover for complete out-of-box readiness
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CS-BAR-T-C-K9 |
| Brand Name | Cisco |
| Product Line | Webex Room |
| Product Name | Webex Room Bar (Carbon Color) with table-stand Room Navigator |
| Product Type | Video Conference Equipment |
| Technical Information | |
| ITU-T Recommendation | H.460.18/19,H.264,H.323,SIP |
| Video Bridging | Point-to-Point |
| Camera | |
| Image Sensor Type | CMOS |
| Video | |
| Graphics Modes (Content) | 4K UHD |
| Maximum Video Resolution (Content) | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Video Encoding | H.263,H.239 |
| Audio | |
| Audio Encoding | G.711,G.722,G.722.1,G.729,AAC-LD,Opus |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 2 |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Tabletop |
| Height | 3.20" (81.28 mm) |
| Width | 21" (533.40 mm) |
| Depth | 2.50" (63.50 mm) |
| Weight (Approximate) | 3.30 lb (1496.85 g) |
| Miscellaneous | |
| Package Contents | Webex Room Navigator Table-Stand Cable HDMI 2.0 Grey, 1.5m Room Bar and Power Adapter Network Cable Round 5m HDMI Cable 1.5m Screen & Wall Mount Kit Privacy Cover |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 90 Day |
User Manual
FAQ
What video resolution does this Cisco Webex Room Bar support?
The Cisco Webex Room Bar supports a maximum video resolution of 3840 x 2160, which is 4K Ultra HD (UHD). This high resolution applies to content sharing, such as presentations or screen sharing, ensuring detailed and crisp visuals during video conferences. Combined with a 60 frames per second frame rate, it delivers smooth motion and reduces blur, enhancing the overall viewing experience for both local and remote participants.
Does this unit include a camera and microphone?
Yes, the Cisco Webex Room Bar is an all-in-one video conference equipment that integrates a camera with a CMOS image sensor for video capture. While specific microphone and speaker details aren't listed in product details, the device is designed as a complete conferencing solution, typically including built-in audio components. The audio encoding support for codecs like G.711, G.722, and Opus indicates it handles audio processing for clear communication during calls.
How can I mount the Cisco Webex Room Bar?
The Cisco Webex Room Bar offers flexible mounting options: it is both wall mountable and suitable for tabletop use. The form factor is designed for discreet placement, with a slim profile of 3.20" in height, making it ideal for mounting under displays or on walls without obstruction. The package includes a screen and wall mount kit, providing the necessary hardware for secure installation in various room configurations to fit your meeting space needs.
What network connectivity does the Webex Room Bar have?
The Webex Room Bar features Gigabit Ethernet connectivity through a single RJ-45 port that supports 10/100/1000Base-T network technology. This allows for data transfer rates up to 1000 Mbps, ensuring high-speed and reliable network performance for video conferencing. The Ethernet connection facilitates stable call quality, reduces latency, and supports protocols like H.323 and SIP for seamless integration with enterprise networks and cloud-based collaboration platforms.
What is included in the package with the Webex Room Bar?
The package includes the Webex Room Bar device, a Room Navigator with a table-stand for control, a power adapter, an HDMI 2.0 Grey cable (1.5m), a network cable (round, 5m), an HDMI cable (1.5m), a screen and wall mount kit, and a privacy cover. These components provide everything needed for immediate setup, whether for tabletop use or wall mounting, ensuring a complete out-of-box experience without requiring additional purchases for basic installation.
What video conferencing protocols does this device support?
This Cisco Webex Room Bar supports industry-standard video conferencing protocols including H.323, SIP (Session Initiation Protocol), H.264 for video encoding, and ITU-T recommendations H.460.18/19 for enhanced performance. This protocol support ensures interoperability with a wide range of video systems, from legacy on-premises infrastructure to modern cloud-based services like Webex, enabling flexible deployment in diverse IT environments and facilitating calls across different platforms.
