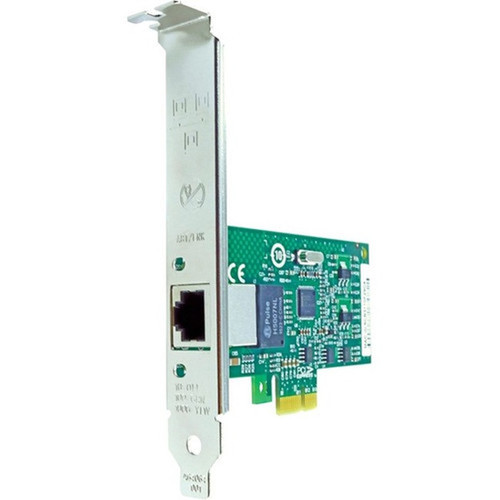

Axiom CN-GP1021-S3-AX PCIe x1 Gigabit Ethernet Card - 10/100/1000Base-T Single Port RJ45 NIC for SIIG
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network adapter implements full Gigabit Ethernet performance with a maximum data transfer rate of 1000 Mbps over standard twisted pair cabling. The PCIe x1 host interface provides sufficient bandwidth for the NIC's throughput while maintaining backward compatibility with PCIe 1.1 specifications.
The card's physical design emphasizes server deployment practicality with a low-profile form factor that minimizes chassis space consumption. The single RJ45 port supports standard Ethernet cables up to 100 meters in length, making it suitable for both rack-mounted and tower server configurations.
Relevant factors for this section include Host Interface, Total Number of Ports, Number of Network (RJ-45) Ports, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The CN-GP1021-S3-AX delivers essential network expansion capabilities with a focus on reliability and straightforward deployment. Its dedicated hardware design offloads network processing from the main system CPU, improving overall server performance during high network traffic periods.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Performance Consistency, Deployment Simplicity.
Performance Consistency
Maintains stable Gigabit Ethernet speeds even under sustained data transfer loads, ensuring consistent network performance for server applications.
- Dedicated network controller
- Full-duplex operation
- Jumbo frame support
Deployment Simplicity
The plug-and-play design requires minimal configuration, with automatic detection and driver installation in most server operating systems.
- Standard PCIe interface
- Universal driver support
- No external power required
Deployment / Use Cases
This Gigabit Ethernet card serves as an ideal solution for server environments requiring additional network interfaces or dedicated network segmentation. The single-port design makes it particularly suitable for applications where a separate management network, backup network, or isolated traffic path is necessary.
Common deployment scenarios include adding secondary network interfaces to virtualization hosts, creating dedicated storage network connections for NAS or SAN systems, or providing failover network capabilities in high-availability server configurations. The server designation indicates optimized performance and reliability for continuous operation environments.
Server Network Expansion
Adds dedicated Gigabit Ethernet ports to servers with limited onboard networking or for creating isolated network segments.
Infrastructure Upgrades
Provides modern Gigabit Ethernet connectivity to older servers still running Fast Ethernet (10/100 Mbps) interfaces.
Physical Profile
The compact dimensions of 3.94 inches in height, 0.55 inches in width, and 2.17 inches in depth allow installation in standard server chassis with available PCIe x1 slots. The lightweight design at approximately 1.44 ounces minimizes mechanical stress on the motherboard while the plug-in card form factor ensures secure mounting with standard retention mechanisms.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.94" (100 mm), 0.55" (14 mm), 2.17" (55 mm), 1.44 oz (40.82 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 0.55" (14 mm)
- Depth
- 2.17" (55 mm)
- Height
- 3.94" (100 mm)
- Weight
- 1.44 oz (40.82 g)
Highlights
- Gigabit Ethernet performance with 10/100/1000Base-T auto-negotiation
- PCI Express 1.1 x1 host interface for broad server compatibility
- Single RJ45 port supporting twisted pair cabling up to 100 meters
- Compact plug-in card form factor for space-efficient server deployment
- Dedicated network controller for reliable server-grade operation
- Server-optimized design for continuous operation environments
- Standard PCIe interface requiring no external power connection
- Three-year limited warranty for long-term deployment confidence
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | CN-GP1021-S3-AX |
| Brand Name | Axiom |
| Product Name | PCIe x1 1Gbs Single Port Copper Network Adapter for SIIG |
| Product Type | Gigabit Ethernet Card |
| Interfaces/Ports | |
| Host Interface | PCI Express 1.1 x1 |
| Total Number of Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 3.94" (100 mm) |
| Width | 0.55" (14 mm) |
| Depth | 2.17" (55 mm) |
| Weight (Approximate) | 1.44 oz (40.82 g) |
| Miscellaneous | |
| Device Supported | Server |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What type of network interface does this Axiom card provide?
This Axiom CN-GP1021-S3-AX provides a Gigabit Ethernet network interface with 10/100/1000Base-T auto-negotiation capabilities. It delivers up to 1000 Mbps data transfer rates over standard twisted pair copper cabling, making it suitable for modern server network infrastructure requiring full Gigabit performance.
What server compatibility does this PCIe network card offer?
The card uses a PCI Express 1.1 x1 interface, which provides compatibility with most server motherboards featuring PCIe slots. This interface standard ensures broad hardware support while delivering sufficient bandwidth for Gigabit Ethernet throughput. The plug-in card form factor fits standard server chassis with available PCIe x1 slots.
How many network ports does this adapter include?
This network interface card includes a single RJ45 Ethernet port. The dedicated single-port design makes it ideal for applications requiring additional network interfaces for segmentation, management networks, or failover configurations without the complexity of multi-port adapters.
What type of cabling does this Gigabit Ethernet card support?
The card supports standard twisted pair copper Ethernet cabling (Category 5e, 6, or higher) with RJ45 connectors. It maintains reliable connections at distances up to 100 meters, which is the standard maximum distance for Ethernet over twisted pair in most network deployments.
What are the physical dimensions of this network adapter?
The adapter measures 3.94 inches in height, 0.55 inches in width, and 2.17 inches in depth (100 × 14 × 55 mm). This compact form factor allows installation in standard server chassis while the lightweight design at approximately 1.44 ounces minimizes mechanical stress on the motherboard.
What warranty coverage does Axiom provide for this network card?
Axiom provides a three-year limited warranty for the CN-GP1021-S3-AX Gigabit Ethernet card. This warranty period supports long-term deployment in server environments where continuous operation and reliability are essential for business infrastructure.
