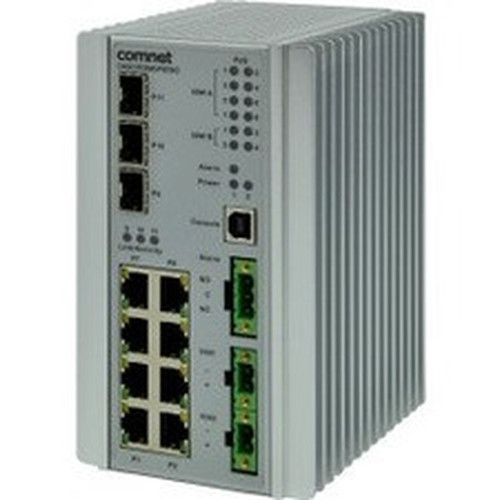

ComNet CNGE3FE8MSPOE Modular Ethernet Switch - 11 Ports - 8 PoE+ - 3 Gigabit - Layer 3 Managed - 3 SFP Slots - DIN Rail/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3, providing advanced routing capabilities such as inter-VLAN routing and static routing, which enhance network segmentation and traffic management. It supports Gigabit Ethernet and Fast Ethernet technologies, with media types including optical fiber and twisted pair, ensuring compatibility with existing infrastructure and high-speed backbone links.
The switch features a redundant power supply support system, increasing reliability in critical applications by allowing backup power configurations. Environmental compliance with RoHS and WEEE directives underscores its eco-friendly design, while a lifetime limited warranty from the United States offers long-term assurance.
Relevant factors for this section include Total Number of Network Ports, Modular, Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The CNGE3FE8MSPOE delivers a balanced mix of port density, power over Ethernet, and uplink flexibility, making it ideal for expanding network connections in conference rooms, labs, lobbies, and department workgroups. Its manageable nature allows for precise control over network traffic, security policies, and performance tuning.
Enhanced Connectivity
With 8 PoE+ ports, the switch powers devices like IP cameras, VoIP phones, and wireless access points directly, reducing cabling complexity and installation costs.
- Supports up to 8 PoE+ devices
- Eliminates need for separate power injectors
- Simplifies network deployments
Future-Proof Expansion
Three SFP slots enable fiber optic connections for long-distance links or high-bandwidth uplinks, ensuring the network can scale with growing demands.
- Adds fiber uplink capability
- Extends network reach beyond copper limits
- Supports mixed media environments
Deployment / Use Cases
This switch is well-suited for environments requiring reliable, managed switching with PoE support and expansion options. Its DIN rail mounting makes it a natural fit for industrial automation, building management systems, and security installations where equipment is housed in standardized enclosures.
In commercial settings, the wall-mountable design allows for discreet placement in offices, retail spaces, or educational facilities, providing localized network aggregation with PoE for connected devices. The Layer 3 capabilities enable more complex network architectures, such as segmenting traffic between departments or integrating with larger enterprise networks.
Industrial Networking
Deploy in manufacturing plants or utility sites to connect sensors, controllers, and HMIs with PoE and fiber redundancy for harsh environments.
- DIN rail mounting for control cabinets
- Supports industrial protocols
- Redundant power for uptime
Small Business Backbone
Use as a core switch in small offices to manage traffic between workgroups, servers, and internet uplinks with advanced routing features.
- Layer 3 routing for network segmentation
- Gigabit ports for server connections
- Manageable for IT control
Physical Profile
The switch measures 6" H x 3.50" W x 4.50" D and weighs approximately 2.60 lb, offering a compact footprint that conserves space in rack or wall installations. Its durable construction supports DIN rail or wall mounting, providing versatile placement options in tight spaces like server rooms, closets, or industrial panels.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6" (152.40 mm), 3.50" (88.90 mm), 4.50" (114.30 mm), 2.60 lb (1179.340162 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.50" (88.90 mm)
- Depth
- 4.50" (114.30 mm)
- Height
- 6" (152.40 mm)
- Weight
- 2.60 lb (1179.340162 g)
Highlights
- 11 total network ports with 8 Fast Ethernet PoE+ and 3 Gigabit Ethernet slots
- Layer 3 manageable switching for advanced routing and traffic control
- Three SFP expansion slots support optical fiber or twisted pair media
- Modular design allows flexible network expansion and uplink configurations
- DIN rail and wall mountable form factor for space-efficient installations
- Redundant power supply support enhances reliability in critical applications
- Environmental compliance with RoHS and WEEE directives
- Lifetime limited warranty for long-term peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | ACRE |
| Manufacturer Part Number | CNGE3FE8MSPOE |
| Brand Name | ComNet |
| Product Series | CNGE3FE8MS |
| Product Name | CNGE3FE8MS Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 11 |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Fast Ethernet PoE+,3 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,Fast Ethernet |
| Network Technology | 10/100Base-TX,100/1000Base-FX |
| I/O Expansions | |
| Total Number of Expansion Slots | 3.0 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 3 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Adapter |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable,Wall Mountable |
| Height | 6" (152.40 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 4.50" (114.30 mm) |
| Weight (Approximate) | 2.60 lb (1179.340162 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many PoE+ ports does this switch have?
The ComNet CNGE3FE8MSPOE includes 8 Fast Ethernet PoE+ ports. These ports deliver both data and power over a single Ethernet cable, simplifying the deployment of powered devices like IP cameras, wireless access points, and VoIP phones without needing separate power sources.
What is Layer 3 switching, and why is it important?
Layer 3 switching refers to the switch's ability to perform routing functions at the network layer, such as inter-VLAN routing and static routing. This allows for better traffic segmentation, improved network performance, and enhanced security by controlling how data moves between different subnets or VLANs within a network.
Can I use fiber optic connections with this switch?
Yes, this switch supports fiber optic connections through its three SFP slots. You can insert SFP modules to connect via optical fiber for longer distances or higher bandwidth, making it suitable for uplinks to other switches or connections in environments where copper cabling is impractical.
What mounting options are available for this switch?
The switch is designed for DIN rail mounting, which is common in industrial and control cabinet installations, as well as wall mounting for commercial or office settings. This flexibility allows it to be installed in various environments, from factory floors to network closets, without requiring a standard rack.
Does this switch support redundant power supplies?
Yes, the ComNet CNGE3FE8MSPOE supports redundant power supplies. This feature allows you to connect a backup power source, increasing reliability and uptime in critical applications by ensuring the switch remains operational if the primary power adapter fails.
What is the warranty on this Ethernet switch?
This switch comes with a lifetime limited warranty. This warranty provides long-term coverage for defects in materials or workmanship, offering assurance for investments in network infrastructure and reducing total cost of ownership over time.
