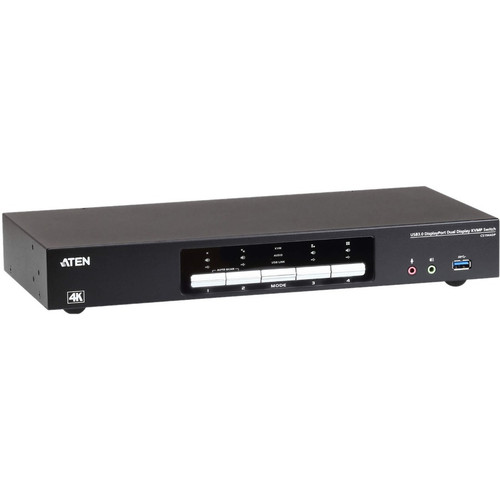

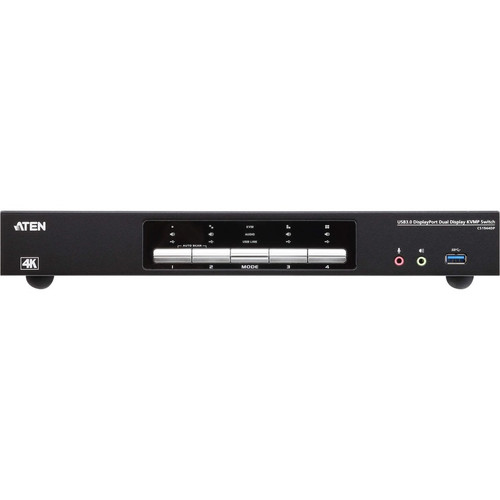

ATEN 4 Port USB 3.0 4K DisplayPort Dual Display KVMP Switch Computer 1 Local User Network RJ45 RJ-45 S X CS1944DP
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Description

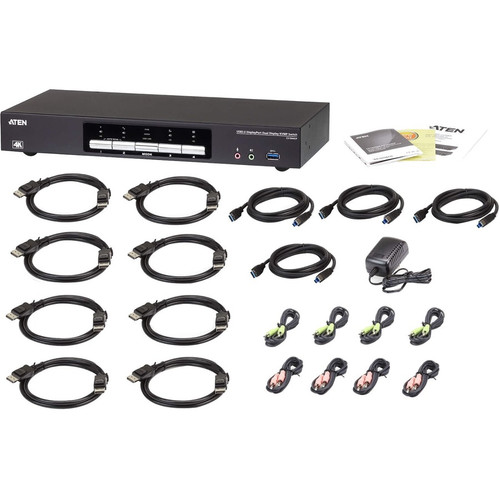

- 4-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch
- 8 x DisplayPort 1.2 Cables
- 4 x USB 3.0 Cables
- 8 x Audio Cables
- 1 x Power Adapter
- 1 x User Instructions
Number of Computers Supported: 4
Number of Local Users Supported: 1
Maximum Video Resolution: 4096 x 2160
Network (RJ-45): Yes
USB: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of USB Ports: 8
Number of DisplayPorts: 10
Form Factor: Desktop
Height: 1.73" (44 mm)
Width: 6.17" (156.60 mm)
Depth: 13.19" (335 mm)
Weight (Approximate): 3.33 lb (1510 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
- One USB keyboard and mouse controls two/four DisplayPort computers and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM switches
- Supports superior video quality - Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
- Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
- 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports DisplayPort Dual-Mode technology (DP++)*
- Supports MST (Multi-Stream Transport)**
- Supports Console keyboard emulation / bypass feature
- Supports Console mouse emulation / bypass feature
- Independent switching of KVM, USB, and Audio
[custom-specifications]
| Specifications | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CS1944DP |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Series | SOHO |
| Product Model | CS1944DP |
| Product Name | 4-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 8 |
| Number of DisplayPorts | 10 |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.73" (44 mm) |
| Width | 6.17" (156.60 mm) |
| Depth | 13.19" (335 mm) |
| Weight (Approximate) | 3.33 lb (1510 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
