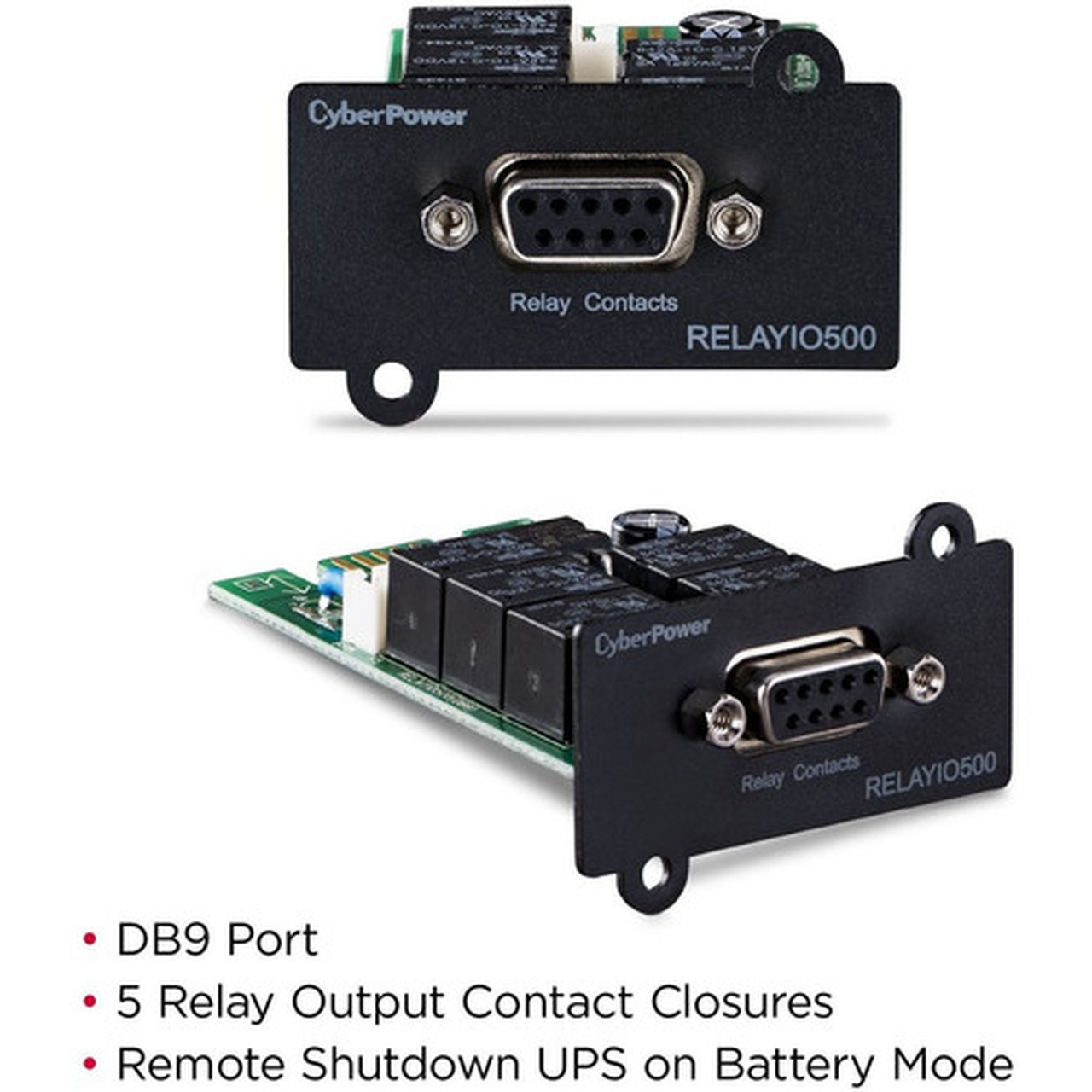

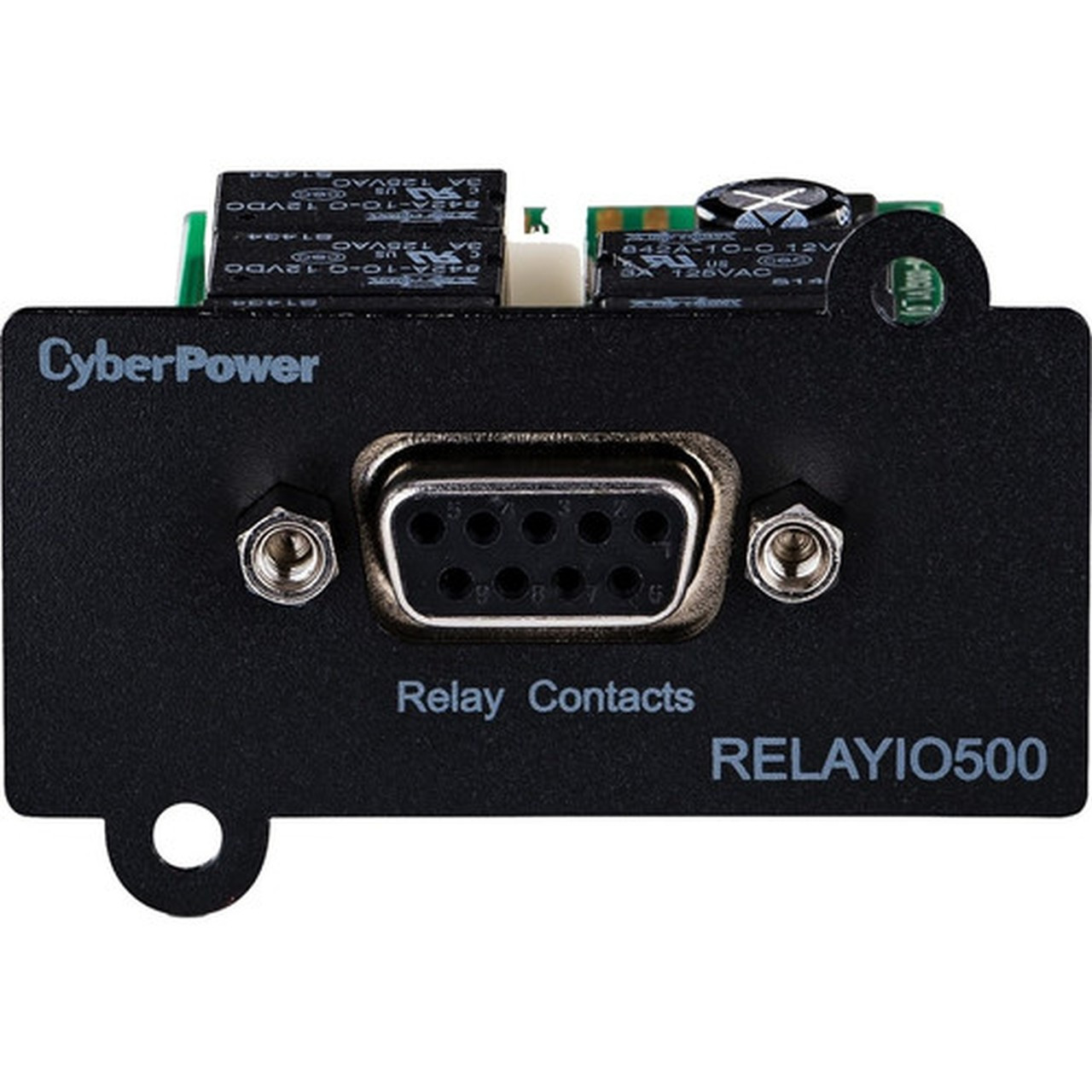

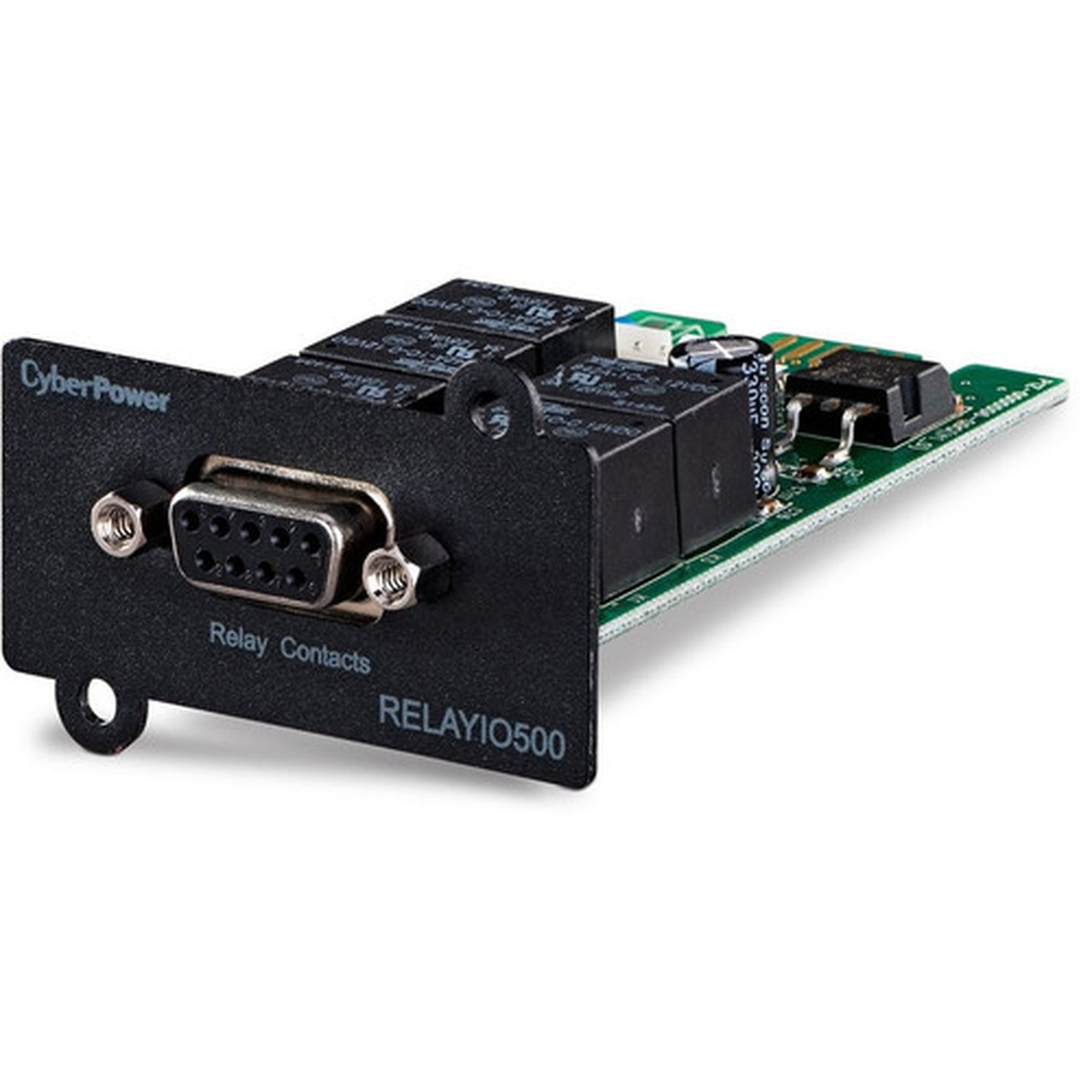

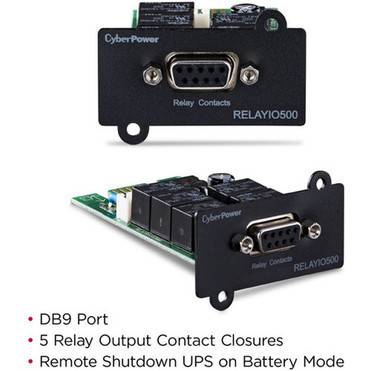

CyberPower RELAYIO500 Remote Power Management Adapter - Mini Slot - Serial (RELAYIO500)

Marketing Information: The CyberPower RELAYIO500 is a local management solution that provides users the ability to monitor UPS status and events via 5 contact closure outputs. Easy to install in any compatible CyberPower Smart App UPS with expansion slot.
Input contact closure allows the UPS to be shutdown remotely while on Battery Mode to preserver battery power in the event of a prolonged power outage.

• RELAYIO500 Network Management Card - provides users with the ability to monitor and locally manage UPS status and event information via 5 contact closure outputs
• HOT-SWAPPABLE
• REMOTE SHUTDOWN IN BATTERY MODE: Preserves battery power in the event of a prolonged power outage
• INTERFACING WITH EXTERNAL ALARMS: External alarm devices can be interfaced via the DB9 port

Proprietary Slot Type: Mini Slot

Serial: Yes

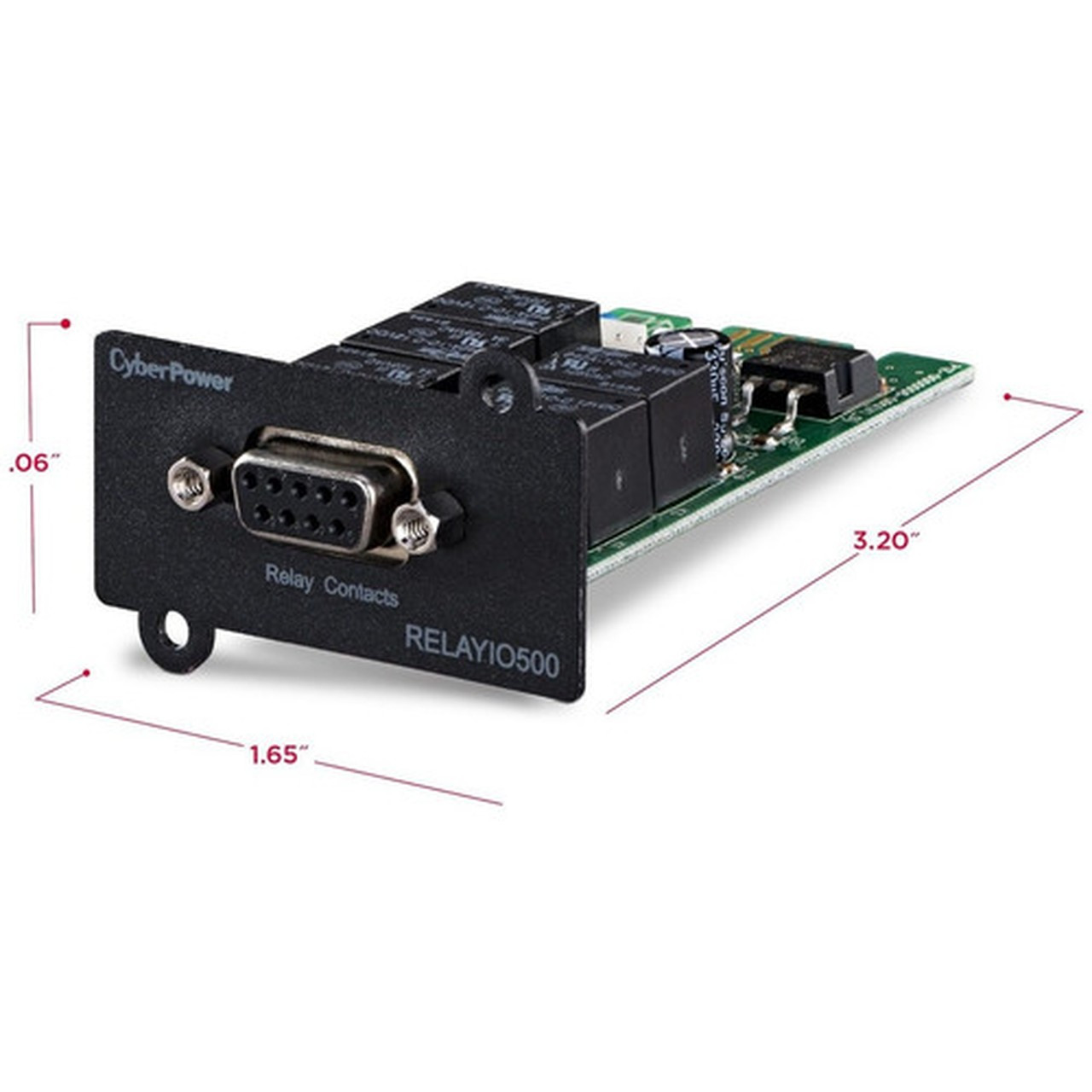

Height: 0.60" (15.24 mm)

Width: 1.65" (41.91 mm)

Depth: 3.20" (81.28 mm)

Weight (Approximate): 49.9 g

Package Contents:

• RELAYIO500 Remote Power Management Adapter
• Quick Reference Manual

Compatibility:

• All OR Series UPS Systems
• All PR Series UPS Systems
• OL1000RTXL2U
• OL1500RTXL2U
• OL1500RTXL2UN
• OL3000RTXL2UHV
• OL2200RTXL2U

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
