CyberPower OL10KRTHD Smart App Online UPS - 10000VA/10000W Double-Conversion - Rack/Tower - Hardwire - Sine Wave - LCD - 6 Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on double-conversion online topology, the OL10KRTHD continuously conditions incoming power, eliminating transfer delays and providing isolation from utility power anomalies. The unit maintains 98% efficiency in normal operation with ECO mode available for additional energy savings.
Advanced power management includes SNMP/HTTP remote monitoring, USB and serial communication ports, and EPO (Emergency Power Off) capability. The integrated EMI/RFI noise filter and surge protection rated at 2430 joules safeguard connected equipment from electrical disturbances.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This UPS delivers enterprise-grade power protection with features specifically designed for IT and industrial environments. The combination of high capacity, zero transfer time, and comprehensive management tools ensures maximum uptime for critical systems.
High-Density Design
The 4U rack-mountable form factor maximizes power density in limited space while maintaining adequate airflow for thermal management.
- 6.81" height fits standard racks
- 156.99 lb weight for stability
- 2025 BTU/h thermal dissipation
Advanced Battery System
Sixteen sealed lead-acid batteries provide reliable backup power with automatic testing and monitoring capabilities.
- 9000 mAh total capacity
- Non-replaceable battery design
- Wide operating temperature range
Comprehensive Protection
Multiple protection layers safeguard connected equipment from various power quality issues.
- Backfeed and short circuit protection
- Input power factor correction (0.99)
- Configurable output voltage adjustment
Deployment / Use Cases
The OL10KRTHD is engineered for environments requiring reliable power conditioning and backup. Its hardwired input configuration and industrial-grade outlets make it suitable for permanent installations where plug-and-play convenience is secondary to secure connections.
Typical applications include server racks supporting virtualization clusters, network operation centers with multiple switches and routers, and industrial control systems where power quality directly impacts operational safety and precision.
Data Center Rack Deployment
Mount in standard 19" racks to protect server blades, storage arrays, and networking equipment with clean, regulated power during utility fluctuations.
- 4U rack space optimization
- NEMA L6 outlets for PDU integration
- SNMP management for DCIM integration
Industrial Control Systems
Provide isolated power for PLCs, HMIs, and instrumentation in manufacturing and process control environments where voltage sags can disrupt operations.
- Wide input voltage range
- Sine wave output for motor drives
- EPO port for emergency shutdown
Physical Profile

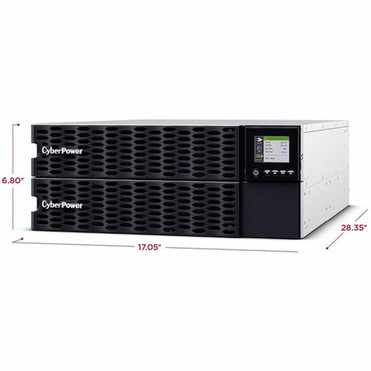

The UPS features a rugged steel enclosure designed for both rack-mount and tower deployment. With dimensions of 6.81" H × 17.05" W × 28.35" D (173 × 433 × 720 mm), it occupies 4U of rack space while providing substantial battery capacity. The unit weighs 156.99 lb (71.21 kg) and includes integrated handles for installation assistance.
- Width
- 17.05" (433 mm)
- Depth
- 28.35" (720 mm)
- Height
- 6.81" (173 mm)
- Weight
- 66 dB(A)
Highlights
- 10000VA/10000W double-conversion online UPS
- Rack/tower form factor with 4U rack-mount height
- Hardwired input with NEMA L6-20R and L6-30R outlets
- Pure sine wave output with zero transfer time
- LCD display for system status and configuration
- SNMP/HTTP remote monitoring and management
- PowerPanel Business Edition software included
- 98% efficiency with ECO mode capability
- 3-year limited warranty
- Energy Star certified and RoHS compliant
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL10KRTHD |
| Brand Name | CyberPower |
| Product Line | Smart App Online |
| Product Model | OL10KRTHD |
| Product Name | OL10KRTHD Smart App Online UPS Systems |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | NEMA L6-20R,NEMA L6-30R,Hardwired |
| Receptacle Detail | 4 x NEMA L6-20R,2 x NEMA L6-30R |
| Transfer Time | 0 ns |
| Protection Type | Backfeed,Short Circuit |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >98% |
| Circuit Breaker Current Rating | 70 A |
| Efficiency | 98% |
| Power Description | |
| Load Capacity (VA) | 10 kVA |
| Load Capacity (Watt) | 10 kW |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 120 V AC - 139 V AC,200 V AC - 240 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Input Frequency | 50 Hz,60 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Input Power Factor | 0.99 |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On (White) |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 16 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 2.40 Minute |
| Backup/Run Time (Half Load) | 8.30 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | No |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 66 dB(A) |
| Thermal Dissipation | 2025 BTU/h |
| Physical Characteristics | |

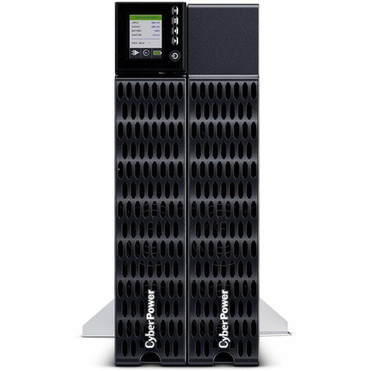

| Form Factor | Rack/Tower |
| Height | 6.81" (173 mm) |
| Width | 17.05" (433 mm) |
| Depth | 28.35" (720 mm) |
| Weight (Approximate) | 156.99 lb (71210 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The CyberPower OL10KRTHD provides 10000VA (10 kVA) and 10000W (10 kW) of power capacity. This substantial capacity supports multiple servers, networking equipment, or industrial devices simultaneously while maintaining clean sine wave output through its double-conversion topology.
How long will this UPS run on battery power?
At full 10000W load, the UPS provides approximately 2.4 minutes of runtime. At half load (5000W), runtime extends to approximately 8.3 minutes. These figures represent typical performance with the integrated 16-cell sealed lead-acid battery system, which requires about 4 hours to fully recharge after a complete discharge.
What type of outlets does this UPS have?
The unit features six industrial-grade outlets: four NEMA L6-20R receptacles and two NEMA L6-30R receptacles. These twist-lock connectors provide secure connections for power distribution units or directly connected equipment. The UPS also supports hardwired input connections for permanent installations.
Can this UPS be mounted in a server rack?
Yes, the OL10KRTHD is designed for both rack-mount and tower deployment. In rack configuration, it occupies 4U (6.81 inches) of vertical space in a standard 19-inch rack. The unit includes appropriate mounting hardware and has dimensions optimized for rack environments while maintaining adequate airflow for cooling.
What management features are available?
Management capabilities include SNMP/HTTP remote monitoring for integration with network management systems, USB and serial communication ports for local configuration, and an EPO (Emergency Power Off) port for safety shutdowns. The included PowerPanel Business Edition software provides detailed monitoring, configuration, and alerting functionality.
What is the warranty period for this UPS?
CyberPower provides a 3-year limited warranty for the OL10KRTHD UPS. This coverage includes protection against defects in materials and workmanship. The unit also carries Energy Star certification and complies with RoHS (Restriction of Hazardous Substances) environmental standards.
What power capacity is listed for this UPS?
The listed power specification is 10 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
