CyberPower PR1500LCD Smart App Sinewave UPS - 1500VA/1500W Line-Interactive - 8 Outlets - 120V - Mini-Tower - LCD - 3-Year Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The CyberPower PR1500LCD Smart App Sinewave UPS is a line-interactive uninterruptible power supply engineered for critical business infrastructure protection. With 1500VA/1500W capacity and pure sine wave output, this unit delivers clean, stable backup power for sensitive electronic equipment during power disturbances, outages, and brownouts.

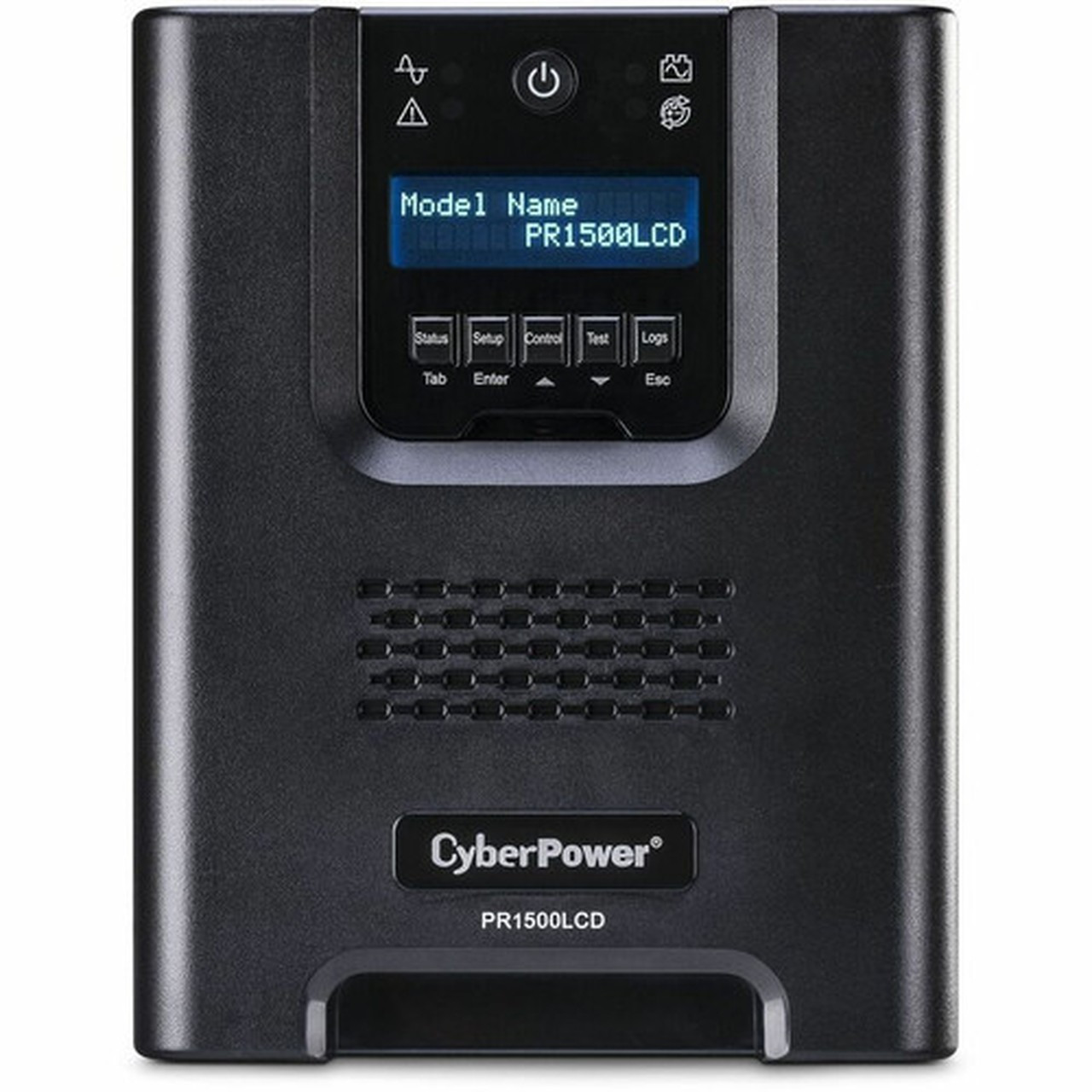

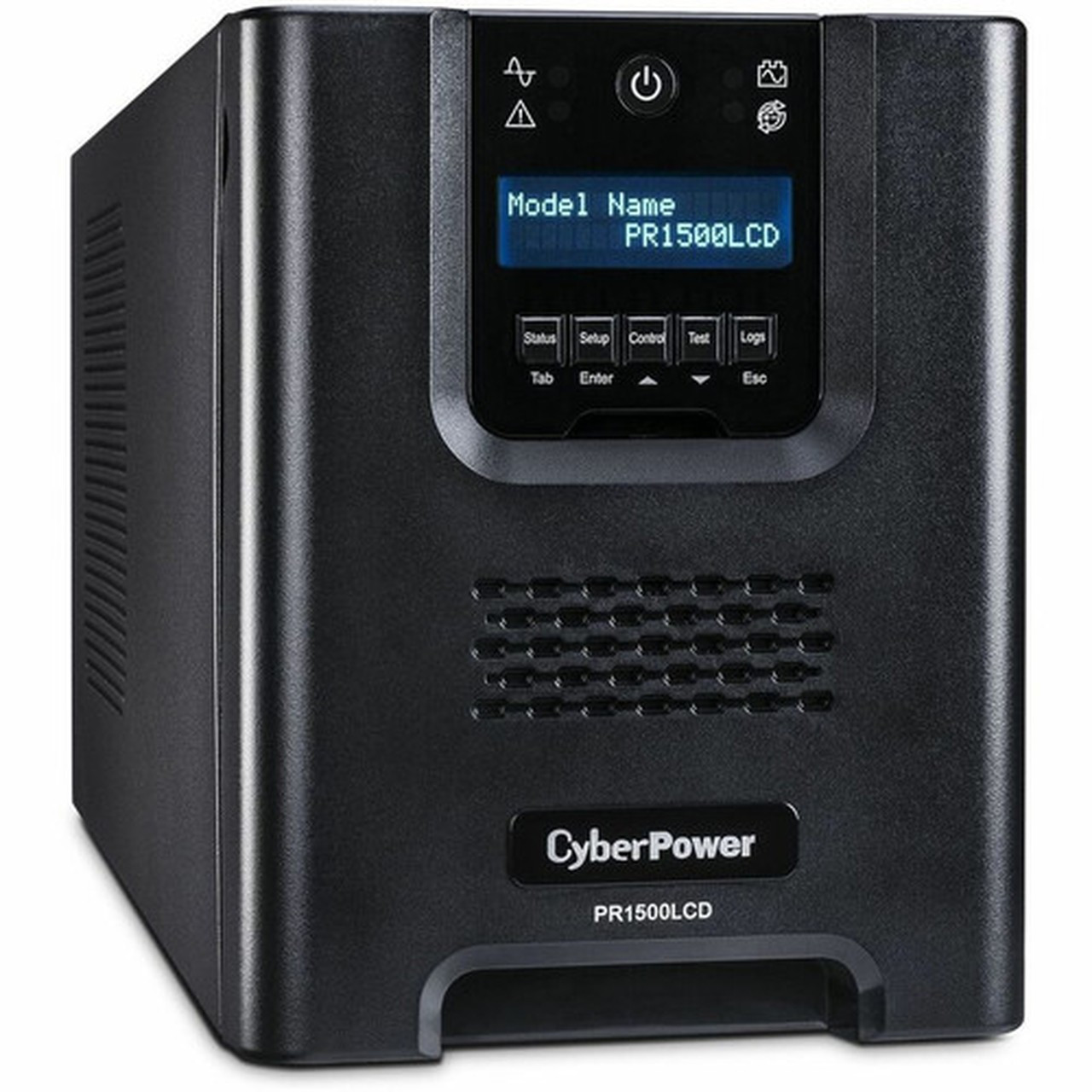

Designed as a mini-tower form factor, the PR1500LCD features an intuitive LCD interface that provides real-time status monitoring and configuration access. The unit includes eight NEMA 5-15R outlets—four of which are battery-backed—providing comprehensive power distribution for servers, network devices, storage systems, and telecommunications equipment. Automatic Voltage Regulation (AVR) corrects minor voltage fluctuations without switching to battery, extending runtime and battery life.
This UPS supports a wide input voltage range from 78V to 149V AC, stabilizing output at 120V AC ±5% to protect connected equipment from damaging voltage variations. The pure sine wave output ensures compatibility with active Power Factor Correction (PFC) power supplies found in modern servers, networking gear, and telecommunications systems, preventing shutdowns or hardware damage during backup operation.
Included PowerPanel Business Edition software enables automated shutdown sequences, event logging, email notifications, and runtime calibration for comprehensive power management. The 3-year warranty provides coverage for both the UPS and connected equipment, offering peace of mind for critical infrastructure investments.
Technical Overview
This line-interactive UPS operates with a 4ms typical transfer time, ensuring seamless transition to battery power during outages. The pure sine wave output maintains compatibility with active PFC power supplies found in modern servers and networking gear, preventing potential shutdowns or damage. Input voltage range spans 78-149V AC, with output stabilized at 120V AC ±5% through AVR correction.
The dual 12V sealed lead-acid batteries provide 17,000 mAh total capacity, delivering 4.7 minutes of runtime at full load and 15.1 minutes at half load. Typical recharge time is 3 hours. Battery status is monitored through the LCD display and management software, with replaceable batteries supporting long-term serviceability. Surge protection is rated at 1030 joules, with overload protection and GreenPower UPS bypass for energy efficiency.
Management interfaces include USB for local computer connection, serial for legacy systems, and SNMP/HTTP for network-based monitoring. The Emergency Power Off (EPO) port supports safety shutdown requirements in server rooms and data centers. Status indicators provide immediate visual feedback for power conditions, wiring faults, battery status, and replacement alerts.
Environmental specifications support operation up to 10,000 feet elevation and storage up to 50,000 feet, with 0-95% relative humidity tolerance. The unit is RoHS compliant, manufactured with restricted hazardous substances for environmentally responsible production. The black mini-tower enclosure measures 6.7 inches wide, 8.7 inches high, and 17 inches deep, with a substantial 54-pound weight that ensures stability during operation.
Key Product Advantages
The PR1500LCD combines enterprise-grade power protection with intuitive management capabilities. The integrated LCD provides immediate visibility into power status, load percentage, battery health, and runtime estimates without requiring external software. Remote management through SNMP, HTTP, USB, and serial interfaces enables centralized monitoring and control across distributed IT environments.
CyberPower's PowerPanel Business Edition software extends management functionality with automated shutdown sequences, event logging, email notifications, and runtime calibration. The optional RMCARD205 adds network management card capabilities for advanced monitoring scenarios. The 3-year warranty includes coverage for the UPS and connected equipment, providing comprehensive protection for critical infrastructure investments.
Comprehensive Monitoring
LCD display shows input/output voltage, frequency, load percentage, battery status, and estimated runtime at a glance.
- Real-time status indicators
- Battery replacement alerts
- Wiring fault detection
Management Flexibility
Multiple interface options support diverse IT environments from small offices to enterprise data centers.
- USB for local management
- Serial for legacy systems
- SNMP for network integration
Deployment / Use Cases
The PR1500LCD is engineered for protecting business-critical equipment where clean, reliable power is essential. Its 1500VA capacity and pure sine wave output make it ideal for server rooms, network closets, and telecommunications installations requiring stable power for sensitive electronics. The mini-tower form factor accommodates floor or shelf placement in space-constrained environments.
Typical applications include file servers, network switches, routers, storage arrays, VoIP systems, and security appliances. The unit's eight outlets support comprehensive power distribution for rack-mounted or standalone equipment. With support for servers, corporate workstations, storage devices, network infrastructure, and telecommunications equipment, the PR1500LCD provides versatile protection across diverse IT environments.
Server Room Protection
Provides clean backup power for critical servers during outages, with management interfaces for automated shutdown sequences.
- Active PFC compatibility
- SNMP monitoring integration
- EPO safety support
Network Infrastructure
Maintains connectivity for switches, routers, and security appliances through power disturbances.
- Pure sine wave for networking gear
- Multiple outlet configuration
- Remote management capabilities
Physical Profile
The black mini-tower enclosure measures 6.7 inches wide, 8.7 inches high, and 17 inches deep, with a substantial 54-pound weight that ensures stability during operation. The compact footprint allows placement under desks, on shelves, or in server racks with appropriate support. Front-panel LCD and controls provide easy access to status information and configuration settings.
The unit includes a 6-foot NEMA 5-15P power cord for standard North American outlets. Environmental specifications support operation up to 10,000 feet elevation and storage up to 50,000 feet, with 0-95% relative humidity tolerance. RoHS compliance ensures environmentally responsible manufacturing with restricted hazardous substances.
- Width
- 6.70" (170.18 mm)
- Depth
- 17" (431.80 mm)
- Height
- 8.70" (220.98 mm)
- Weight
- 54 lb (24493.99 g)
What's in the Box
The PR1500LCD ships complete with all necessary components for immediate deployment. Included accessories support both local and remote management configurations.
Highlights
- 1500VA/1500W line-interactive UPS with pure sine wave output

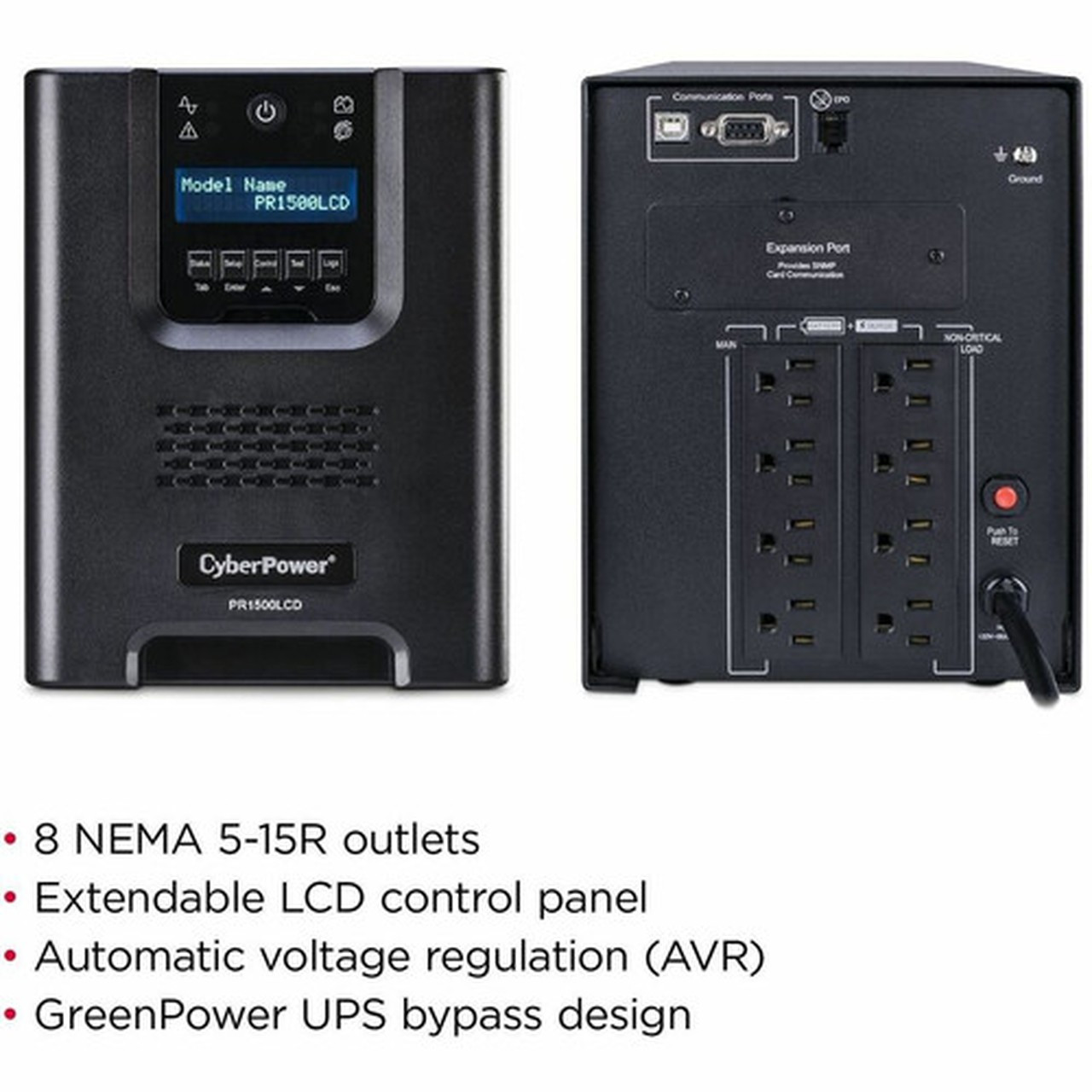

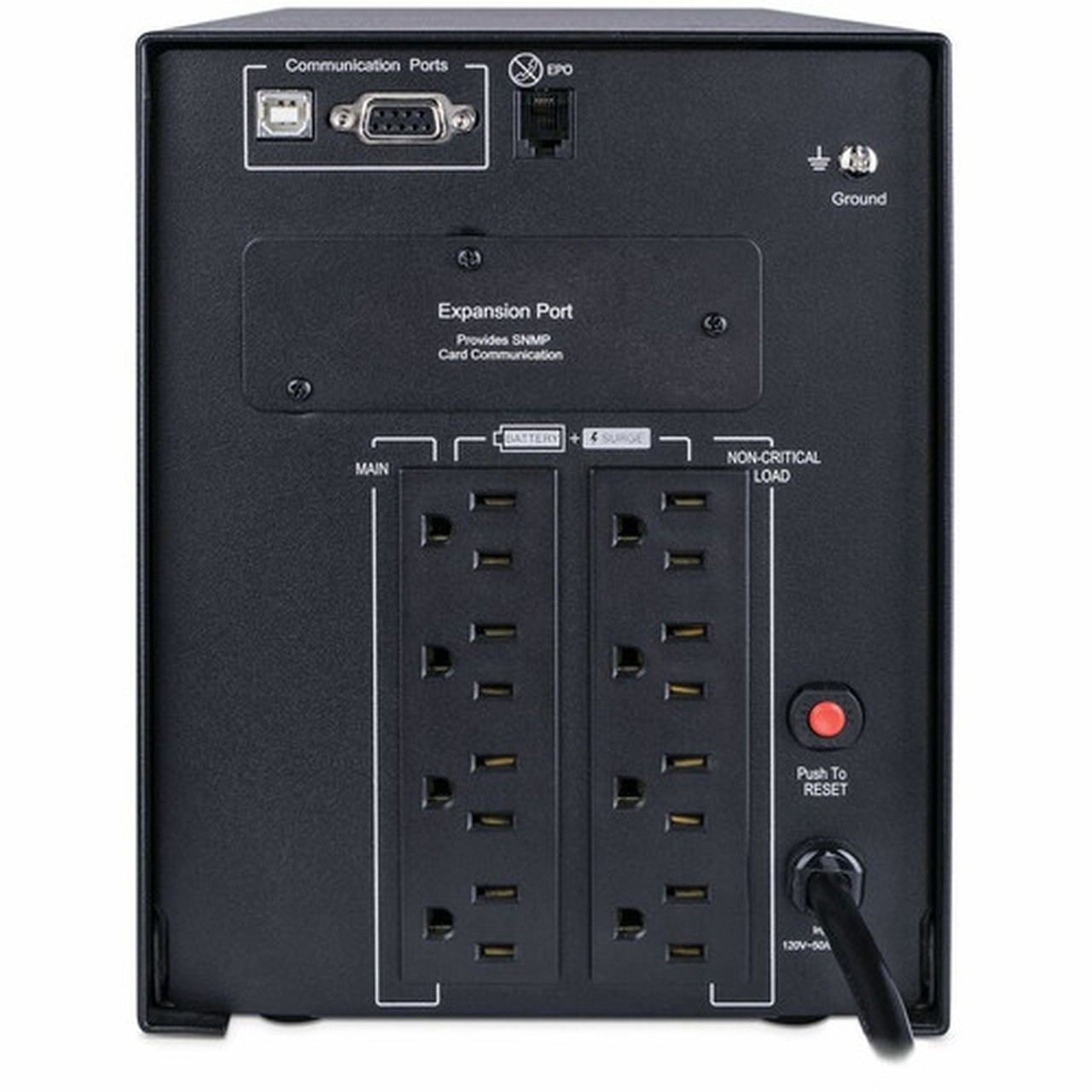

- 8 NEMA 5-15R outlets (4 battery-backed) for comprehensive power distribution
- LCD display provides real-time status monitoring and configuration access
- Automatic Voltage Regulation corrects brownouts without battery drain
- USB, serial, SNMP, and EPO interfaces for flexible management
- PowerPanel Business Edition software for automated shutdown and monitoring
- 4.7 minutes runtime at full load, 15.1 minutes at half load
- Replaceable sealed lead-acid batteries with 3-hour recharge time
- Mini-tower form factor with compact 6.7" × 8.7" × 17" dimensions
- 3-year warranty with connected equipment protection
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR1500LCD |
| Brand Name | CyberPower |
| Product Series | Smart App Sinewave UPS |
| Product Model | PR1500LCD |
| Product Name | PR1500LCD Smart App Sinewave UPS Systems |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Transfer Time | 4 ms |
| Overload Protection | Yes |
| Energy Saving | GreenPower UPS™ Bypass |
| Application/Usage | Server,Corporate,Storage Device,Network Device,Telecommunication |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Input Voltage | 120 V AC |
| Input Voltage Range | 78 V AC - 149 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1030 J |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | On Battery,Low Battery,Overload,Fault Mode,Replace Battery |
| Controls/Indicators | |
| Status Indicators | Power On Wiring Fault AC Power Battery Power Replace Battery |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 2 |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 17000 mAh |
| Backup/Run Time (Full Load) | 4.70 Minute |
| Backup/Run Time (Half Load) | 15.10 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Relative Humidity | 0% - 95% |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Mini-tower |
| Height | 8.70" (220.98 mm) |
| Width | 6.70" (170.18 mm) |
| Depth | 17" (431.80 mm) |
| Weight (Approximate) | 54 lb (24493.99 g) |
| Miscellaneous | |
| Package Contents | Smart App Sinewave PR1500LCD 1500VA UPS PowerPanel Business Edition Software CD User Manual Functional Setup Guide USB Cable Serial Cable Emergency Power Off (EPO) Cable Registration Card |
| Software Included | PowerPanel Business Edition Software |
| Energy Star | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
