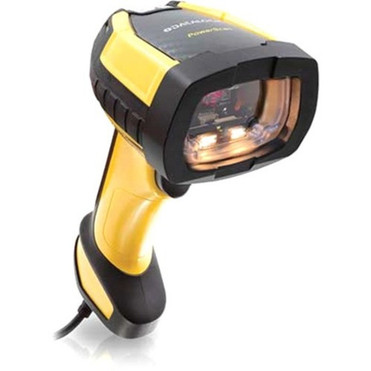

Datalogic PM9600-HP910RBK30 PowerScan PM9600-HP Barcode Scanner Kit - Wireless Imager - 95. 6" Long Range - IP65/IP67 Rugged - Black/Yellow
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The PM9600-HP features advanced scanning optics with a 38° horizontal and 24° vertical field of view, complemented by flexible reading angles of 52° skew, 52° pitch, and 360° roll. This omni-directional capability allows operators to scan from virtually any angle without precise alignment.
Technical specifications include a 3350 mAh Lithium Ion battery with 3.2-hour maximum recharge time, 480 mA input current, and Ethernet host interface for reliable data transmission. The scanner operates across a wide temperature range from -4°F to 122°F and withstands humidity from 0% to 95% non-condensing.
This section brings together practical product details such as Connectivity Technology, Image Sensor Type, Scan Pattern, Radio Frequency, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PowerScan PM9600-HP combines long-range capability with industrial durability, featuring a dual-color black and yellow design for high visibility in busy work areas. User feedback includes audible beep, vibration, and notification LED indicators, while the ergonomic handheld form factor ensures comfortable extended use.
Extended Range Scanning
Achieve consistent barcode reading from distances up to 95.6 inches (2428 mm), reducing the need for close proximity scanning in warehouse racking, manufacturing lines, and logistics operations.
Industrial Ruggedness
Built to withstand 50 drops from 2.5 meters at room temperature and 2.0 meters at -20°C, with IP65/IP67 ratings for dust and water resistance in challenging environments.
Deployment / Use Cases
This wireless barcode scanner kit serves demanding applications across industrial, warehouse, logistics, manufacturing, inventory, picking, assembly line, component tracking, sorting, and retail environments. The combination of long-range scanning, wireless freedom, and rugged construction makes it particularly valuable in operations where mobility and durability are equally important.
Deployment scenarios include scanning from forklift heights, across production lines, in outdoor receiving areas, and within temperature-controlled environments where traditional scanners may struggle with distance or environmental challenges.
Warehouse & Logistics
Ideal for inventory management, picking operations, and component tracking where scanning from elevated racks or across conveyor systems requires extended range capability.
Manufacturing & Assembly
Suitable for assembly line applications where barcode scanning of components, work-in-progress tracking, and quality control verification demand reliable performance in industrial environments.
Physical Profile
The handheld scanner measures 7.80" (198.12 mm) in height, 3.10" (78.74 mm) in width, and 5.50" (139.70 mm) in length, providing a balanced form factor for single-handed operation. The dual-color black and yellow design offers high visibility in industrial settings, while the water-resistant construction and ergonomic design ensure comfortable use during extended shifts.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.80" (198.12 mm), 3.10" (78.74 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.10" (78.74 mm)
- Height
- 7.80" (198.12 mm)
- Length
- 5.50" (139.70 mm)
Highlights
- Wireless barcode scanner kit with 95.6" long-range scanning capability
- High-resolution 1280 x 800 imager sensor for precise barcode capture
- IP65/IP67 rated for dust and water resistance in industrial environments
- Withstands 50 drops from 2.5 meters for exceptional durability
- Omni-directional scanning with 38° horizontal and 24° vertical field of view
- 3350 mAh Lithium Ion battery with 3.2-hour maximum recharge time
- Ethernet host interface for reliable wireless data transmission
- Operates from -4°F to 122°F across 0% to 95% humidity range
- Dual-color black and yellow design for high visibility
- Includes beep, vibration, and LED notification features
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PM9600-HP910RBK30 |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PM9600-HP |
| Product Name | PowerScan PM9600-HP Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Scanning Distance | 95.60" (2428.24 mm) |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 ° |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 20kV |
| Features | Beep,3GL,Notification LED,Vibration,Ergonomic Design |
| Network & Communication | |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | Ethernet |
| Power Description | |
| Power Supply Included | Yes |
| Input Current | 480 mA |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3350 mAh |
| Maximum Battery Recharge Time | 3.20 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Dual Color |
| Product Color | Black,Yellow |
| Durability | Water Resistant |
| Height | 7.80" (198.12 mm) |
| Width | 3.10" (78.74 mm) |
| Length | 5.50" (139.70 mm) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65,IP67 |
| Application/Usage | Industrial,Warehouse,Logistics,Manufacturing,Inventory,Picking,Assembly Line,Component Tracking,Sorting,Retail |
User Manual
FAQ
What is the maximum scanning distance of the Datalogic PM9600-HP scanner?
The Datalogic PowerScan PM9600-HP achieves a maximum scanning distance of 95.6 inches (2428.24 mm), making it suitable for long-range applications in warehouse racking, manufacturing lines, and logistics operations where close proximity scanning isn't practical.
What type of connectivity does this barcode scanner use?
This scanner kit features wireless connectivity technology with an Ethernet host interface for data transmission. The wireless operation eliminates cable constraints while maintaining reliable communication with host systems in industrial environments.
How durable is the PM9600-HP for industrial use?
The scanner is built for industrial durability with IP65/IP67 ingress protection ratings for dust and water resistance. It withstands 50 drops from 2.5 meters at room temperature and 2.0 meters at -20°C, ensuring reliable performance in demanding warehouse and manufacturing environments.
What battery does the scanner use and how long does it take to recharge?
The scanner is powered by a 3350 mAh Lithium Ion (Li-Ion) battery that provides extended operation between charges. The maximum battery recharge time is 3.2 hours, minimizing downtime during shift changes or battery replacement cycles.
What environmental conditions can this scanner operate in?
The PM9600-HP operates across a wide temperature range from -4°F (-20°C) to 122°F (50°C) and handles humidity from 0% to 95% non-condensing. This makes it suitable for both temperature-controlled indoor environments and challenging outdoor receiving areas.
What types of barcodes can this scanner read?
The imager sensor reads various barcode types with a minimum element resolution of 10 mil (0.25 mm) for DataMatrix and PDF417 codes. The 1280 x 800 resolution sensor captures detailed barcode images for reliable decoding across different symbologies used in industrial applications.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
