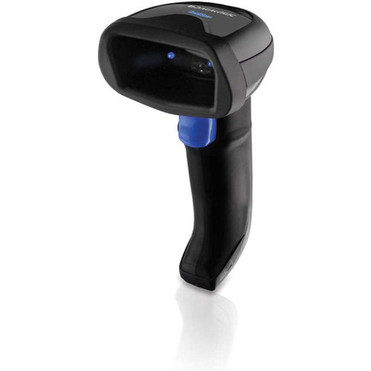

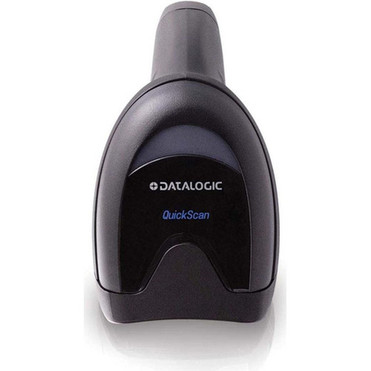

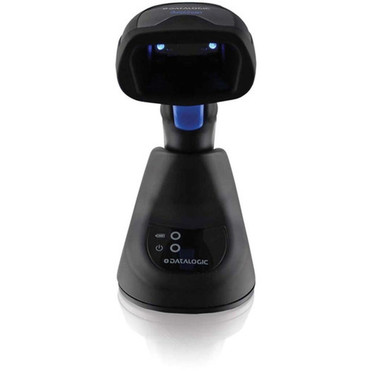

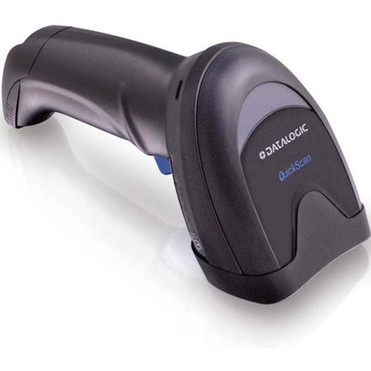

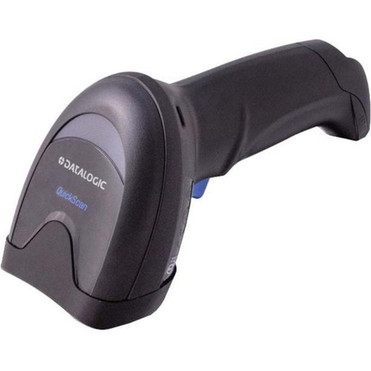

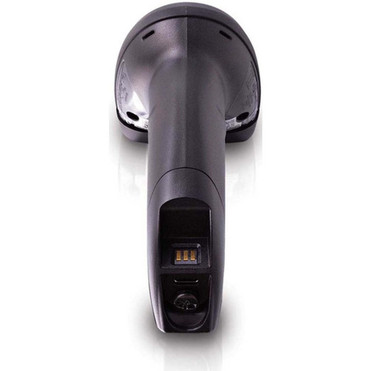

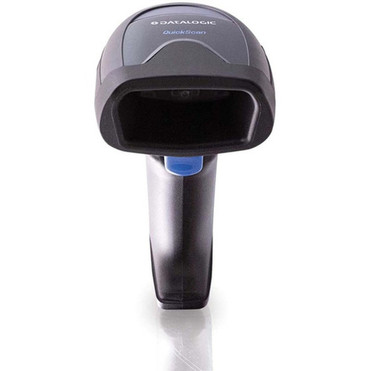

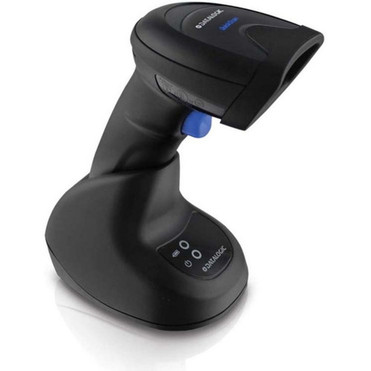

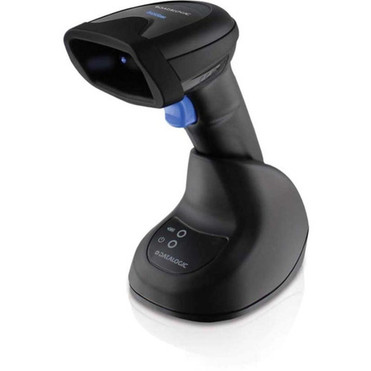

Datalogic QuickScan QBT2500 Barcode Scanner Kit - Wireless Connectivity - 20.08" (510 mm) Scan Distance - 1D, 2D - LED - Imager - - - (QBT2500-BK-BTK+)
Write a Review
Datalogic
Datalogic QuickScan QBT2500 Barcode Scanner Kit - Wireless Connectivity - 20.08" (510 mm) Scan Distance - 1D, 2D - LED - Imager - - - (QBT2500-BK-BTK+)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- Micro QR Code
- QR Code
- Dot code
- Australian Post
- British Post
- China Post
- IMB
- Japanese Post
- KIX Post
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC)
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composites
- Digimarc Barcodes (QD2500, QM2500, QBT2500 only)
- QuickScan QBT2500 Barcode Scanner Kit
- USB-C Cable
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported: 1D:
Light Source: LED
Image Sensor Type: Imager
Scan Pattern: Omni-directional
Scanner Range: Standard Range
Scanning Distance: 20.08" (510 mm)
Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 30 in/s (762 mm/s)
Image Formats: BMP,JPEG,TIFF
Maximum Ambient Light: 110000 lux
Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 10 mil (0.25 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Maximum Element Resolution (PDF417): 6.70 mil (0.17 mm)
Bluetooth: Yes
Radio Frequency: Yes
Host Interface: Serial,USB,Keyboard Wedge
Form Factor: Handheld
Color Family: Black
Product Color: Black
Weight (Approximate): 7.30 oz (206.951519 g)
Package Contents:
Ingress Protection (IP) Rating: IP52
Application/Usage: Industrial,Retail,Smartphone,Commercial Service,Hospitality,Ticketing,Transportation,Government,Healthcare,Laboratory,Pharmacy,Light/Clean Manufacturing
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS)
Limited Warranty: 5 Year
- Laser-free design provides high-performance scanning without the risk of eye injury
- Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
- Bluetooth technology - Allows compatibility with most of your smart devices
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | QBT2500BKBTK |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | QuickScan |
| Product Series | 2500 |
| Product Model | QBT2500 |
| Product Name | QuickScan QBT2500 Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Scanner Range | Standard Range |
| Scanning Distance | 20.08" (510 mm) |
| Cable Type Included | USB |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 30 in/s (762 mm/s) |
| Image Formats | BMP,JPEG,TIFF |
| Maximum Ambient Light | 110000 lux |
| Drop Specification | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 10 mil (0.25 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | Serial,USB,Keyboard Wedge |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 7.30 oz (206.951519 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Industrial,Retail,Smartphone,Commercial Service,Hospitality,Ticketing,Transportation,Government,Healthcare,Laboratory,Pharmacy,Light/Clean Manufacturing |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-options]
| Product | Datalogic CAB-362 SH3924 Serial Cable - Data Transfer Cable - First End: RS-232 Serial |
| SKU | 90G001092 |
| Sale Price | $29.71 |
| Product | Datalogic AC Adapter - 120 V AC Input |
| SKU | 90ACC0306 |
| Sale Price | $5.40 |
| Product | Datalogic 90A051230 Data/Power Cable - Data Transfer Cable |
| SKU | 90A051230 |
| Sale Price | $20.70 |
| Product | Datalogic CAB-362 Coiled Cable - DB-9 Female - 2.9m |
| SKU | 90A051330 |
| Sale Price | $27.00 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Information
5 Year
