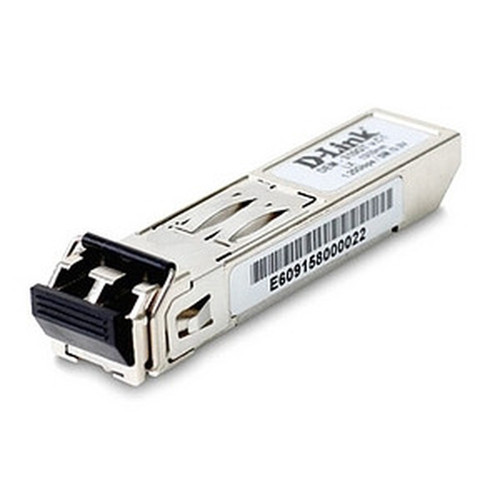

D-Link DEM-310GT SFP - mini-GBIC Transceiver - 1 x 1000Base-LX LC Duplex - Multi/Single-mode Fiber - 0. 55 km Reach
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transceiver operates on Gigabit Ethernet technology, delivering data transfer rates up to 1000 Mbps. The 1000Base-LX specification ensures stable performance over optical fiber media, with LC duplex connectors providing a secure interface for fiber patch cables.
The module supports both multi-mode and single-mode fiber types, offering deployment flexibility across different network environments. Multi-mode fiber is ideal for shorter distances within data centers, while single-mode fiber extends reach for campus or building-to-building links.
Key Product Advantages
The DEM-310GT combines proven fiber optic technology with practical deployment features for reliable network expansion.
Dual Fiber Mode Support
Compatible with both multi-mode and single-mode fiber cables, allowing network architects to choose the appropriate media for their distance and budget requirements without needing separate transceiver models.
- Works with 62.5/125μm or 50/125μm multi-mode fiber
- Supports 9/125μm single-mode fiber
- Maximum reach of 0.55 km
Switch Compatibility
Designed specifically for D-Link switches including the DGS-1210 series, ensuring reliable performance and simplified procurement for D-Link network environments.
- Tested with DGS-1210-08P, DGS-1210-10, DGS-1210-10P
- Compatible with DGS-1210-20, DGS-1210-24P, DGS-1210-28 models
- Works with DGS-1210-28MP, DGS-1210-28P, DGS-1210-48 switches
Hot-Pluggable Design
The SFP form factor allows installation and removal while the switch remains powered on, minimizing network downtime during maintenance or upgrades.
- No need to power down equipment
- Quick module replacement
- Standard SFP dimensions
Deployment / Use Cases
The DEM-310GT transceiver is ideal for extending Gigabit Ethernet networks beyond the limitations of copper cabling. Its 0.55 km reach makes it suitable for connecting network segments across different floors, buildings, or campus environments where fiber infrastructure already exists or is being deployed.
Common applications include uplink connections between switches in distributed network topologies, server-to-switch links in data centers requiring electrical isolation, and backbone connections in enterprise networks where distance exceeds 100 meters. The module's compatibility with both fiber types allows network designers to optimize for cost with multi-mode in shorter runs or maximize distance with single-mode for longer spans.
Physical Profile
The transceiver features a compact SFP form factor measuring 2.25" (57.15 mm) in height, 1.19" (30.23 mm) in width, and 0.47" (11.94 mm) in depth. This standardized size ensures proper fit in SFP slots across compatible networking equipment. The module's dimensions allow high-density deployment in switch chassis with multiple SFP ports, maximizing port utilization in rack-mounted environments.
- Width
- 1.19" (30.23 mm)
- Depth
- 0.47" (11.94 mm)
- Height
- 2.25" (57.15 mm)
Highlights
- 1000Base-LX Gigabit Ethernet transceiver with LC duplex connector
- Supports both multi-mode and single-mode fiber optic cables
- Maximum transmission distance of 0.55 km (0.34 miles)
- Hot-pluggable SFP (mini-GBIC) form factor for easy installation
- Compatible with D-Link DGS-1210 series switches
- 300 mA input current requirement
- Compact dimensions: 2.25" H × 1.19" W × 0.47" D
- 3-year limited warranty for reliable performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | D-Link Systems, Inc |
| Manufacturer Part Number | DEM-310GT |
| Brand Name | D-Link |
| Product Model | DEM-310GT |
| Product Name | DEM-310GT 1000BASE-LX Mini Gigabit Interface Converter Module |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-LX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode,Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-LX |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Power Description | |
| Input Current | 300 mA |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Height | 2.25" (57.15 mm) |
| Width | 1.19" (30.23 mm) |
| Depth | 0.47" (11.94 mm) |
| Miscellaneous | |
| Compatibility | DGS-1210-08P DGS-1210-10 DGS-1210-10P DGS-1210-20 DGS-1210-24P DGS-1210-28 DGS-1210-28MP DGS-1210-28P DGS-1210-48 DGS-1210-52 DGS-1210-52MP DGS-1210-52P |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What type of fiber connector does the DEM-310GT use?
The DEM-310GT uses an LC duplex connector, which is a small form-factor fiber optic connector commonly used in SFP transceivers. The LC connector provides a secure connection with low insertion loss, making it ideal for high-density network environments where space is at a premium.
What is the maximum distance this transceiver can support?
This transceiver supports a maximum distance of 0.55 kilometers (approximately 0.34 miles) over optical fiber. The actual achievable distance may vary depending on fiber type, quality, and network conditions, but the 0.55 km specification represents the designed reach for reliable Gigabit Ethernet performance.
Does this SFP module work with both multi-mode and single-mode fiber?
Yes, the DEM-310GT is compatible with both multi-mode and single-mode fiber optic cables. This dual compatibility provides deployment flexibility, allowing network administrators to use existing fiber infrastructure or choose the most cost-effective fiber type for their specific distance requirements without needing different transceiver models.
Which D-Link switches are compatible with this transceiver?
The DEM-310GT is compatible with multiple D-Link DGS-1210 series switches including the DGS-1210-08P, DGS-1210-10, DGS-1210-10P, DGS-1210-20, DGS-1210-24P, DGS-1210-28, DGS-1210-28MP, DGS-1210-28P, DGS-1210-48, DGS-1210-52, DGS-1210-52MP, and DGS-1210-52P models. Always verify specific switch compatibility before deployment.
