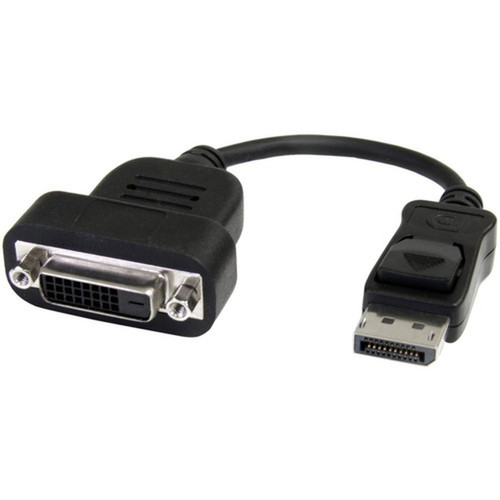

StarTech.com DisplayPort to DVI Adapter, Active DisplayPort to DVI-D Adapter Converter 1080p, DP 1.2 to DVI Adapter, Latching DP - 1.2 (DP2DVIS)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connector Type on First End: DVI-D (Single-Link) Digital Video - Female
Connector on First End Details: 1 x 25-pin DVI-D (Single-Link) Digital Video - Female
Connector Type on Second End: DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Features: Active,Latching Connector,HDCP 1.3,Halogen Free,Extended Display Identification Data (EDID),Screw Lock
Color Family: Black
Product Color: Black
Weight (Approximate): 1.69 oz (48 g)
Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 3 Year
- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 (HBR2) to DVI-D single-link adapter connects a DVI display/projector supporting 1920x1200 & 1080p 60Hz
EDID/DDC pass-through ensures compatibility between source & display
5.7" (15cm) attached cable - COMPATIBILITY: Active video converter supports DP or DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
AMD Eyefinity Certified ideal for use with Radeon Pro Series Workstation Graphics - CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector or add a second display to your workstation
Compact design
Tested w/ DVI cables up to 25ft
Supports Apple Cinema Display HD - LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection
Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection - EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works with any OS including Windows, Ubuntu and macOS; DisplayPort male to DVI female adapter dongle
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP2DVIS |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | DisplayPort to DVI Single-Link Active Converter |
| Packaged Quantity | 1 Each |
| Product Type | Video Adapter |
| Technical Information | |
| Connector Type on First End | DVI-D (Single-Link) Digital Video - Female |
| Connector on First End Details | 1 x 25-pin DVI-D (Single-Link) Digital Video - Female |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Features | Active,Latching Connector,HDCP 1.3,Halogen Free,Extended Display Identification Data (EDID),Screw Lock |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 1.69 oz (48 g) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf2
Additional-pdf1
[/custom-user-manual]
