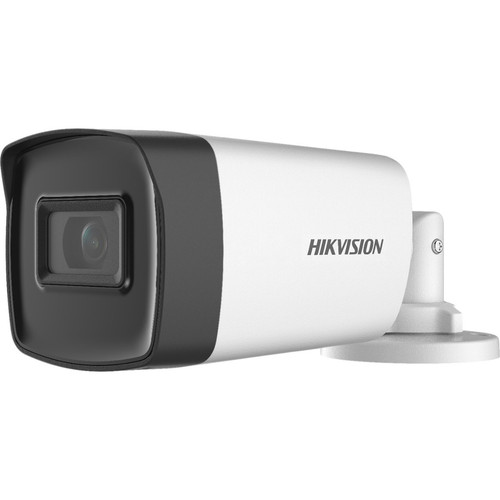

Hikvision DS-2CE17H0T-IT3F 3. 6MM Turbo HD 5MP Outdoor Bullet Camera - 2560 x 1944 Resolution - 131ft Night Vision - IP67 - Fixed Lens
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor that captures 5-megapixel video at a maximum resolution of 2560 x 1944. It operates in both color and monochrome modes, with an automatic day/night function that switches based on lighting conditions. The EXIR 2.0 infrared technology provides night vision illumination up to 131 feet (40 meters), enabling clear monitoring in low-light or no-light scenarios.
Advanced imaging features include Digital Wide Dynamic Range (D-WDR) to balance exposure in high-contrast scenes, Back Light Compensation (BLC) to prevent silhouetting, Highlight Compensation (HLC) to reduce glare from bright light sources, and automatic white balance for accurate color reproduction. The camera outputs video in both NTSC and PAL signal formats, supporting global broadcast standards.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DS-2CE17H0T-IT3F 3.6MM combines high-resolution imaging with practical deployment benefits for security installations. Its TurboHD technology allows businesses and homeowners to leverage existing coaxial infrastructure for HD video, reducing installation time and material costs. The camera's robust construction and wide operating temperature range ensure dependable performance in varied climates, from freezing winters to hot summers.
Enhanced Low-Light Performance
EXIR 2.0 infrared illumination delivers clear night vision up to 131 feet, while DWDR and BLC features maintain image quality in challenging lighting conditions.
- 131 ft (40 m) night vision range
- DWDR for high-contrast scenes
- BLC to prevent silhouetting
Simplified Installation & Compatibility
TurboHD transmits HD analog video over standard coaxial cable, and the camera supports TVI, AHD, CVI, and CVBS formats for broad system integration.
- Uses existing coaxial cabling
- Multi-format video support
- Conduit mount for secure attachment
Deployment / Use Cases
This bullet camera is designed for outdoor surveillance applications where reliable, high-definition monitoring is required. Its IP67 rating makes it suitable for exposed locations subject to rain, dust, and temperature extremes, such as building perimeters, parking lots, entryways, and retail exteriors. The fixed 3.6mm lens provides a balanced field of view for general observation areas.
Ideal for small to medium business security systems, residential properties, and commercial facilities, the camera integrates seamlessly with analog DVRs and hybrid recorders that support TurboHD or compatible formats. Its ability to work with legacy coaxial infrastructure makes it a cost-effective upgrade path for older surveillance systems seeking improved image clarity without complete rewiring.
Physical Profile
The camera features a bullet form factor with a conduit mount for secure attachment to walls, eaves, or poles. Its compact design and approximate weight of 331.1 grams facilitate straightforward installation. The housing is constructed to withstand outdoor elements, with an IP67 rating confirming protection against dust and temporary immersion in water.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 331.1 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 331.1 g
- Length
- 3.6 mm
Highlights
- 5-megapixel resolution (2560 x 1944) for detailed surveillance video
- TurboHD technology transmits HD analog over existing coaxial cable
- EXIR 2.0 infrared night vision with 131-foot (40-meter) range
- IP67-rated for water and dust resistance in outdoor environments
- Supports TVI, AHD, CVI, and CVBS video signal formats
- Fixed 3.6mm lens optimized for general surveillance viewing angles
- Digital Wide Dynamic Range (D-WDR) for balanced exposure
- Operating temperature range of -40°F to 140°F (-40°C to 60°C)
- 36-month limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS2CE17H0TIT3F3.6MM |
| Brand Name | Hikvision |
| Product Line | Turbo HD |
| Product Model | DS-2CE17H0T-IT3F |
| Product Name | 5 MP Outdoor Bullet Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 131.23 ft (40 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Maximum Video Resolution | 2560 x 1944 |
| Video Signal Format | NTSC,PAL |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.6 mm |
| Network & Communication | |
| Connectivity Technology | Wired |
| Physical Characteristics | |
| Mount Type | Conduit Mount |
| Form Factor | Bullet |
| Durability | Water Resistant,Dust Resistant |
| Weight (Approximate) | 331.1 g |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Digital Wide Dynamic Range (D-WDR),Back Light Compensation (BLC),Highlight Compensation (HLC),Automatic White Balance |
| Indoor/Outdoor | Outdoor |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the resolution of this Hikvision camera?
The Hikvision DS-2CE17H0T-IT3F 3.6MM captures video at 5 megapixels, with a maximum resolution of 2560 x 1944 pixels. This high-definition output provides clear, detailed imagery suitable for identifying faces, license plates, and other critical details in surveillance footage.
How does the night vision work on this camera?
This camera uses Hikvision's EXIR 2.0 infrared technology to illuminate scenes in low-light or complete darkness. It has an effective night vision range of up to 131 feet (40 meters), allowing for clear monochrome video capture during nighttime hours without additional lighting.
Is this camera suitable for outdoor use?
Yes, the camera is designed for outdoor deployment with an IP67 rating for water and dust resistance. It can withstand temporary immersion and is built to operate in temperatures from -40°F to 140°F (-40°C to 60°C), making it reliable for exterior installations in various climates.
What type of cabling does this camera require?
This camera uses standard coaxial cable for video transmission, leveraging Hikvision's TurboHD technology to send high-definition analog signals over existing coaxial infrastructure. This eliminates the need to run new cables when upgrading from older analog systems to HD resolution.
What video formats does this camera support?
The camera supports multiple analog HD formats including TVI, AHD, and CVI, as well as standard definition CVBS. This multi-format compatibility ensures it can work with a wide range of DVRs and hybrid recorders from various manufacturers, providing flexibility in system design.
What is the warranty period for this camera?
Hikvision provides a 36-month limited warranty for this camera, covering defects in materials and workmanship under normal use. This extended warranty period reflects the product's durability and reliability for continuous surveillance applications.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
