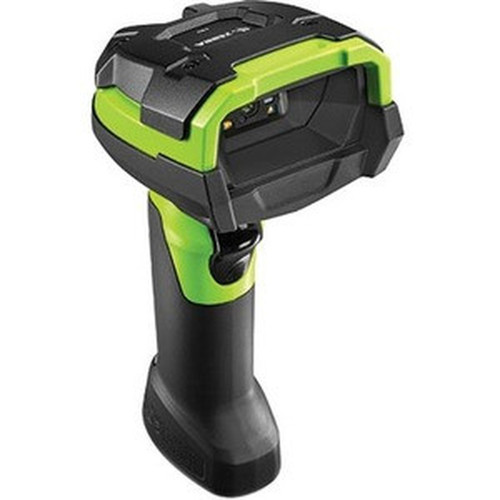

Zebra DS3678-ER2F003VZWW DS3678-ER Handheld Barcode Scanner - Wireless Bluetooth - 1D/2D Imager - Extended Range - Industrial Green
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DS3678-ER utilizes an advanced imager sensor capable of reading both 1D and 2D barcodes, including Code 39, Code 128, UPC/EAN, DataMatrix, QR Code, PDF417, and specialized symbologies like Digimarc digital watermarks and IUID parsing for military and aerospace applications. Its omni-directional scan pattern and wide reading angles—60° skew, 60° pitch, and 360° roll—enable fast, flexible scanning from virtually any orientation.
Technical performance is enhanced by a 32° horizontal and 20° vertical field of view, extended scanning range, and the ability to operate in high ambient light up to 107,639 lux. The scanner maintains reliable reads with a minimum print contrast of 25% and handles DataMatrix codes from 10 mil (0.25 mm) to 0.20" (5.08 mm) in resolution.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DS3678-ER delivers tangible productivity gains through cable-free operation, reducing clutter and enabling greater mobility for workers. Its wireless Bluetooth connectivity ensures compatibility with a wide range of mobile devices, tablets, and computers, simplifying integration into existing workflows.
Industrial Durability
Built to survive harsh environments, the scanner meets IP67/IP65 standards for dust and water resistance and withstands repeated 8-foot drops to concrete, minimizing downtime and replacement costs.
- IP67/IP65 Rated
- 8 ft. Drop Spec
- Rugged Construction
Extended Battery Life
The 3100 mAh lithium-ion battery supports extended shift usage, reducing the frequency of recharging and ensuring continuous operation throughout demanding workdays.
- 3100 mAh Capacity
- Lithium-Ion Chemistry
- Long Runtime
Deployment / Use Cases
This scanner is optimized for industrial, warehouse, and manufacturing settings where reliable, high-performance barcode scanning is critical. Its extended range and robust connectivity make it ideal for large-scale inventory management, pallet tracking, and assembly line verification.
Common applications include receiving and shipping operations, cycle counting, work-in-process tracking, and quality control inspections. The wireless design eliminates cable snags and trip hazards in busy environments, while the industrial green color provides high visibility and matches standard facility equipment.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Warehouse Management
Streamline picking, packing, and put-away processes with fast, accurate scanning from a distance, reducing walk time and improving order fulfillment speed.
Manufacturing Floor
Track components, assemblies, and finished goods through production stages, ensuring traceability and compliance with industry standards like IUID.
Physical Profile
The handheld form factor measures 7.30" (185.42 mm) in height, 3" (76.20 mm) in width, and 5.60" (142.24 mm) in depth, with an approximate weight of 15.38 oz (436 g). This compact, balanced design ensures comfortable extended use, while the industrial green finish provides durability and visual distinction in busy work environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.30" (185.42 mm), 3" (76.20 mm), 5.60" (142.24 mm), 15.38 oz (436 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3" (76.20 mm)
- Depth
- 5.60" (142.24 mm)
- Height
- 7.30" (185.42 mm)
- Weight
- 15.38 oz (436 g)
Highlights
- Wireless Bluetooth connectivity for cable-free operation and enhanced mobility
- 1D and 2D imager scanner with extended range and omni-directional scanning
- Supports a wide range of barcode symbologies including QR, DataMatrix, and UPC/EAN
- Industrial-grade durability with IP67/IP65 rating and 8-foot drop resistance
- 3100 mAh lithium-ion battery for long-lasting shift performance
- Optimized for industrial, warehouse, and manufacturing applications
- High ambient light tolerance up to 107,639 lux for reliable outdoor/indoor use
- Compact handheld design in industrial green for easy identification
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS3678-ER2F003VZWW |
| Brand Name | Zebra |
| Product Series | 3600 |
| Product Model | DS3678-ER |
| Product Name | DS3678-ER Handheld Barcode Scanner |
| Packaged Quantity | 1 |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN, I 2 of 5 Korean 3 of 5 GS1 DataBar Base 32 (Italian Pharma) 2D: PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes DotCode Digimarc: Digital watermark technology IUID Support: Supports IUID parsing, the ability to read and separate IUID fields per application requirement |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Scanner Range | Extended Range |
| Field of View (Horizontal) | 32° |
| Field of View (Vertical) | 20° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 107639 lux |
| Drop Specification | Withstands multiple 8.0 ft. /2.4 m drops to concrete |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (DataMatrix) | 0.20" (5.08 mm) |
| Network & Communication | |
| Bluetooth | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3100 mAh |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Green |
| Product Color | Industrial Green |
| Height | 7.30" (185.42 mm) |
| Width | 3" (76.20 mm) |
| Depth | 5.60" (142.24 mm) |
| Weight (Approximate) | 15.38 oz (436 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP67,IP65 |
| Application/Usage | Industrial,Warehouse,Manufacturing |
User Manual
FAQ
What types of barcodes can the Zebra DS3678-ER scanner read?
The DS3678-ER reads both 1D and 2D barcodes, including common symbologies like Code 39, Code 128, UPC/EAN, DataMatrix, QR Code, and PDF417, as well as specialized codes such as Digimarc digital watermarks and IUID for military applications. This comprehensive support ensures compatibility with most labeling systems used in industrial and logistics environments.
How does the wireless connectivity work, and what devices are compatible?
The scanner uses Bluetooth wireless technology to connect to compatible devices such as smartphones, tablets, laptops, and point-of-sale systems. This eliminates the need for physical cables, reducing clutter and allowing greater mobility for users in warehouse or manufacturing settings. Bluetooth ensures broad compatibility with modern smart devices and enterprise hardware.
What is the battery life like, and how is the scanner powered?
Powered by a 3100 mAh lithium-ion rechargeable battery, the DS3678-ER is designed for extended shift use without frequent recharging. The battery chemistry provides reliable performance and long lifecycle, supporting continuous operation in demanding industrial applications where downtime must be minimized.
How durable is this scanner for industrial environments?
Built to industrial standards, the scanner features an IP67/IP65 rating for dust and water resistance and withstands multiple 8-foot drops to concrete. This rugged construction ensures it can survive harsh conditions typical in warehouses, manufacturing floors, and outdoor settings, reducing maintenance costs and improving reliability.
What is the scanning range and field of view?
The scanner offers an extended scanning range with a 32° horizontal and 20° vertical field of view, allowing it to read barcodes from a distance and at various angles. Its omni-directional scan pattern and wide reading angles (60° skew, 60° pitch, 360° roll) enable flexible, efficient scanning without precise alignment.
What are the primary applications for this barcode scanner?
The DS3678-ER is optimized for industrial, warehouse, and manufacturing use cases such as inventory management, asset tracking, receiving/shipping, and quality control. Its wireless design, durability, and extended range make it ideal for environments where reliability, mobility, and high-performance scanning are critical to operational efficiency.
What print speed is listed?
Zebra DS3678-ER Handheld Barcode Scanner - Wireless Connectivity - 1D, 2D - Imager - Omni-directional - Bluetooth - Industrial Green - (DS3678-ER2F003VZWW) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What sheet capacity, media size, or paper handling detail is listed?
Zebra DS3678-ER Handheld Barcode Scanner - Wireless Connectivity - 1D, 2D - Imager - Omni-directional - Bluetooth - Industrial Green - (DS3678-ER2F003VZWW) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
