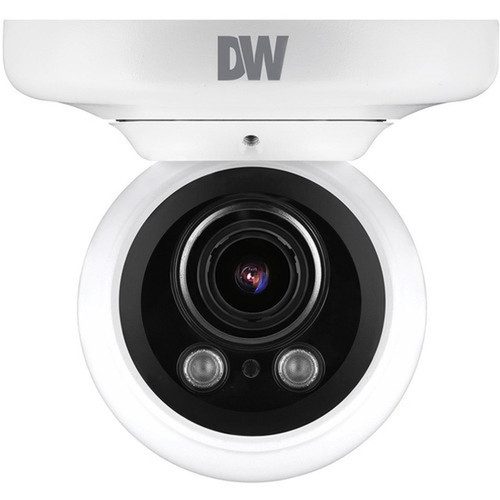

Digital Watchdog DWC-VA583WTIR Star-Light Plus 5MP Outdoor Vandal Ball Camera - 2592 x 1944 - 80 ft IR Night Vision - IP67 IK10 - Varifocal Lens
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor that supports both monochrome and color video, providing reliable performance in various lighting conditions. The varifocal lens offers a 2.7 mm to 13.5 mm focal length with 5x optical zoom, allowing precise adjustment of the field of view from 85° to 32° to match specific surveillance needs.
Advanced imaging features include automatic white balance, back light compensation (BLC), auto gain control, wide dynamic range, digital noise reduction, and privacy masking. These technologies work together to enhance video clarity, reduce glare, and maintain consistent image quality in challenging environments with mixed lighting or high contrast.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The DWC-VA583WTIR stands out with its combination of high-resolution imaging, extended night vision, and exceptional durability. Its 5-megapixel sensor captures fine details essential for security applications, while the 80-foot infrared night vision ensures reliable monitoring around the clock, even in complete darkness.
Superior Environmental Resistance
With IP67 and IK10 ratings, this camera is fully protected against dust, water immersion, and high-impact forces, making it ideal for outdoor and high-traffic areas where vandalism or harsh weather is a concern.
- Water and Dust Resistant (IP67)
- Vandal Resistant (IK10)
- Operates from -4°F to 122°F
Flexible Installation Options
The ball design and multiple mount types allow for easy installation on ceilings, walls, or junction boxes, providing versatile placement to cover critical areas without compromising on security coverage.
- Ceiling, Wall, Junction Box Mount
- Ball Form Factor
- 12 V DC or 24 V AC Power
Deployment / Use Cases
This camera is designed for outdoor surveillance applications where high-resolution video and robust protection are paramount. It excels in monitoring perimeters, parking lots, building entrances, and other exterior spaces that require detailed footage and resistance to environmental or physical threats.
Ideal for small to medium business security systems, residential properties, and institutional facilities, the DWC-VA583WTIR integrates seamlessly into existing HD over coax or compatible surveillance setups. Its motion detection and privacy masking features support efficient monitoring and compliance with privacy regulations in sensitive areas.
Commercial Perimeter Security
Deploy around business exteriors to deter theft, monitor deliveries, and ensure employee safety with clear, high-resolution video evidence.
- 80 ft Night Vision
- Vandal-Resistant Housing
- Wide Dynamic Range
Residential Property Monitoring
Use for home security to watch driveways, yards, and entry points, providing peace of mind with reliable outdoor performance in all weather conditions.
- IP67 Weatherproof
- 5MP Detail
- Flexible Mounting
Physical Profile
The camera features a compact ball form factor with a height of 4.80 inches (121.92 mm) and diameter of 4.92 inches (124.97 mm), weighing approximately 1.58 lb (716.68 g). This design allows for discreet installation while maintaining a sturdy presence. The housing is built to resist water, dust, impacts, and vandalism, ensuring long-term reliability in exposed locations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.80" (121.92 mm), 1.58 lb (716.68 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 4.80" (121.92 mm)
- Weight
- 1.58 lb (716.68 g)
- Length
- 2.7 mm (0.11")
Highlights
- 5-megapixel resolution (2592 x 1944) for detailed HD video
- 80-foot infrared night vision for 24/7 monitoring
- IP67 and IK10 ratings for water, dust, and vandal resistance
- Varifocal lens with 5x optical zoom and adjustable field of view
- CMOS sensor supporting monochrome and color video
- Wide operating temperature range (-4°F to 122°F)
- Multiple mount options: ceiling, junction box, and wall
- 12 V DC or 24 V AC power input for flexible installation
- 5-year limited warranty for long-term reliability
- RoHS compliant and environmentally friendly
Specifications
| Specifications | |
|---|---|
| Manufacturer | Digital Watchdog |
| Manufacturer Part Number | DWC-VA583WTIR |
| Brand Name | Digital Watchdog |
| Product Line | Star-Light Plus |
| Product Model | DWC-VA583WTIR |
| Product Name | 5MP Universal HD Over Coax Vandal Ball Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 80 ft (24.38 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Monochrome,Color |
| Field of View | 85 - 32° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.7 mm (0.11") |
| Maximum Focal Length | 13.5 mm (0.53") |
| Lens Included | Yes |
| Optical Zoom | 5x |
| Exposure | |
| Shortest Shutter Speed | 1/30000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Power Source Type | DC,AC |
| Physical Characteristics | |
| Mount Type | Ceiling Mount,Junction Box Mount,Wall Mount |
| Form Factor | Ball |
| Durability | Water Resistant,Dust Resistant,Impact Resistant,Vandal Resistant |
| Height | 4.80" (121.92 mm) |
| Diameter | 4.92" (124.97 mm) |
| Weight (Approximate) | 1.58 lb (716.68 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Built-in OSD Function,Automatic White Balance,Back Light Compensation (BLC),Auto Gain Control,Motion Detection,Wide Dynamic Range,Privacy Masking,Digital Noise Reduction,Day/Night |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the resolution and video quality of this camera?
The Digital Watchdog DWC-VA583WTIR captures video at 5 megapixels, with a maximum resolution of 2592 x 1944 pixels and a frame rate of 30 fps. This high-definition quality provides clear, detailed footage essential for identifying faces, license plates, and other critical details in security monitoring scenarios.
How far does the night vision reach, and what type is it?
This camera features infrared night vision with an effective range of 80 feet (24.38 meters). The infrared technology allows for reliable monochrome video capture in complete darkness, ensuring continuous surveillance capability during nighttime hours without requiring external lighting.
Is this camera suitable for outdoor use in harsh weather?
Yes, the camera is built for outdoor deployment with an IP67 rating, meaning it is completely dust-tight and can withstand immersion in water up to 1 meter for 30 minutes. It also operates across a wide temperature range from -4°F to 122°F (-20°C to 50°C), making it resilient in extreme weather conditions.
What mounting options are available for installation?
The ball form factor supports ceiling mount, junction box mount, and wall mount installations. This flexibility allows the camera to be positioned optimally for covering specific areas, whether under eaves, on building corners, or on vertical surfaces, adapting to various architectural requirements.
What power sources does the camera support?
The camera accepts both 12 V DC and 24 V AC power inputs, providing compatibility with standard surveillance power supplies or AC adapters. This dual-voltage support simplifies integration into existing security systems and offers installation flexibility in different electrical environments.
What warranty comes with the camera?
Digital Watchdog provides a 5-year limited warranty for the DWC-VA583WTIR, covering defects in materials and workmanship. This extended warranty period reflects the product's durability and reliability, offering long-term assurance for security investments in commercial or residential settings.
