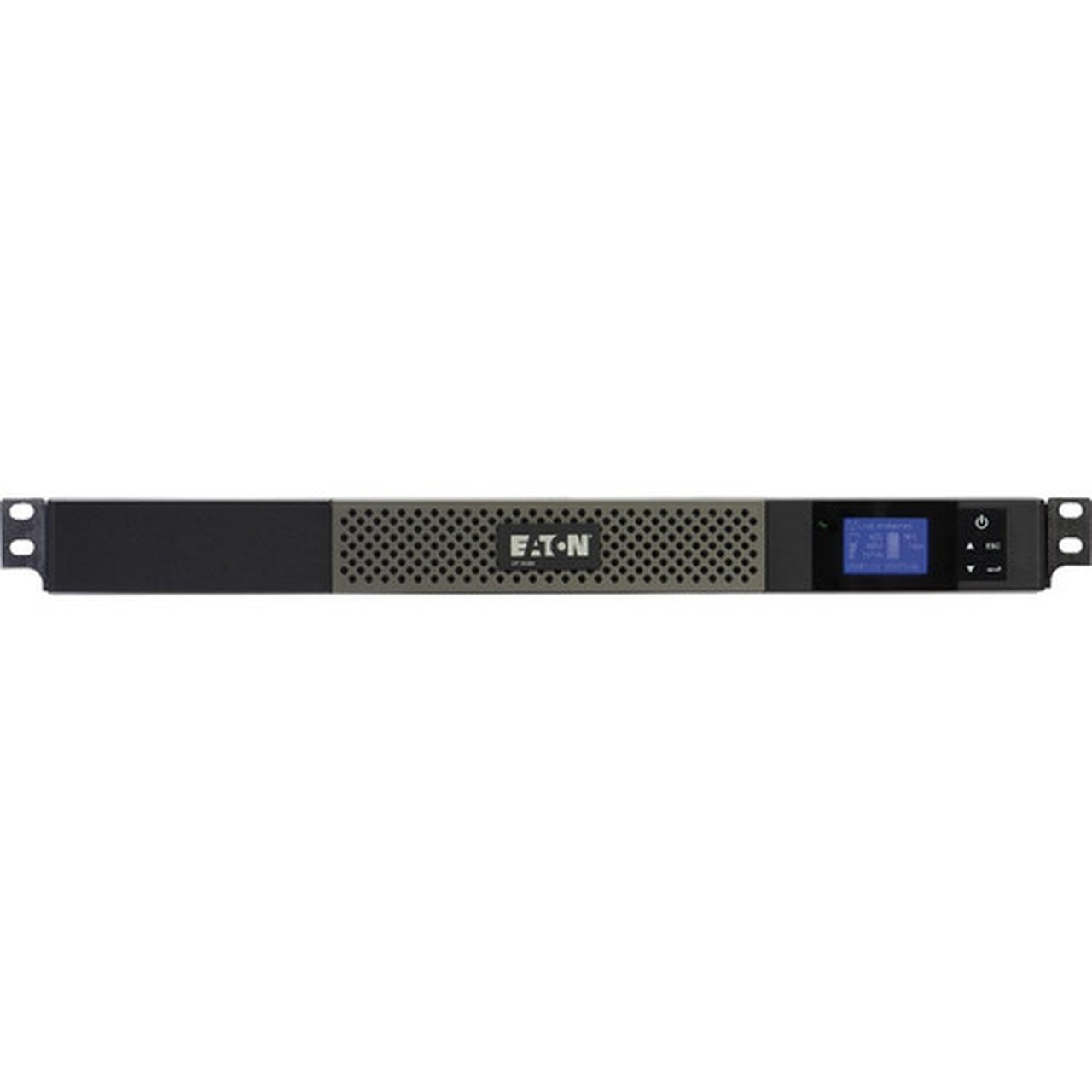

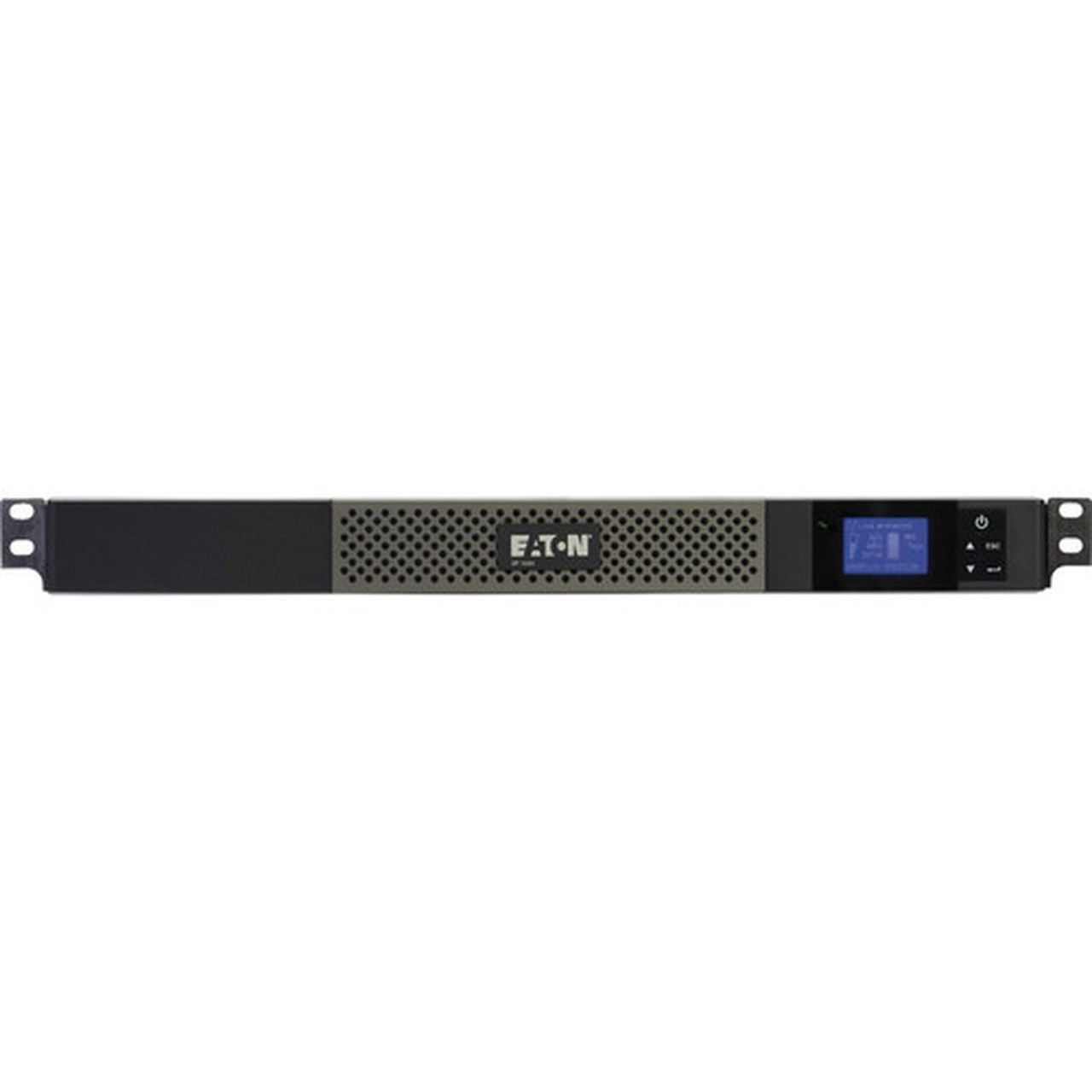

Eaton 5P Rackmount Uninterruptible Power Supply 1 kVA 770 W 132 V AC 5 Minute Stand-by NEMA 5-15R Rack-mountable Time UPS X 5P1000R
Write a Review
Eaton
Eaton 5P Rackmount Uninterruptible Power Supply 1 kVA 770 W 132 V AC 5 Minute Stand-by NEMA 5-15R Rack-mountable Time UPS X 5P1000R
-
Professional Pricing
B2B volume discount
-
IT Pro & Consultants
Real-world IT expertise
-
Configuration Service
Available on request
-
In-Stock in Canada
Toronto - AB - BC - QC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- 5P Rackmount UPS
- User Manual CD
- Intelligent Power Software Suite CD
- Quick Start Guide
- USB Cable
- RS-232 Serial Cable
- 4-Post Rail Kit
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 5 x NEMA 5-15R
Load Capacity (VA): 1 kVA
Load Capacity (Watt): 770 W
Input Voltage: 110 V AC
Output Voltage: 132 V AC,120 V AC,125 V AC
USB: Yes
Network (RJ-45): Yes
Battery Characteristics: Maintenance-free, Sealed
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 5 Minute
Backup/Run Time (Half Load): 12 Minute
Hot Swappable: Yes
Height: 1.70" (43.18 mm)
Width: 17.20" (436.88 mm)
Depth: 20" (508 mm)
Rack Height: 1U
Form Factor: Rack-mountable
Weight (Approximate): 32.50 lb (14741.75 g)
Package Contents:
Software Included: Intelligent Power Software Suite
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Provides 20% more wattage compared to traditional UPS systems to protect devices
- Exclusive ABM technology with 3-stage charging increases internal battery life by 50%
- 5-button graphical LCD offers critical UPS data and load status at a glance
- Optional NETWORK-M2 Gigabit network card enables full remote access and control
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 5P1000R |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Eaton |
| Product Model | 5P |
| Product Name | 5P Rackmount UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 5 x NEMA 5-15R |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 770 W |
| Input Voltage | 110 V AC |
| Output Voltage | 132 V AC,120 V AC,125 V AC |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Characteristics | Maintenance-free, Sealed |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Hot Swappable | Yes |
| Physical Characteristics | |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 20" (508 mm) |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 32.50 lb (14741.75 g) |
| Miscellaneous | |
| Package Contents |
|
| Software Included | Intelligent Power Software Suite |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
3 Year
