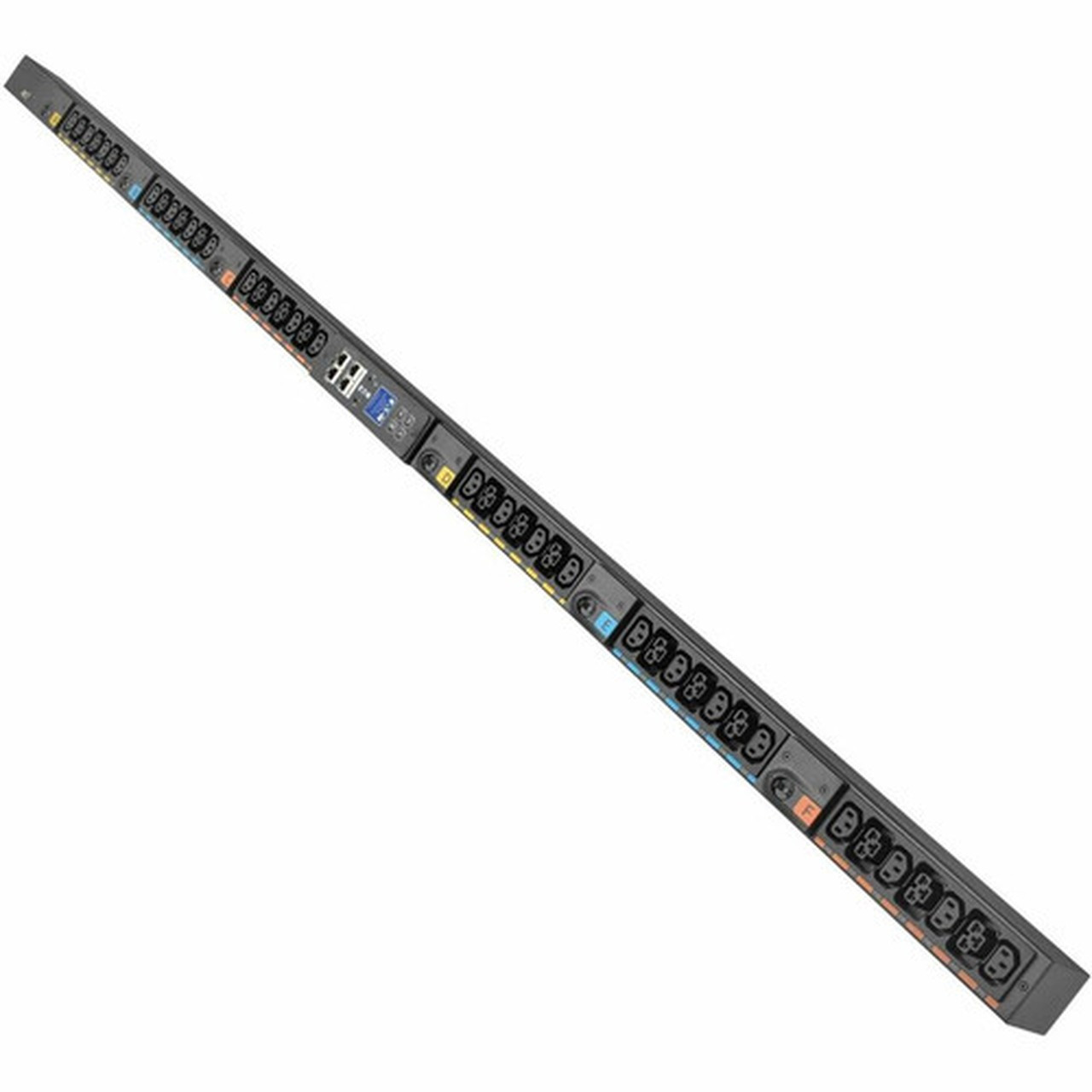

Eaton EVMAGU23X-E G4 Managed PDU - 42 Outlets - 23 kW - 24x C13 & 18x C39 - Vertical 0U Rack Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This managed PDU features a detailed outlet configuration with 24 IEC 60320 C13 and 18 IEC 60320 C39 receptacles, catering to a wide range of server, networking, and storage devices. The 23 kW power rating and 55 A input current ensure sufficient capacity for demanding IT loads. Network connectivity via RJ-45 allows for integration into existing management systems, providing real-time insights into power usage and health.
The unit's physical design emphasizes space efficiency with a vertical mounting orientation and 0U rack height. Dimensions of 72" height, 2.10" width, and 2.60" depth allow it to fit seamlessly into standard rack enclosures without consuming valuable U-space.
Relevant factors for this section include PDU Type, Plug/Connector Type, Receptacle Type, Power Rating (Watt). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Eaton G4 Managed PDU offers distinct advantages for power management in critical IT environments. Its managed functionality provides granular control over power distribution, allowing administrators to remotely monitor and manage individual outlets. This reduces downtime and improves troubleshooting capabilities.
High-Density Outlet Support
With 42 outlets, this PDU supports extensive equipment deployments in space-constrained racks, minimizing the need for additional power distribution units.
- 24 C13 outlets for standard server connections
- 18 C39 outlets for specialized equipment
- Universal input for flexible power sourcing
Enhanced Management Capabilities
Network connectivity enables integration with data center infrastructure management (DCIM) tools, providing visibility into power consumption and environmental conditions.
- Remote receptacle control
- Real-time monitoring
- Alerts for power anomalies
Deployment / Use Cases
This PDU is engineered for deployment in data centers, server rooms, and network closets where reliable and manageable power distribution is essential. Its vertical 0U design makes it particularly suitable for high-density rack environments where horizontal space is at a premium.
Common use cases include powering server racks in enterprise data centers, supporting networking equipment in telecommunications facilities, and providing distributed power in colocation environments. The managed features allow for proactive maintenance and energy optimization across these deployments.
Data Center Rack Power
Ideal for consolidating power distribution in server racks, reducing cable clutter and improving airflow management.
- Supports multiple servers and switches
- Vertical mounting saves U-space
- Managed features aid in capacity planning
Network Equipment Support
Provides reliable power to networking gear with the outlet mix accommodating both standard and specialized devices.
- C13 outlets for switches and routers
- C39 outlets for specific network appliances
- Remote management for distributed sites
Physical Profile
The Eaton G4 PDU features a vertical form factor with dimensions optimized for rack mounting. Measuring 72" in height, 2.10" in width, and 2.60" in depth, it installs along the side of standard server racks without consuming front or rear U-space. The 0U rack height designation indicates it mounts vertically in zero rack units, preserving horizontal space for equipment. The construction includes environmentally compliant materials meeting RoHS standards, and it is manufactured in the Philippines.
- Width
- 2.10" (53.34 mm)
- Depth
- 2.60" (66.04 mm)
- Height
- 0U
Highlights
- Managed PDU with remote monitoring and control of individual outlets
- 42 total outlets: 24 IEC 60320 C13 and 18 IEC 60320 C39
- 23 kW power rating with 55 A input current
- Universal input plug/connector type for flexible power sourcing
- Vertical 0U rack-mount form factor saves horizontal space
- Network connectivity via RJ-45 for integration with management systems
- Dimensions: 72" H x 2.10" W x 2.60" D (1828.80 mm x 53.34 mm x 66.04 mm)
- Environmentally compliant with RoHS certification
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | EVMAGU23X-E |
| Brand Name | Eaton |
| Product Series | G4 |
| Product Name | G4 42-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Managed |
| Plug/Connector Type | Universal Input |
| Receptacle Type | IEC 60320 C13,IEC 60320 C39 |
| Receptacle Detail | 24 x IEC 60320 C13,18 x IEC 60320 C39 |
| Power Description | |
| Power Rating (Watt) | 23 kW |
| Input Current | 55 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Form Factor | Vertical |
| Rack Height | 0U |
| Height | 72" (1828.80 mm) |
| Width | 2.10" (53.34 mm) |
| Depth | 2.60" (66.04 mm) |
| Miscellaneous | |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What is the power capacity of this Eaton PDU?
The Eaton EVMAGU23X-E G4 Managed PDU has a power rating of 23 kW (23,000 watts) with an input current of 55 A. This capacity supports high-density server and networking equipment in data center environments, providing sufficient power for multiple devices while maintaining safety margins.
How many outlets does this PDU have and what types are they?
This PDU features 42 total outlets, consisting of 24 IEC 60320 C13 receptacles and 18 IEC 60320 C39 receptacles. The C13 outlets are standard for server and networking equipment, while the C39 outlets accommodate specialized devices, offering flexibility for diverse IT infrastructure needs.
What does 'managed PDU' mean for this unit?
A managed PDU allows remote monitoring and control of individual power outlets via network connectivity. This Eaton model includes an RJ-45 port for integration into management systems, enabling administrators to view power consumption, remotely reboot devices, and receive alerts for power anomalies, enhancing operational efficiency and reliability.
How is this PDU mounted in a rack?
This PDU uses a vertical mounting orientation with a 0U rack height, meaning it installs along the side of a standard server rack without consuming horizontal U-space. Its form factor is vertical, with dimensions of 72" height, 2.10" width, and 2.60" depth, making it ideal for space-optimized rack deployments.
What is the input connector type on this PDU?
The PDU features a universal input plug/connector type, which accommodates various power sources and voltages. This flexibility allows it to be used in different geographical regions or with diverse power infrastructures, simplifying deployment in multi-site or international environments.
Does this PDU support network management?
Yes, this managed PDU includes network connectivity via an RJ-45 port. This enables integration with data center management software for monitoring power usage, controlling outlets remotely, and configuring alerts. It supports standard network protocols for seamless operation in existing IT environments.
