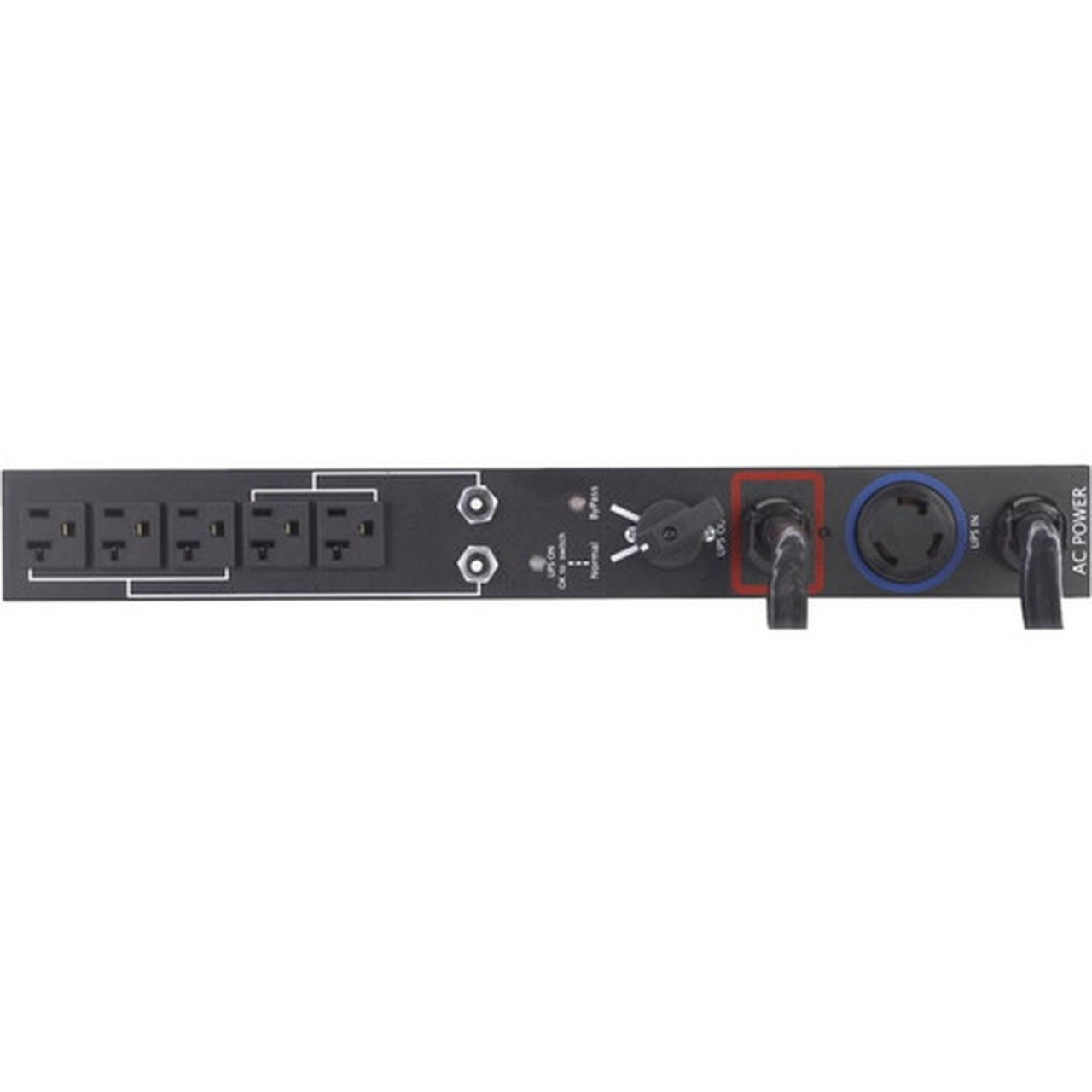

Eaton HotSwap MBP EHBPL3000R-PDU1U 5-Outlets PDU - Basic - NEMA L5-30P - 5 x NEMA 5-20R - 120 V AC - 2U - Horizontal - Rack-mountable (EHBPL3000R-PDU1U)
Write a Review
Eaton
Eaton HotSwap MBP EHBPL3000R-PDU1U 5-Outlets PDU - Basic - NEMA L5-30P - 5 x NEMA 5-20R - 120 V AC - 2U - Horizontal - Rack-mountable (EHBPL3000R-PDU1U)
- HotSwap MBP provides service continuity during UPS maintenance or upgrade
- Both units offer connections to all types of equipment
- Eases installation with flexible mounting options
- Minimal depth accommodates most space constraints
- Marketing Information:
Eaton provides five different functions for rack power distribution solutions. Two of these functions, FlexPDU and Maintenances Bypass PDU, were created as accessories specific to some of our UPSs. Both of these units offer the flexibility of connections to meet the demanding requirements of today's data center architects.
The HotSwap Maintenance Bypass (MBP) unit enables easy UPS replacement without interruption of the load. The HotSwap MBP is ideal when exchanging a unit or servicing a UPS. For added convenience, the HotSwap MBP offers two types of receptacles: 5-15R or 5-20R.
The FlexPDU is a basic function power distribution unit with a short power cord for easy, close mounting. FlexPDUs are available with 5-15R, 5-20R or L5-20R output receptacles, for connection to a wide range of equipment.
Both of these options allow for easy deployment, even in space-constrained environments. You have a variety of mounting options, including top and side mounting.
PDU Type: BasicPhase: Single PhasePlug/Connector Type: NEMA L5-30PReceptacle Type: NEMA 5-20RReceptacle Detail: 5 x NEMA 5-20RProtection Type: Circuit BreakerInput Voltage: 120 V ACInput Voltage Range: 110 V AC - 125 V ACPower Rating (Watt): 2.88 kWInput Current: 24 ARemote Outlet Switching: NoProduct Color: BlackMounting Orientation: HorizontalMount Type: Rack-mountableForm Factor: Hot-swappableRack Height: 2UHeight: 2.10" (53.34 mm)Width: 3.80" (96.52 mm)Depth: 17.30" (439.42 mm)Application/Usage: Data CenterLimited Warranty: 3 Year[custom-specifications]
Manufacturer: Eaton Corporation
Manufacturer Part Number: EHBPL3000RPDU1U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Line: HotSwap MBP
Product Model: EHBPL3000R-PDU1U
Product Name: HotSwap MBP EHBPL3000R-PDU1U 5-Outlets PDU
Product Type: PDU
Technical Information
PDU Type: Basic
Phase: Single Phase
Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 5 x NEMA 5-20R
Protection Type: Circuit Breaker
Power Description
Input Voltage: 120 V AC
Input Voltage Range: 110 V AC - 125 V AC
Power Rating (Watt): 2.88 kW
Input Current: 24 A
Management
Remote Outlet Switching: No
Physical Characteristics
Product Color: Black
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Form Factor: Hot-swappable
Rack Height: 2U
Height: 2.10" (53.34 mm)
Width: 3.80" (96.52 mm)
Depth: 17.30" (439.42 mm)
Miscellaneous
Application/Usage: Data Center
Warranty
Limited Warranty: 3 Year
[/custom-specifications]
