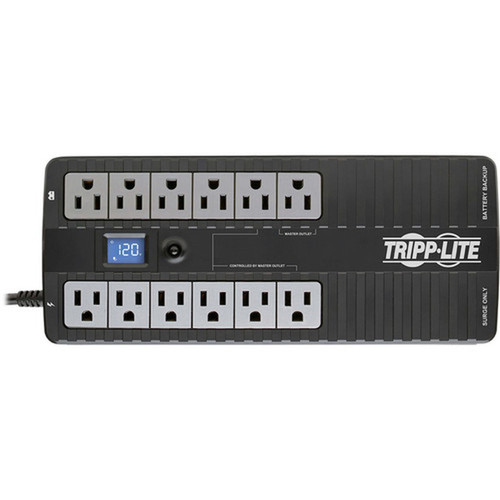

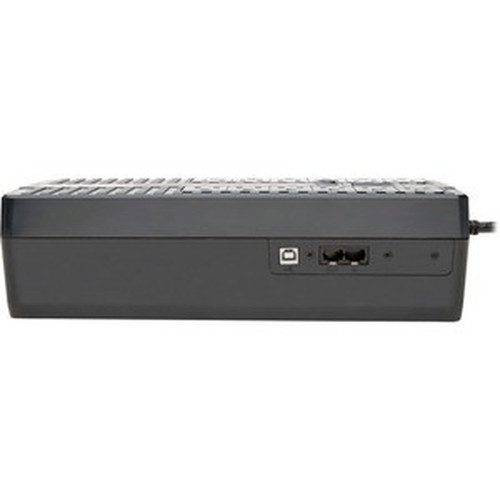

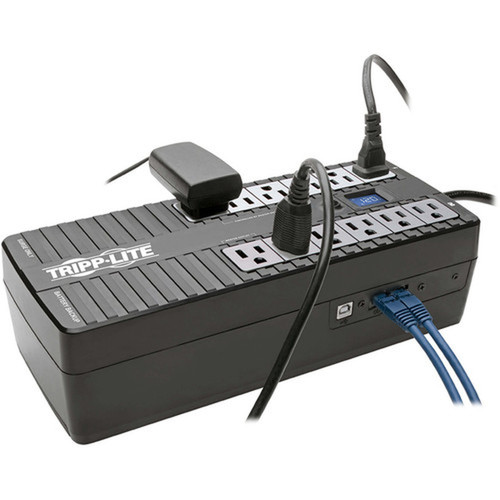

Tripp Lite by Eaton ECO850LCD 850VA Ultra-compact UPS - 425W Desktop/Tower/Wall Mount with Green LCD - 12 Outlets - 2.3 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Tripp Lite by Eaton ECO850LCD is an 850VA ultra-compact standby UPS engineered to deliver reliable power backup and surge protection for home and small office environments. This unit provides 425 watts of continuous output power, supporting critical equipment during blackouts, brownouts, and voltage fluctuations with a 6ms transfer time that minimizes disruption. Its compact desktop/tower/wall mount form factor integrates a green touchscreen LCD that displays real-time operating data including input/output voltage, frequency, and load capacity for proactive power management.
With 12 NEMA 5-15R outlets—six battery-backed and six surge-only—the ECO850LCD offers flexible power distribution for computers, networking gear, home theater systems, and digital signage. The unit features a pulse-width modulated sine wave output that ensures compatibility with sensitive electronics, while built-in EMI/RFI noise filtering and 316-joule surge protection provide additional defense against line noise and transient surges. ENERGY STAR certification confirms energy-efficient operation that reduces electricity consumption and supports sustainable IT practices.
Technical Overview
This UPS operates on a single-phase 120V AC input with a 10A current rating, delivering adjustable output voltages of 110V, 115V, and 120V AC at a stable 60Hz frequency. The pulse-width modulated sine wave output maintains compatibility with modern computing equipment, servers, and networking devices while the 6ms transfer time ensures minimal interruption during power events. The integrated 12V DC battery system supports a full-load runtime of 2.3 minutes and extends to 9 minutes at half load, with an 8-hour typical recharge cycle for rapid recovery.
The unit includes comprehensive protection features including a 316-joule surge energy rating, EMI/RFI noise filtering, and dataline protection via RJ-11 connections. The touchscreen LCD provides detailed status reporting for operating mode, input/output voltage and frequency, load capacity percentage, and battery condition. USB connectivity with HID compliance enables monitoring and management through compatible software, while replaceable battery design simplifies maintenance and extends product lifespan.
Key Product Advantages
The ECO850LCD combines high-density power protection with user-friendly monitoring and versatile installation options. Its ultra-compact design saves space while supporting desktop, tower, or wall-mount configurations, making it ideal for constrained environments.
Real-Time Monitoring
The green touchscreen LCD provides instant visibility into operating mode, voltage, frequency, and load capacity, enabling proactive power management.
- Displays input/output voltage and frequency
- Shows load capacity percentage
- Reports battery status and alarms
Comprehensive Protection
Beyond battery backup, the unit safeguards connected equipment against surges, line noise, overvoltages, and brownouts.
- 316-joule surge protection
- EMI/RFI noise filtering
- Dataline protection via RJ-11
Energy Efficiency
ENERGY STAR certification ensures reduced electricity consumption, lower operating costs, and environmental compliance.
- Meets strict energy-efficiency standards
- RoHS-compliant construction
- Supports sustainable IT operations
Deployment / Use Cases
This UPS is engineered for environments where reliable power is critical for operational continuity and equipment safety. Its 850VA/425W capacity and 12-outlet layout accommodate a wide range of devices, from individual workstations to integrated multimedia setups.
Typical applications include home offices, media centers, kiosks, desktop computers, home theaters, digital signage, routers, printers, TVs, gaming consoles, ATMs, and security systems. The compact form factor allows placement under desks, on shelves, or mounted vertically to optimize floor space.
Small Office & Home Office
Protect computers, monitors, printers, and networking equipment from power interruptions, ensuring uninterrupted workflow and data integrity during outages.
Digital Signage & Kiosks
Maintain uptime for public-facing displays and interactive kiosks, preventing disruptive shutdowns and extending hardware lifespan in retail, hospitality, or corporate settings.
Physical Profile
The ECO850LCD features a sleek black enclosure measuring 3.50" H x 5.12" W x 12.20" D (88.90 mm x 130.05 mm x 309.88 mm), with an approximate weight of 6.81 lb (3090 g). Its ultra-compact footprint facilitates placement in tight spaces, while the integrated mounting options support desktop, tower, or wall installation for flexible deployment.
- Width
- 5.12" (130.05 mm)
- Depth
- 12.20" (309.88 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 6.81 lb (3090 g)
What's in the Box
The package includes all necessary components for immediate setup and operation.
Package contents include ECO850LCD 850 VA Desktop UPS USB Cable Instruction Manual, ECO850LCD 850 VA Desktop UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 850VA/425W ultra-compact UPS with 12 NEMA 5-15R outlets
- 2.3-minute full-load runtime and 9-minute half-load runtime
- Green touchscreen LCD for real-time voltage, frequency, and load monitoring
- Desktop, tower, or wall-mount form factor for flexible installation
- EMI/RFI noise filtering and 316-joule surge protection
- ENERGY STAR certified for energy efficiency
- Replaceable battery with 8-hour typical recharge time
- 3-year limited warranty with $100,000 connected equipment insurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | ECO850LCD |
| Brand Name | Tripp Lite series |
| Product Series | ECO |
| Product Model | ECO850LCD |
| Product Name | 850VA Ultra-compact Green LCD UPS Systm |
| Packaged Quantity | 1 Each |
| Product Type | Standby UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Dataline Protection | RJ-11 |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage | Home/Office,Media Center,Kiosk,Desktop Computer,Home Theater,Digital Signage,Router,Printer,TV,Blu-ray Player,Gaming Console,ATM,Security System |
| Power Description | |
| Load Capacity (VA) | 850 VA |
| Load Capacity (Watt) | 425 W |
| Input Voltage | 120 V AC |
| Input Current | 10 A |
| Output Voltage | 110 V AC,115 V AC,120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
| Management | |
| Alarm | Battery Backup,Fault,Low Battery,Overload,Replace Battery |
| Controls/Indicators | |
| Status Indicators | Touchscreen LCD reports operating mode, input/output voltage, input/output frequency and load capacity |
| Interfaces/Ports | |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 2.30 Minute |
| Backup/Run Time (Half Load) | 9 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.50" (88.90 mm) |
| Width | 5.12" (130.05 mm) |
| Depth | 12.20" (309.88 mm) |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 6.81 lb (3090 g) |
| Miscellaneous | |
| Package Contents | ECO850LCD 850 VA Desktop UPS USB Cable Instruction Manual |
| Energy Star | Yes |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 year warranty. 100,000 connected equipment insurance (USA, Puerto Rico, & Canada Only). |
User Manual
FAQ
What is the power capacity of the Tripp Lite ECO850LCD UPS?
The Tripp Lite ECO850LCD UPS has a power capacity of 850 VA (volt-amperes) and 425 watts. This capacity supports critical equipment like computers, networking devices, and home theater systems during power outages, providing sufficient backup for small office and home office environments.
What are the runtime specifications for this UPS at full and half load?
At full load, the UPS provides a backup runtime of 2.3 minutes, while at half load, it extends to 9 minutes. These runtimes allow time for safe shutdowns of connected equipment during blackouts, ensuring data integrity and preventing hardware damage in applications such as digital signage or security systems.
How many outlets does the ECO850LCD have, and how are they configured?
The ECO850LCD features 12 NEMA 5-15R outlets, with 6 outlets offering battery backup and surge protection, and 6 outlets providing surge-only protection. This configuration allows flexible power distribution for devices like PCs, routers, printers, and entertainment systems, supporting up to 12 connected devices simultaneously.
What input and output voltage details are supported by this UPS?
This UPS operates on a single-phase 120V AC input and delivers adjustable output voltages of 110V, 115V, and 120V AC at a stable 60Hz frequency. The pulse-width modulated sine wave output ensures compatibility with sensitive electronics, making it suitable for North American power standards in home and office settings.
Is the Tripp Lite ECO850LCD designed for rack, tower, or wall mount deployment?
The ECO850LCD is designed as an ultra-compact unit that supports desktop, tower, or wall mount configurations. Its small footprint (3.50" H x 5.12" W x 12.20" D) and versatile mounting options make it ideal for space-constrained environments like under desks, on shelves, or in media centers.
What management and connectivity options are included with this UPS?
The UPS includes a green touchscreen LCD for real-time monitoring of operating mode, voltage, frequency, and load capacity. It also features USB connectivity with HID compliance for software management, replaceable battery design for easy maintenance, and dataline protection via RJ-11 connections to safeguard phone or network lines.
