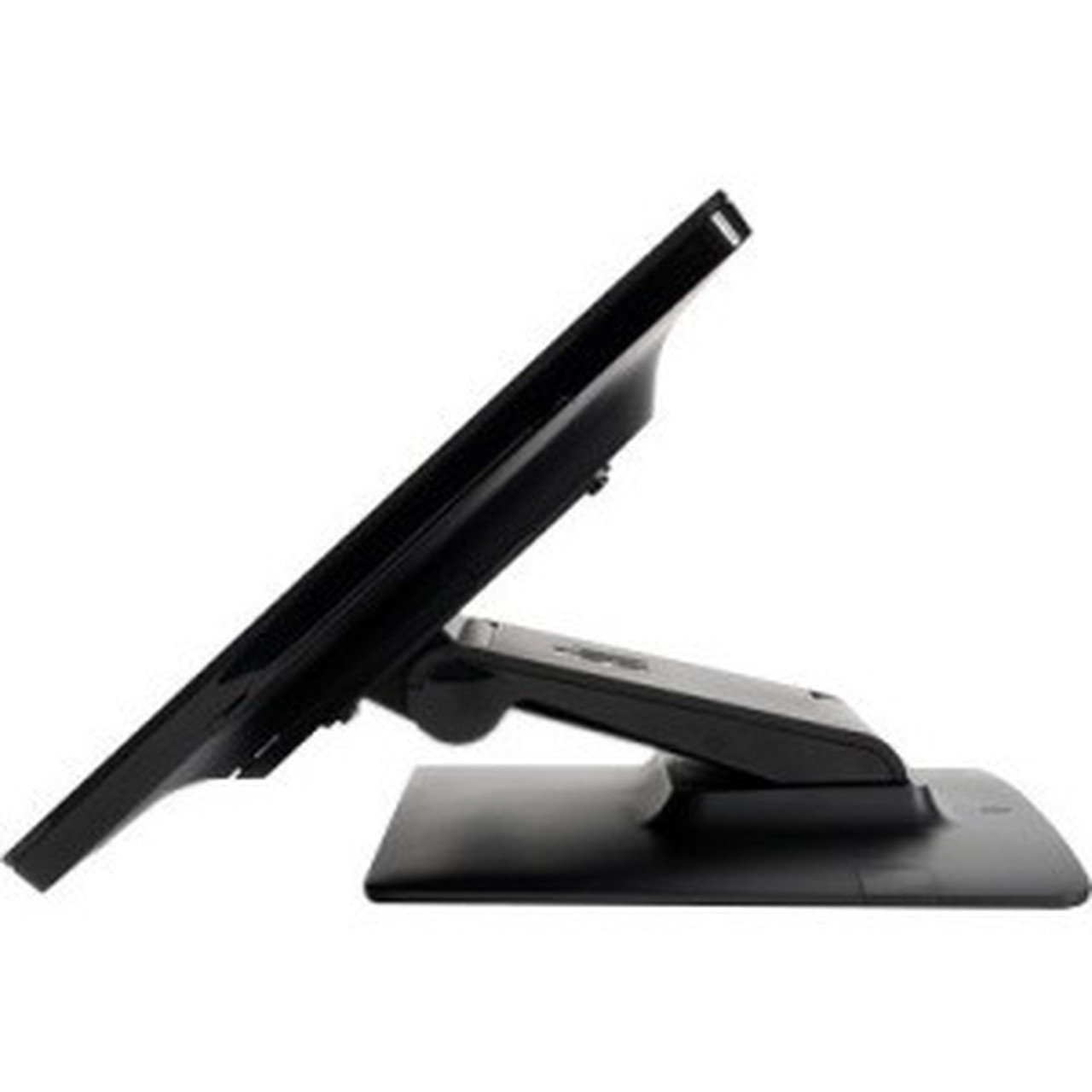

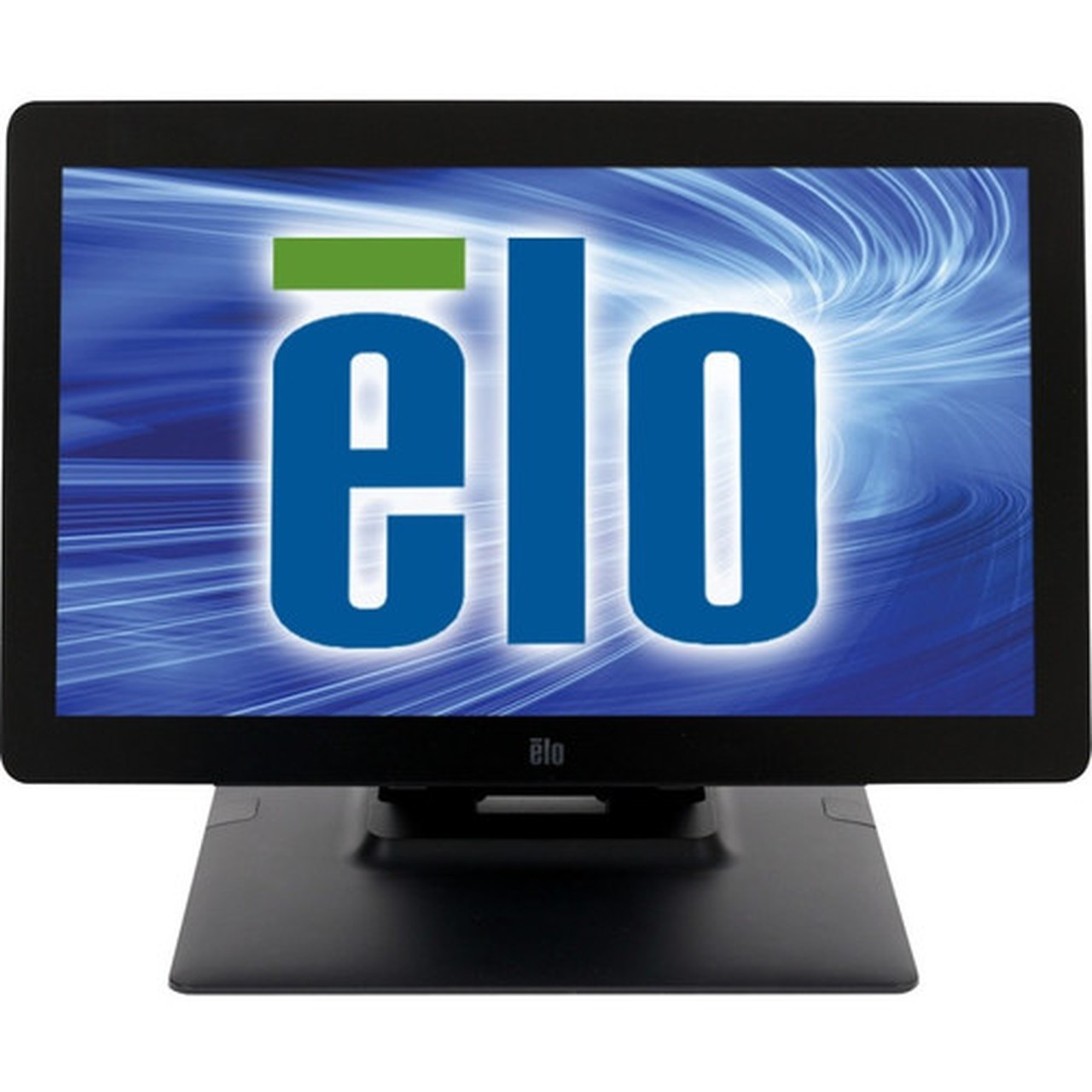

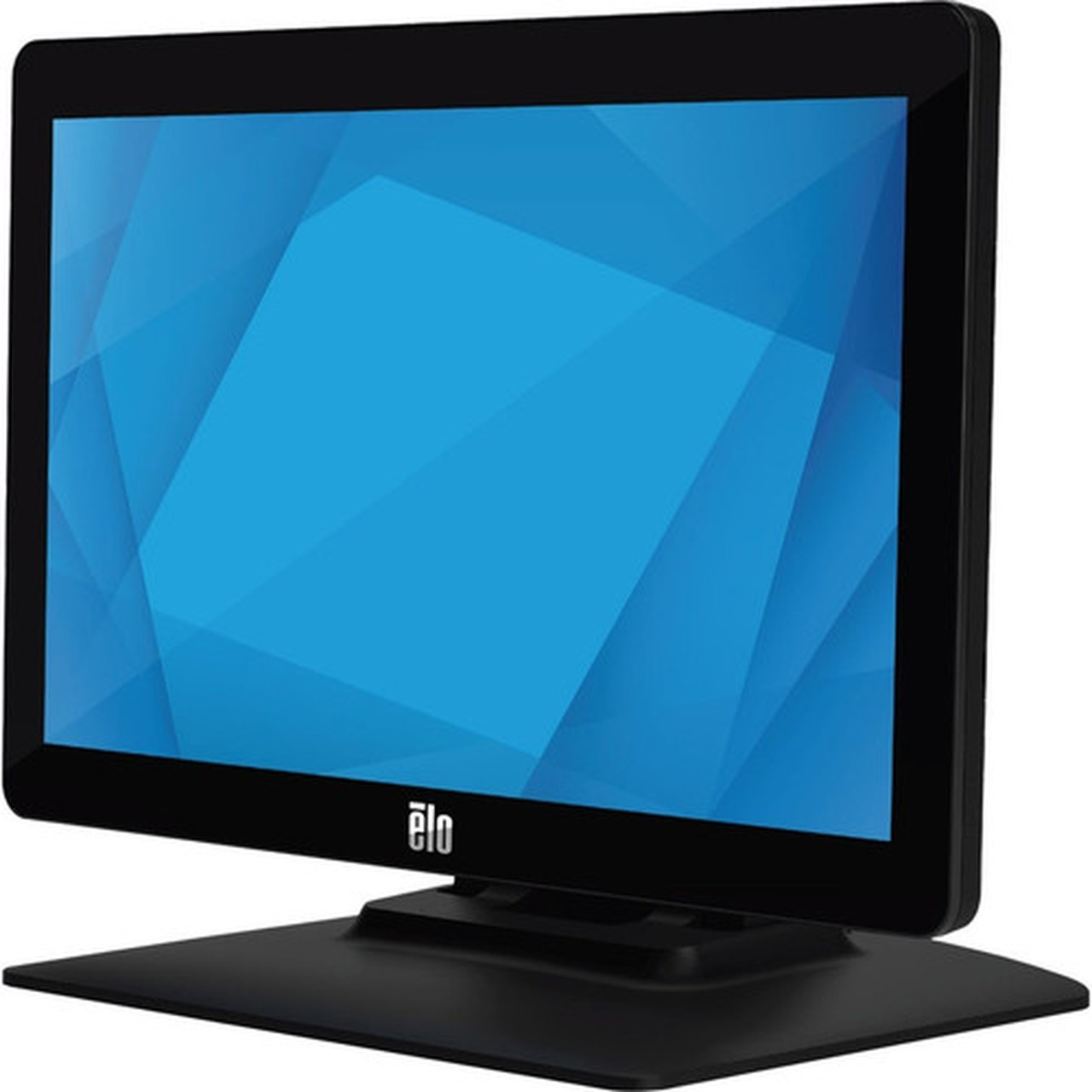

Elo 1502L 16" Class LCD Touchscreen Monitor - 16:9 - 10 ms - 15.6" Viewable - IntelliTouch Pro Projected Capacitive - 10 Point(s) - x (E318746)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Screen Size Class: 16"
Viewable Screen Size: 15.6"
Screen Mode: HD
Panel Technology: Thin Film Transistor (TFT)
Response Time: 10 ms
Aspect Ratio: 16:9
Horizontal Viewing Angle: 90°
Vertical Viewing Angle: 65°
Mount Type: Wall Mountable,Pole Mount
Placement: Tabletop
Backlight Technology: LED
Features: Anti-glare,On-screen Display (OSD),Security Lock,Landscape/Portrait Viewable,Cable Lock Slot
Horizontal Frequency: 31.50 Hz to 60 Hz
Vertical Frequency: 60 Hz
Curved Screen: No
Stand Adjustments: Height
Maximum Resolution: 1366 x 768
Color Supported: 262,000 Colors
Contrast Ratio: 600:1
Native Contrast Ratio: 700:1
Brightness: 220 cd/m²
Speakers: Yes
Touchscreen Type: IntelliTouch Pro Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
HDMI: Yes
USB: Yes
VGA: Yes
Number of HDMI Inputs: 1
Webcam: No
Microphone: No
Operating Power Consumption: 10.20 W
Standby Power Consumption: 500 mW
Off-Mode Power Consumption: 200 mW
Color Family: Black
Product Color: Black
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height: 9.62" (244.35 mm)
Width: 15.24" (387.10 mm)
Depth: 1.29" (32.77 mm)
Weight (Approximate): 6.61 lb (3000 g)
Weight with Stand (Approximate): 6.72 lb (3050 g)
- Experience vivid colors and sharp contrast with hd lcd touchscreen monitor for immersive viewing
- HD touchscreen delivers HD resolution up to 1366 x 768 pixels for crisp visuals and smooth performance in everyday tasks
- Multi-touch activation with IntelliTouch Pro Projected Capacitive technology allows input from multiple fingers for intuitive gestures
- LED backlight enhances color range and contrast for lifelike visuals and smooth touch navigation
- The 220 cd/m² brightness ensures clear, consistent visuals for smooth and accurate touch response
- The 600:1 contrast ratio ensures vibrant colors and sharp details for immersive touch-based performance
- VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
- HDMI interface delivers premium audio and video quality with single-cable convenience for clutter-free connectivity
[custom-specifications]
| Specifications | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E318746 |
| Manufacturer Website Address | http://www.elotouch.com |
| Brand Name | Elo |
| Product Series | M |
| Product Model | 1502L |
| Product Name | M-Series 1502L 15-inch LED Touch Monitor |
| Packaged Quantity | 1 |
| Product Type | LCD Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 16" |
| Viewable Screen Size | 15.6" |
| Screen Mode | HD |
| Panel Technology | Thin Film Transistor (TFT) |
| Response Time | 10 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 90° |
| Vertical Viewing Angle | 65° |
| Mount Type | Wall Mountable,Pole Mount |
| Placement | Tabletop |
| Backlight Technology | LED |
| Features | Anti-glare,On-screen Display (OSD),Security Lock,Landscape/Portrait Viewable,Cable Lock Slot |
| Horizontal Frequency | 31.50 Hz to 60 Hz |
| Vertical Frequency | 60 Hz |
| Curved Screen | No |
| Stand Adjustments | Height |
| Video | |
| Maximum Resolution | 1366 x 768 |
| Color Supported | 262,000 Colors |
| Contrast Ratio | 600:1 |
| Native Contrast Ratio | 700:1 |
| Brightness | 220 cd/m² |
| Audio | |
| Speakers | Yes |
| Touchscreen Information | |
| Touchscreen Type | IntelliTouch Pro Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| Number of HDMI Inputs | 1 |
| Built-in Devices | |
| Webcam | No |
| Microphone | No |
| Power Description | |
| Operating Power Consumption | 10.20 W |
| Standby Power Consumption | 500 mW |
| Off-Mode Power Consumption | 200 mW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height | 9.62" (244.35 mm) |
| Width | 15.24" (387.10 mm) |
| Depth | 1.29" (32.77 mm) |
| Weight (Approximate) | 6.61 lb (3000 g) |
| Weight with Stand (Approximate) | 6.72 lb (3050 g) |
[/custom-specifications]
[custom-options]
| Product | Elo Tabletop Stand for 15" I-Series - Up to 15" Screen Support - Tabletop |
| SKU | E044162 |
| Sale Price | $97.95 |
| Product | Elo Magnetic Stripe Reader - Black |
| SKU | E001002 |
| Sale Price | $180.95 |
| Product | Targus ASF156W9USZ Privacy Screen Filter for Widescreen Notebook - For 15.6" (396.24 mm) Widescreen LCD Notebook - 16:9 - Glare Resistant - Anti-glare |
| SKU | ASF156W9USZ |
| Sale Price | $52.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
