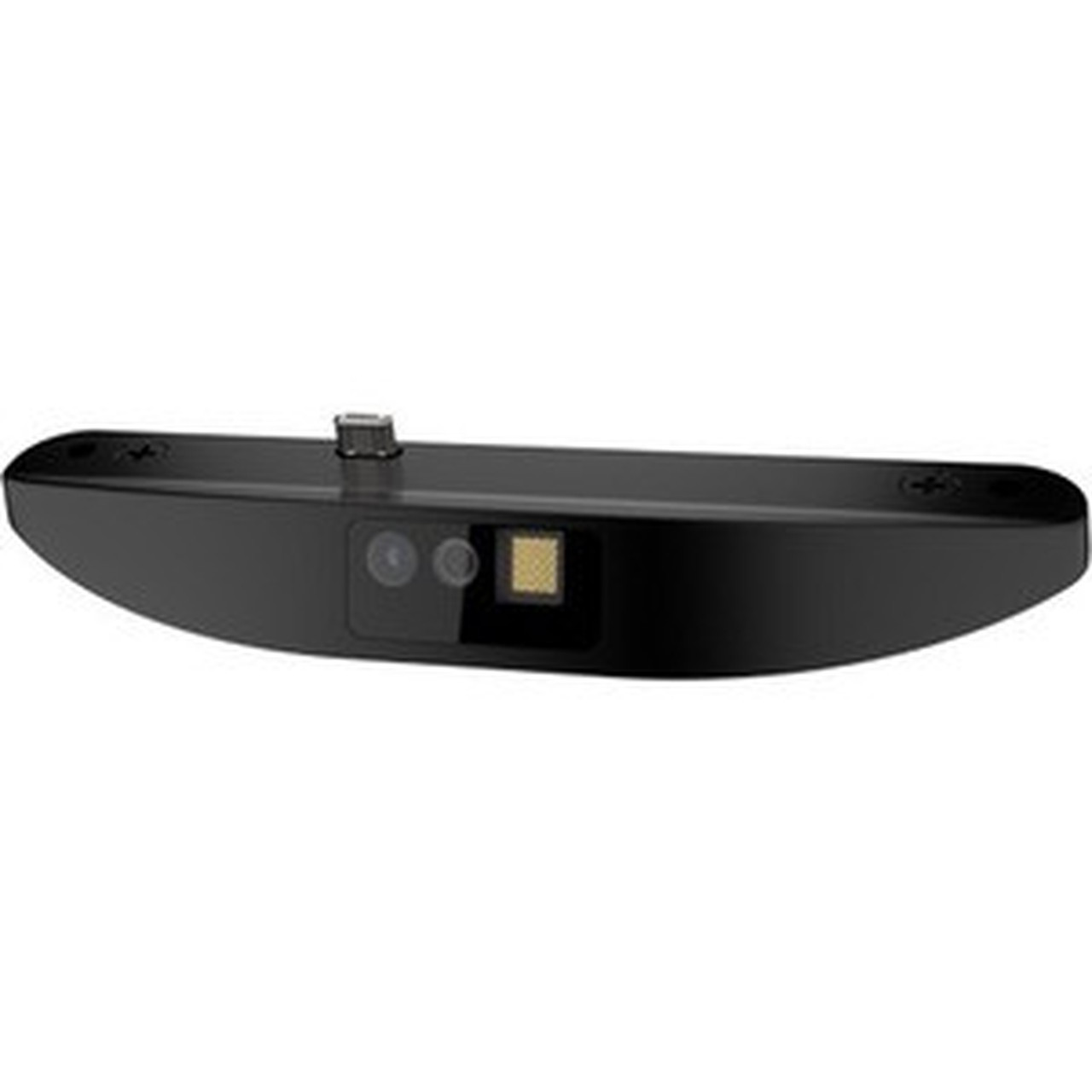

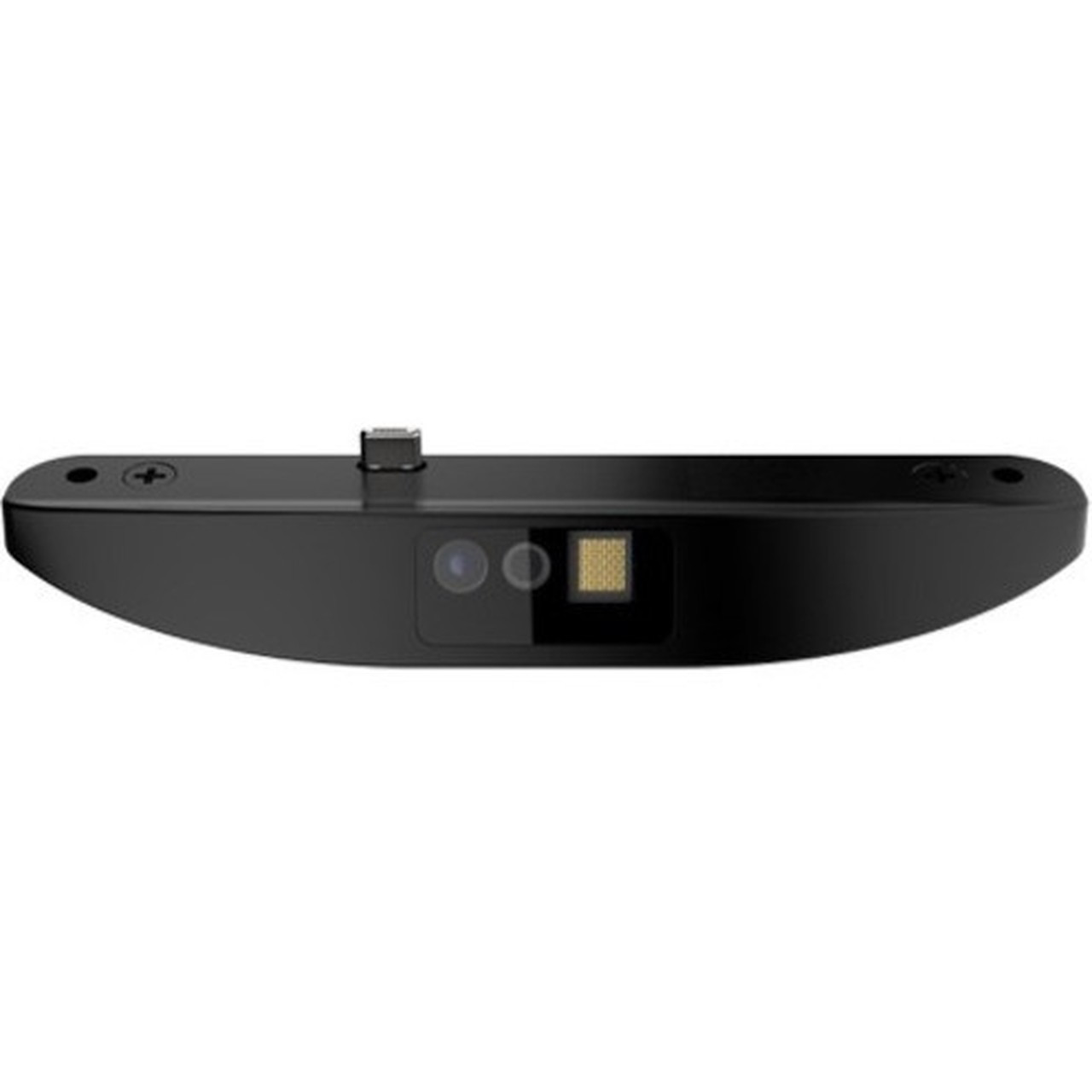

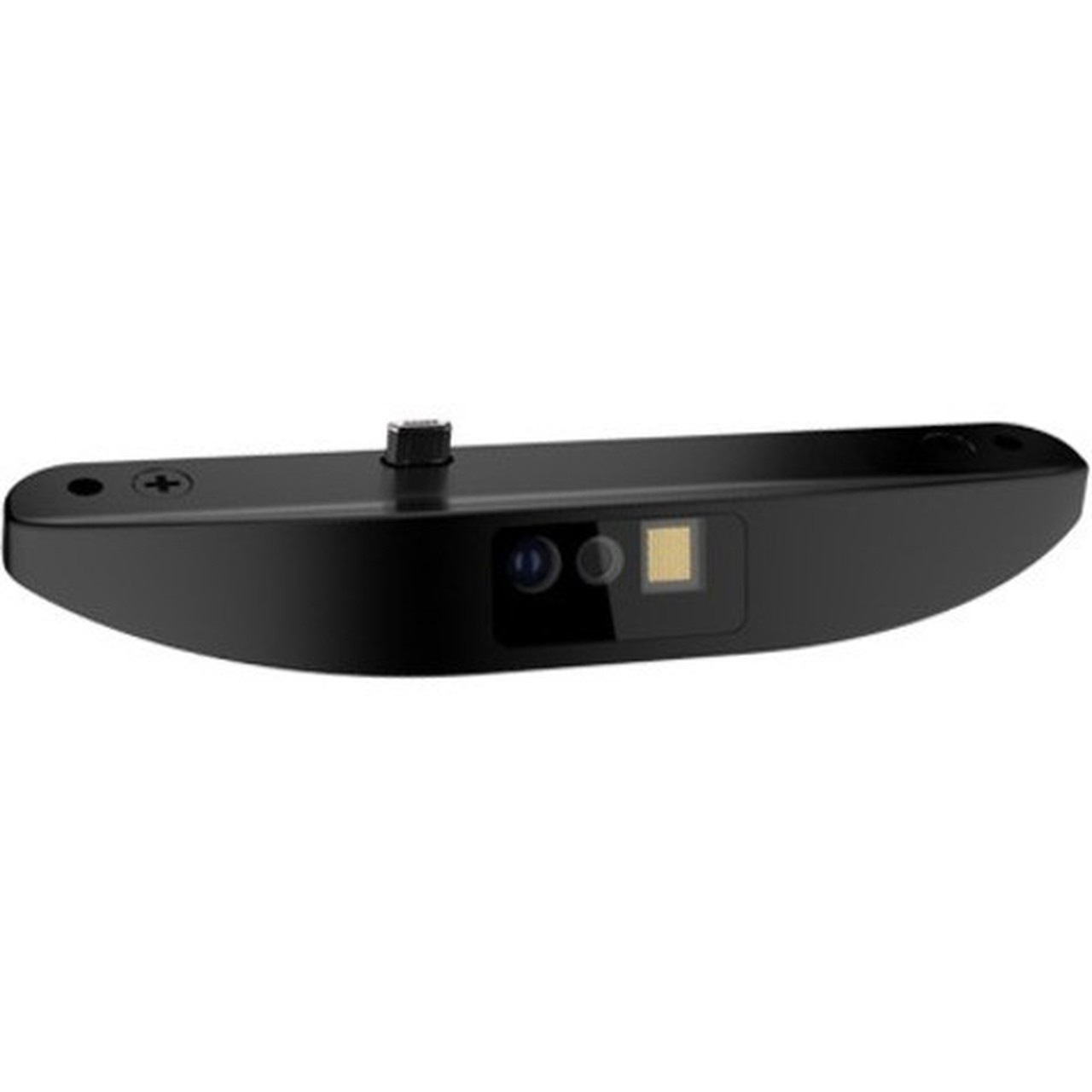

Elo E245047 - Elo Edge Connect 2D Barcode Scanner - Plug-in Card Connectivity - SE4107Scan Engine - 19.50" (495.30 mm) Scan Distance - (E245047)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
-
All major 1D
- PDF417
- MicroPDF417
- Data Matrix
- MaxiCode
- QR Code
- Micro QR Code
- Aztec
- Grid Matrix
- DotCode
- Macro PDF
- Us postnet
- Us planet
- Uk postal
- Australian postal
- Japan postal
- Dutch postal (kix)
- Mailmark
Connectivity Technology: Plug-in Card
Scanning Capability: 1D,2D
Barcode Symbology Supported: 1D:
Scan Engine Model: SE4107
Image Sensor Type: Imager
Scanning Distance: 19.50" (495.30 mm)
Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Reading Angle (Skew): 45°
Host Interface: USB
Form Factor: Modular
Color Family: Black
Product Color: Black
Height: 0.80" (20.32 mm)
Width: 4.70" (119.38 mm)
Depth: 1" (25.40 mm)
Weight (Approximate): 0.78 oz (22 g)
[custom-specifications]
| Specifications | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E245047 |
| Manufacturer Website Address | http://www.elotouch.com |
| Brand Name | Elo |
| Product Model | E245047 |
| Product Name | E245047 - Elo Edge Connect 2D Barcode Scanner |
| Packaged Quantity | 1 |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Plug-in Card |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
|
| Scan Engine Model | SE4107 |
| Image Sensor Type | Imager |
| Scanning Distance | 19.50" (495.30 mm) |
| Field of View (Horizontal) | 45° |
| Field of View (Vertical) | 34° |
| Reading Angle (Skew) | 45° |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Modular |
| Color Family | Black |
| Product Color | Black |
| Height | 0.80" (20.32 mm) |
| Width | 4.70" (119.38 mm) |
| Depth | 1" (25.40 mm) |
| Weight (Approximate) | 0.78 oz (22 g) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
