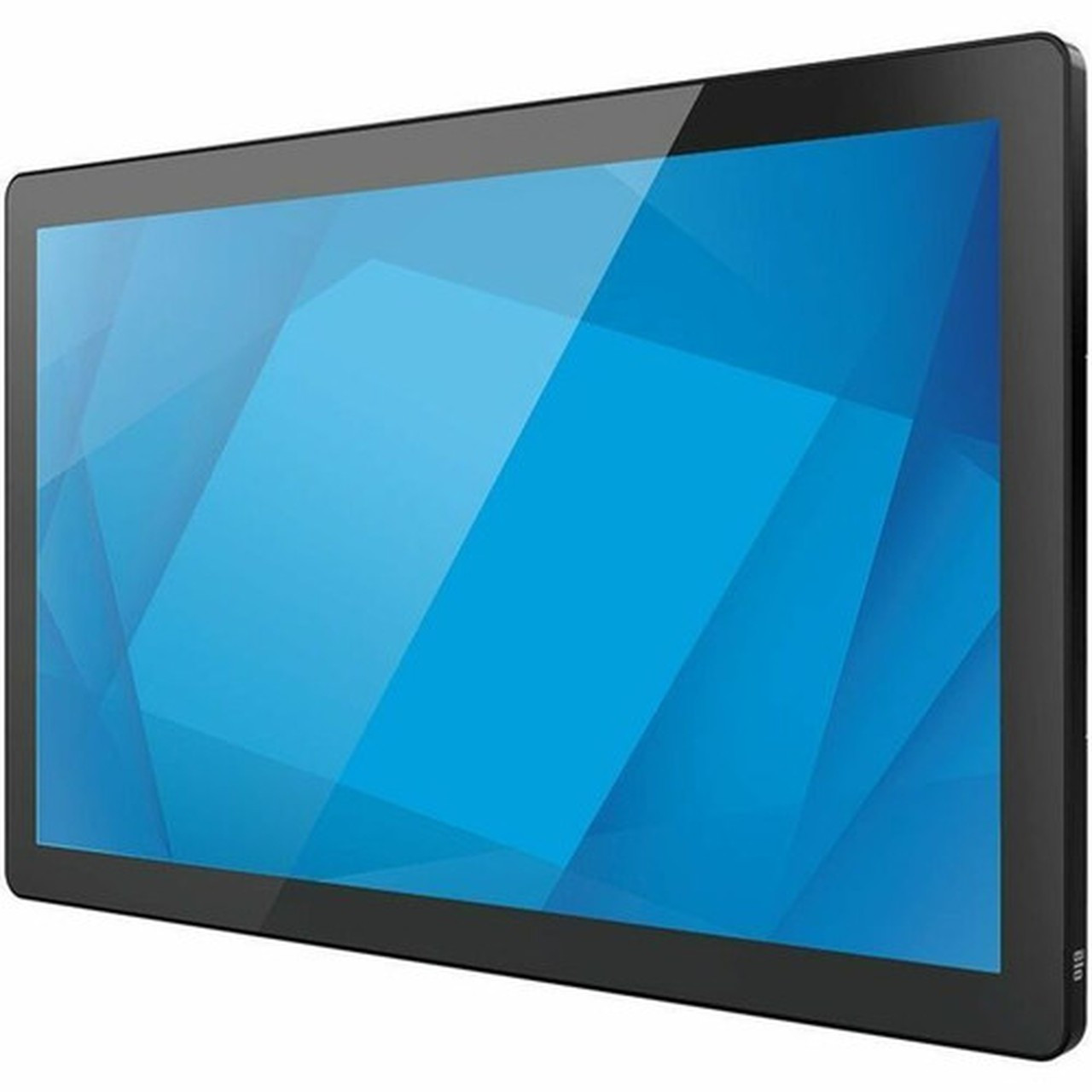

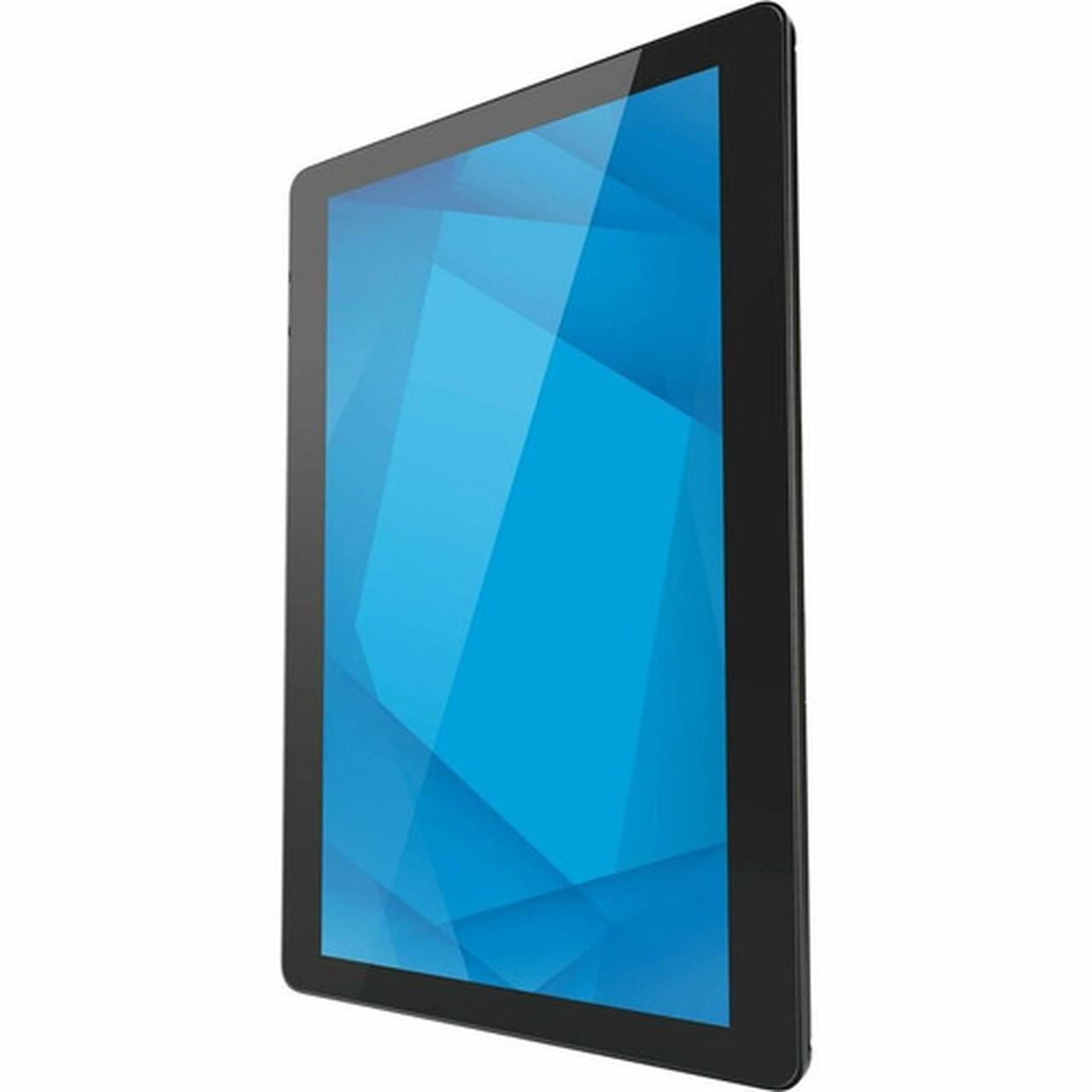

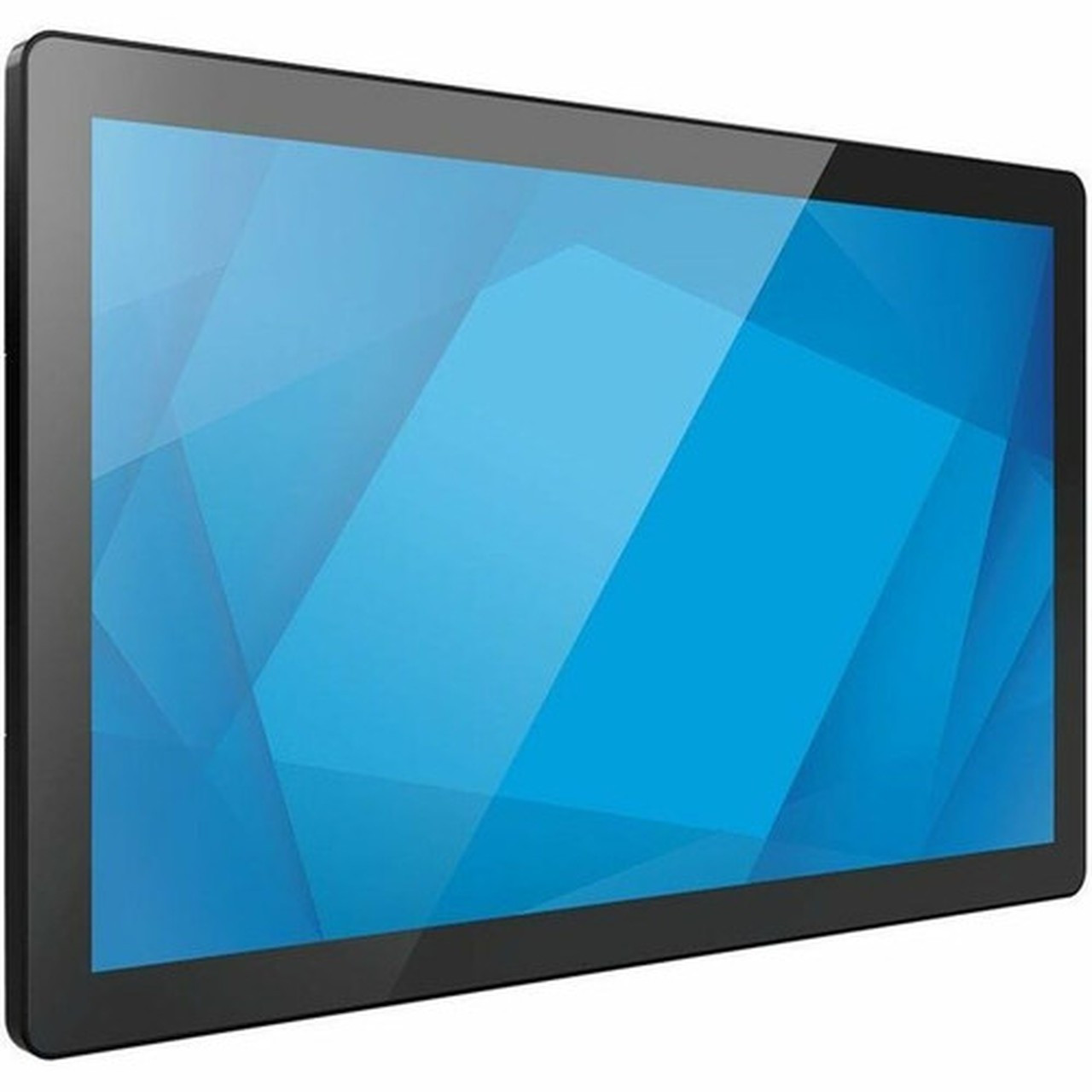

Elo I-Series 3 POS Terminal - Core i5 i5-1245UL 1.60 GHz - vPro Technology - 8 GB DDR5 SDRAM - 128 GB SSD M.2/PCI Express - Windows 10 (E608847)

Marketing Information:

Completely redesigned | I-Series 3 with Intel.

Brilliant and beautiful, | interactive platform.

10-touch Touch Pro PCAP, Fanless, IP54 rated design, Full HD IPS Touchscreen, Easy to clean edge-to-edge glass, 50,000 MTBF

Modular design.| Endless versatility.

Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Universal VESA Mount

Conveniently mount the I-Series with the built-in VESA mount.

Expand with Edge Connect

Seamlessly attach a variety of peripherals to the edge of the touchscreen.

Reliable, security and performance.

Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro and the Windows 10 operating system, the I-Series 3 delivers the dependability businesses need.

Cooling Fan: Fanless

Bluetooth: Yes

Bluetooth Standard: Bluetooth 5.3

Form Factor: All-in-One

Features: Edge-to-Edge Glass Design

Processor Type: Core i5

Processor Core: Deca-core (10 Core)

Processor Model: i5-1245UL

Processor Speed: 1.60 GHz

Maximum Turbo Speed: 4.40 GHz

Processor Cache: 12 MB

vPro Technology: Yes

Standard Memory: 8 GB

Maximum Memory Supported: 64 GB

Memory Technology: DDR5 SDRAM

Solid State Drive Capacity: 128 GB

Solid State Drive Interface: M.2/PCI Express

Screen Size: 23.8" (604.52 mm)

Active Display Size (Horizontal): 20.75" (527.05 mm)

Active Display Size (Vertical): 11.67" (296.42 mm)

Display Screen Type: LED

Screen Mode: Full HD

Panel Technology: In-plane Switching Technology (IPS)

Touchscreen: Yes

Touchscreen Technology: Projected Capacitive

Multi-touch Screen: Yes

Number of Simultaneous Touch Points: 10

Graphics Controller Model: Iris Xe Graphics

Color Supported: 16.7 Million Colors

Aspect Ratio: 16:9

Contrast Ratio: 1,000:1

Response Time: 16 ms

Horizontal Viewing Angle: 178°

Vertical Viewing Angle: 178°

Wireless LAN: Yes

Ethernet Technology: Gigabit Ethernet

USB: Yes

Powered USB: Yes

USB Type-C: Yes

Network (RJ-45): Yes

Serial Port: Yes

RJ-50: Yes

Number of Micro USB 2.0 Ports: 4

Number of Micro USB Ports: 4

Number of USB 3.0 Ports: 4

Number of USB Type C Ports: 1

Speaker Power: 2 W

Number of Speakers: 2

Operating System: Windows 10 IoT Enterprise LTSC (64-bit)

Color Family: Black

Product Color: Black

Mount Type: Table Mount

Weight (Approximate): 14.77 lb (6700 g)

Package Contents:

• I-Series 3 POS Terminal
• North America Power Cord
• European Power Cord
• Power Adapter - 180W
• Cable RJ-50 to DB-9
• Quick Installation Guide (QIG)
• Cable Tie
• VESA mounting screw

Ingress Protection (IP) Rating: IP54

Energy Star: Yes

Energy Efficiency Certification: ENERGY STAR 8.0

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
