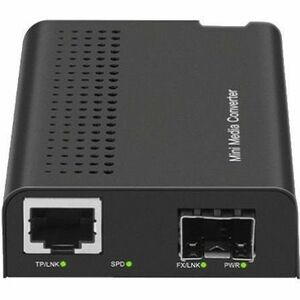

ECI Networks EN-MC-SFPRJ45 Unmanaged Mini Media Converter - 10/100/1000 Base-T to SFP - Gigabit Ethernet - Rack-Mountable/Standalone
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The converter features a single 10/100/1000Mbps auto-negotiation RJ-45 port that supports auto-MDI/MDIX, eliminating the need for crossover cables. It connects to an SFP slot that accepts industry-standard SFP modules, allowing flexibility in fiber type selection for multimode or singlemode applications.
Network technology compliance includes IEEE 802.3U, IEEE 802.3z, and IEEE 802.3ab standards for 1000Base-TX/FX operation. The device auto-negotiates half-duplex and full-duplex transfer modes, ensuring optimal performance across connected equipment.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter extends network distances significantly, supporting up to 2 km with multimode fiber or 160 km with singlemode/WDM fiber via SFP modules. Its unmanaged design ensures straightforward installation without complex configuration, while LED indicators provide immediate visual feedback on link status for both Ethernet and fiber connections.
Distance Extension
Overcomes copper distance limits by converting to fiber, enabling long-range network segments up to 160 km.
- 2 km with multimode fiber
- 160 km with singlemode/WDM fiber
Easy Deployment
Plug-and-play operation with auto-negotiation features reduces setup time and technical overhead.
- Auto-MDI/MDIX support
- Status LEDs for monitoring
Deployment / Use Cases
The EN-MC-SFPRJ45 is suited for scenarios where extending Ethernet networks beyond the 100-meter limit of copper cabling is necessary. It can be deployed in data centers, office buildings, or industrial settings to connect remote switches, servers, or endpoints over fiber infrastructure.
Use cases include linking separate floors or buildings within a campus, integrating fiber backbones into existing copper networks, or providing noise immunity in electrically noisy environments. The rack-mountable form factor allows integration into standard 1U chassis with 12 slots, while standalone use offers flexibility for temporary or small-scale installations.
Campus Networking
Connect buildings across large sites using fiber for high-speed, long-distance links between network equipment.
Data Center Integration
Bridge copper-based devices to fiber optic backbones in server rooms or networking closets.
Highlights
- Converts 10/100/1000Base-T Ethernet to SFP fiber optic interface
- Extends network distance up to 160 km with singlemode/WDM fiber
- 1 x RJ-45 port with auto-MDI/MDIX and auto-negotiation
- 1 x SFP slot for flexible fiber module selection
- Plug-and-play operation with no management required
- LED indicators for Ethernet and fiber link status
- Rack-mountable in 1U 12-slot chassis or standalone use
- Complies with IEEE 802.3 standards for Gigabit Ethernet
Specifications
| Specifications | |
|---|---|
| Manufacturer | E.C.I. NETWORKS |
| Manufacturer Part Number | ENMCSFPRJ45 |
| Brand Name | ECI Networks |
| Product Name | Unmanaged Mini Media Converter 10/100/1000 Base-T to SFP Based |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Maximum Distance Supported | 160 km (99.42 Mile) |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-TX,1000Base-FX |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Standalone |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
It converts electrical Ethernet signals from a standard RJ-45 port to optical signals for an SFP fiber interface, allowing you to extend network connections over fiber optic cabling. This bridges copper-based network segments to fiber infrastructure for longer distances and noise immunity.
What is the maximum distance supported?
The converter supports distances up to 160 km (99.42 miles) when used with singlemode or WDM fiber SFP modules. With multimode fiber modules, it can extend up to 2 km. The exact distance depends on the SFP module installed and fiber type.
Does it require configuration or management?
No, this is an unmanaged media converter with plug-and-play operation. It auto-negotiates speed, duplex mode, and MDI/MDIX settings automatically, so no manual configuration is needed. Simply connect the RJ-45 and SFP cables, and it begins converting signals immediately.
Can it be rack-mounted?
Yes, it is designed for rack-mountable installation in a standard 1U chassis that supports 12 slots, as well as standalone use on a desktop or shelf. This flexibility allows integration into organized rack environments or deployment as a standalone unit where rack space is limited.
