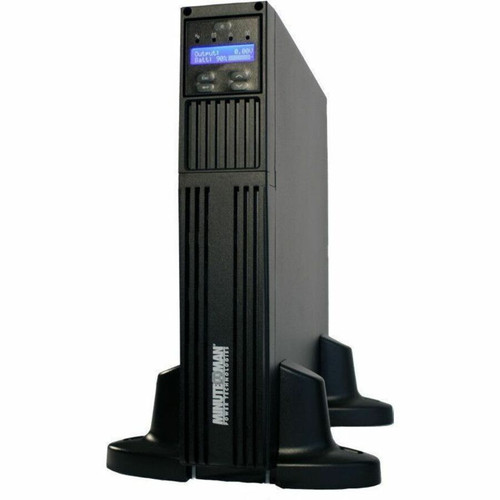

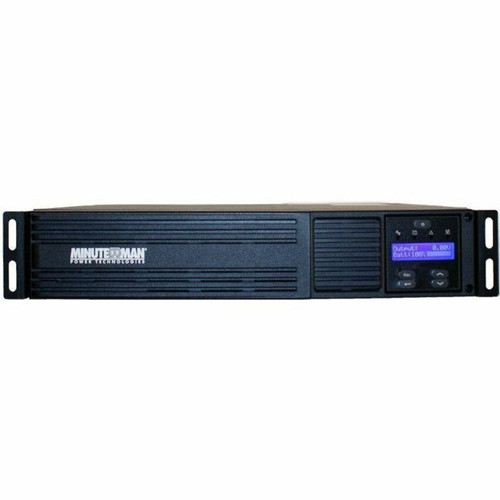

Minuteman EXR750RT2UNC 750VA/675W Line-Interactive UPS - 2U Rack/Tower - Wall Mountable - 8 Outlets - 7 Min Runtime - 120V AC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS operates with a 120 V AC input and output, supporting an input range from 80 V AC to 164 V AC and frequencies of 50 Hz or 60 Hz. The true sine wave output ensures compatibility with active PFC power supplies and sensitive equipment, while a 1000 J surge energy rating and circuit breaker provide robust protection against electrical disturbances.
Network management is enabled through RS-232 and an optional network card, allowing remote monitoring and control. The unit includes USB and RJ-45 ports for data line protection, plus an EPO port for emergency shutdown. Status indicators and alarms cover battery conditions such as low, weak, or depleted states, ensuring proactive maintenance.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The EXR750RT2UNC offers a balanced combination of capacity, runtime, and deployment flexibility for small to medium power backup needs. Its 750 VA and 675 W ratings handle critical loads, while the 7-minute full-load and 19-minute half-load runtimes provide sufficient time for safe shutdowns or generator startup.
Versatile Mounting
Install as a 2U rack unit, standalone tower, or wall-mounted device to fit space-constrained environments like network closets or security rooms.
- 2U Rack Height
- Wall Mountable
- Tower Option
Comprehensive Protection
Beyond battery backup, the UPS includes surge suppression, data line protection, and alarms for complete power quality management.
- 1000 J Surge Rating
- RJ-45 Protection
- Multi-State Alarms
Maintenance-Friendly Design
Hot-swappable and replaceable batteries allow for uninterrupted operation during maintenance, reducing downtime in critical applications.
- Hot Swappable Battery
- Replaceable Design
- LCD for Monitoring
Deployment / Use Cases
This UPS is engineered for environments where power stability is non-negotiable. Its 750 VA capacity and true sine wave output make it ideal for protecting network equipment, VoIP systems, and security devices from power fluctuations and outages.
In data centers and network closets, the 2U form factor optimizes rack space while providing backup for servers, switches, and storage. For educational or industrial settings, the wall-mount capability allows installation in distributed antenna systems or telephone infrastructure where floor space is limited.
Network Infrastructure
Safeguard routers, switches, and modems in small to medium network closets, ensuring continuous connectivity during power events.
- 8 Outlets
- Data Line Protection
- Network Management
Critical Systems Backup
Support security systems, DAS, and VoIP equipment with reliable runtime to maintain operations and prevent data loss.
- 7-Minute Runtime
- True Sine Wave
- EPO for Safety
Physical Profile
The UPS measures 3.48" (88.39 mm) in height, 18.96" (481.58 mm) in width, and 17.32" (439.93 mm) in depth, fitting standard 2U rack spaces. Its weight of approximately 41.70 lb (18914.80 g) ensures stability in rack or tower configurations, while the wall-mount option provides installation flexibility for tight spaces. The design supports operation up to 9842.52 ft (3000000 mm) elevation and 0% to 95% humidity ranges, accommodating diverse environmental conditions.
- Width
- 18.96" (481.58 mm)
- Height
- 3.48" (88.39 mm)
- Weight
- 41.70 lb (18914.80 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes the EXR750RT2UNC 750VA Rack/Tower UPS and necessary communication cables for immediate deployment.
Package contents include EXR750RT2UNC 750VA Rack/Tower UPS Comm. Cables, EXR750RT2UNC 750VA Rack/Tower UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 750 VA / 675 W line-interactive UPS for reliable power backup
- 2U rack-mount, tower, or wall-mount installation flexibility
- 8 NEMA 5-15R outlets to support multiple devices
- 7-minute full-load and 19-minute half-load runtime
- True sine wave output for sensitive electronics compatibility
- LCD display with status indicators and battery alarms
- Hot-swappable and replaceable battery design
- Network management via RS-232 and optional network card
- 1000 J surge energy rating and built-in bypass switch
- ENERGY STAR 2.0 certified and RoHS 2 compliant
Specifications
| Specifications | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | EXR750RT2UNC |
| Brand Name | Minuteman |
| Product Series | EXR |
| Product Model | EXR750RT2UNC |
| Product Name | EXR750RT2UNC 750VA Rack/Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Dataline Protection | RJ-45 |
| Cord Length | 10 ft (3.05 m) |
| Application/Usage | Critical System,Network,Data Center,Network Closet,Security System,Education,Electronic Equipment,Distributed Antenna System (DAS),Telephone System,VoIP |
| Surge Suppression | Yes |
| Features | Built-in Bypass Switch |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 675 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 80 V AC - 164 V AC |
| Input Current | 10 A |
| Output Voltage | 120 V AC |
| Input Frequency | 50 Hz,60 Hz |
| Waveform Type | True Sine Wave |
| Surge Energy Rating | 1000 J |
| Circuit Breaker | Yes |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | RS-232,Network Card |
| Alarm | On Battery,Low Battery,Battery Disconnected,Weak Battery,Battery Bad,Replace Battery,Depleted Battery |
| Controls/Indicators | |
| Status Indicators | LED |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 7 Minute |
| Backup/Run Time (Half Load) | 19 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Operating Humidity | 0% |
| Storage Relative Humidity | 95% |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 3.48" (88.39 mm) |
| Width | 18.96" (481.58 mm) |
| Length | 17.32" (439.93 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower,Wall Mountable |
| Weight (Approximate) | 41.70 lb (18914.80 g) |
| Miscellaneous | |
| Package Contents | EXR750RT2UNC 750VA Rack/Tower UPS Comm. Cables |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years / electronics and batteries |
User Manual
FAQ
What is the power capacity of the Minuteman EXR750RT2UNC UPS?
The Minuteman EXR750RT2UNC provides 750 VA and 675 W of power capacity. This rating supports critical loads such as network equipment, security systems, and VoIP devices, ensuring uninterrupted operation during power outages or fluctuations.
How long does the UPS run on battery power?
At full load, the UPS offers up to 7 minutes of runtime, while at half load, it extends to approximately 19 minutes. This provides sufficient time for safe shutdowns or transition to alternative power sources in environments like data centers or network closets.
What mounting options are available for this UPS?
The EXR750RT2UNC supports 2U rack-mount, standalone tower, and wall-mount installations. This flexibility allows deployment in space-constrained areas such as server racks, network closets, or wall-mounted enclosures for distributed systems.
How many outlets does the UPS have, and what type are they?
The UPS includes eight NEMA 5-15R outlets, providing connectivity for multiple devices. These outlets deliver protected power output, and the unit features a built-in bypass switch for maintenance without interrupting connected equipment.
What type of power output does this UPS provide?
This UPS delivers true sine wave output, which is essential for compatibility with active PFC power supplies and sensitive electronics. It ensures clean power delivery, reducing the risk of damage or malfunction during battery operation.
What management and monitoring features are included?
The UPS includes an LCD display for real-time status, plus RS-232 and optional network card support for remote management. Alarms cover battery conditions like low, weak, or depleted states, and it has USB and RJ-45 ports for data line protection.
What power capacity is listed for this UPS?
The listed power specification is 750 VA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
