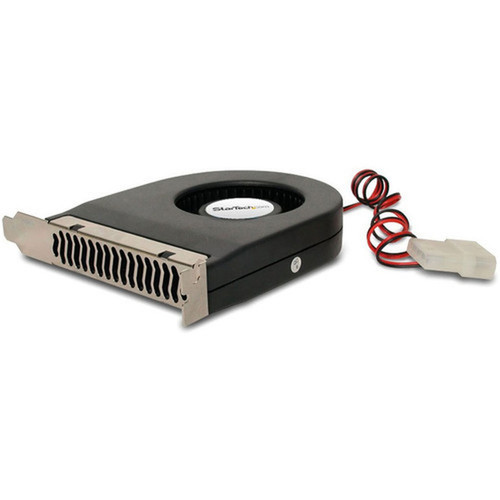

StarTech.com FANCASE Expansion Slot Rear Exhaust Cooling Fan - 2200 RPM Ball Bearing - 6.9 CFM - 32 dBA - LP4 Connector - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This cooling fan operates at 12V with a current draw of 0.15A and power consumption of 1.8W. The ball bearing design ensures consistent performance with a Mean Time Between Failures (MTBF) of 37,739 hours. The fan does not support PWM for variable speed control and runs at full speed when powered.
With dimensions of 0.80" height, 3.50" width, and 4.30" depth, the fan fits standard expansion slots while providing effective airflow. The black plastic housing maintains a neutral aesthetic that blends with most computer case interiors.
Relevant factors for this section include Fan Bearing Type, Fan Speed (Max), Maximum Airflow, Connectors. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FANCASE fan offers several advantages for system builders and IT professionals seeking to improve thermal management without modifying case structure.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Expansion Slot Mounting, Reliable Performance.
Expansion Slot Mounting
Installs directly into unused PCI expansion slots, eliminating the need for additional mounting hardware or case modifications.
- Fits standard full-height/full-profile cases
- Reversible bracket for flexible orientation
Reliable Performance
Ball bearing construction provides durable operation with consistent airflow delivery over extended periods.
- 37,739 hour MTBF
- 2200 RPM maximum speed
Deployment / Use Cases
This expansion slot fan serves multiple cooling scenarios in desktop computer environments. It effectively exhausts warm air that accumulates near expansion cards, helping to maintain optimal operating temperatures for GPUs and other PCIe devices.
The reversible mounting bracket allows configuration as either a top-to-rear or bottom-to-rear exhaust fan, providing flexibility for different case layouts and thermal requirements. This makes it suitable for gaming systems, workstations, and general-purpose desktops where additional targeted cooling is needed.
Relevant factors for this section include Fan Bearing Type, Fan Speed (Max), Maximum Airflow, Connectors. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Video Card Cooling
Position the fan to direct airflow across graphics cards, helping to dissipate heat from high-performance GPUs during intensive workloads.
Case Ventilation Enhancement
Add supplemental exhaust capacity to improve overall case airflow, particularly in systems with limited rear fan mounting options.
Physical Profile
The fan features a compact design with a 0.80" profile that fits standard expansion slots without interfering with adjacent components. The black plastic housing provides a clean appearance that matches most computer case interiors. At 3.60 ounces, the lightweight construction minimizes stress on the expansion slot while maintaining structural integrity.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.80" (20.32 mm), 3.50" (88.90 mm), 4.30" (109.22 mm), 32 dB(A). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.50" (88.90 mm)
- Depth
- 4.30" (109.22 mm)
- Height
- 0.80" (20.32 mm)
- Weight
- 32 dB(A)
Highlights
- Mounts in PCI expansion slots for easy installation
- Ball bearing fan with 2200 RPM maximum speed
- 6.9 CFM airflow capacity for effective cooling
- 32 dBA noise level for quiet operation
- Inline LP4 power connectors for simple wiring
- Reversible bracket for top or bottom air intake
- Black plastic housing blends with case interiors
- 37,739 hour MTBF for reliable performance
- 12V operation with 0.15A current draw
- 2-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | FANCASE |
| Brand Name | StarTech.com |
| Product Name | Expansion Slot Rear Exhaust Cooling Fan |
| Packaged Quantity | 1 Each |
| Product Type | Cooling Fan |
| Fan Information | |
| Fan Bearing Type | Ball Bearing |
| Fan Speed (Max) | 2200 rpm |
| Maximum Airflow | 6.90 CFM (11.72m³/h) |
| Noise Levels (A-Weighted) | 32 dB(A) |
| Interfaces/Ports | |
| Connectors | 4-pin LP4 Male,4-pin LP4 Female |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Plastic |
| Maximum Fan Diameter | 8.27" (210 mm) |
| Fan Height | 0.80" (20.32 mm) |
| Fan Width | 3.50" (88.90 mm) |
| Fan Depth | 4.30" (109.22 mm) |
| Weight (Approximate) | 3.60 oz (102.06 g) |
| Miscellaneous | |
| Application/Usage | Case |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What type of power connector does this fan use?
The StarTech.com FANCASE cooling fan uses standard 4-pin LP4 connectors, with both male and female connectors provided inline. This allows direct connection to power supply LP4 connectors without requiring adapters. The fan operates at 12V with a current draw of 0.15A and power consumption of 1.8W.
Can this fan be used to cool video cards?
Yes, this expansion slot fan is designed to help cool video cards and other expansion cards. By mounting in a PCI slot adjacent to graphics cards, it can direct airflow across GPU heatsinks to dissipate heat. The reversible bracket allows configuration to pull air from either the top or bottom of the case and exhaust it out the rear.
Does this fan support PWM speed control?
No, the FANCASE fan does not support PWM (Pulse Width Modulation) for variable speed control. When connected to power, the fan operates at its full speed of 2200 RPM. This provides consistent cooling performance but does not allow automatic speed adjustment based on temperature.
What is the noise level of this cooling fan?
The fan produces 32 dB(A) of noise at its maximum operating speed of 2200 RPM. This A-weighted measurement represents the sound pressure level as perceived by human hearing. At 32 dB(A), the fan operates quietly enough for most office and home environments while providing effective airflow.
What type of bearing does this fan use?
This cooling fan uses a ball bearing mechanism. Ball bearings provide reliable rotation with reduced friction compared to sleeve bearings, resulting in longer operational life. The manufacturer specifies a Mean Time Between Failures (MTBF) of 37,739 hours for this ball bearing design.
What are the environmental certifications for this product?
The FANCASE cooling fan complies with several environmental standards including RoHS (Restriction of Hazardous Substances), REACH (Registration, Evaluation, Authorization and Restriction of Chemicals), and WEEE (Waste Electrical and Electronic Equipment Directive). The product is also marked as environmentally friendly and manufactured in China.
