Fixed TV Wall Mount Bracket for Flat and Curved LCD/LEDs - Fits Sizes 37-70 inches - Maximum VESA 600x400 (FN-MT-347-BK)
Have questions?
Proud Canadian team since 2007
Consulting & Technicians services
From VoiP phone to Cluster servers
Shipped Trough UPS & Purolator
This LCD/LED fixed style TV wall mount bracket fits most 37 inch to 70 inch LCD displays with a maximum VESA hole pattern of 600x400. Its simple construction allows for easy installation and can be used in both residential and commercial environments.
Rail Security ScrewsThis TV mount has security screws that can hold the TV securely to the wall plate. Easy Installation and InexpensiveWith its simple construction, installation is quick, easy and cost-effective. |
Physical Characteristics
|
|
---|---|
Mounting Style | Fixed TV Wall Mount |
Color | Powder Coated Black |
Material | Steel |
Metal Sheet Thickness | Bracket Arm Thickness=1.4mm [0.055 inch] cold-rolled sheet Wall Plate Thickness=1.4mm [0.055 inch] cold-rolled sheet |

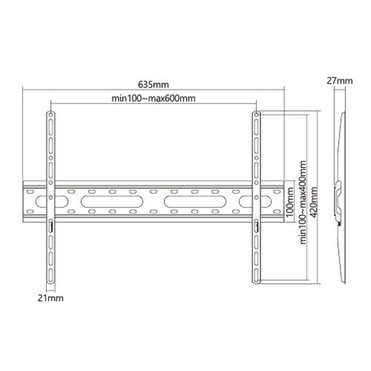

Dimensions | 635 x 420 x 27mm [25 x 16.5 x 1.1 inches] |
Mounting Pattern | VESA 200x200,300x200,400x200,300x300,400x300,400x400,600x400 |
Screen Size | 37 - 70 inches [93 - 177cm] |
Weight Capacity | 99 lbs [45kg] |
Profile | 27 mm [1.1 inch] |
Installation | Solid Wall |
Panel Type | Detachable Panel |
Wall Plate Type | Fixed Wall Plate |
Bubble Level | Hook-on Bubble Level (Included in Components Package) |
Fits Curved TV | Yes |
Tilt | No |
Direction Indicator | No |
Cable Management | No |
Anti-Theft | No |
Approvals
|
|
RoHS | Yes |
Reach | Yes |
Packaging Information
|
|
Package Quantity | 1 |
Product Weight | 4 lbs [1.81kg] |
