USB Type-C Multiport Adapter With HDMI VGA Ethernet And 3.0 For Video Network Data Black To FN-AD-UC-DS02
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Overview

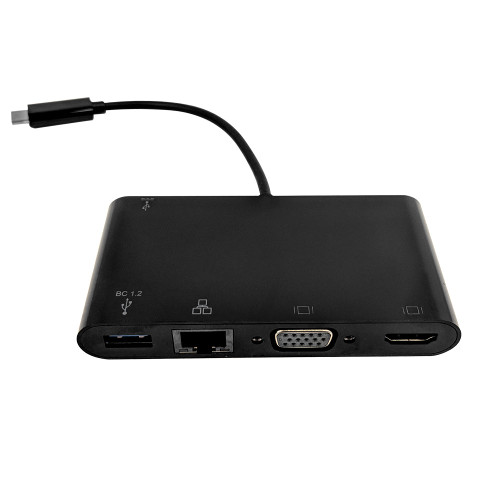

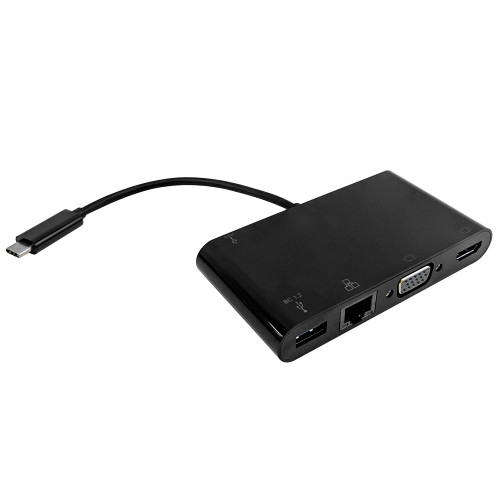

This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C male on one end and a HDMI female, USB 3.1 Type-C female, RJ45 female, VGA female and USB 3.0 female on the other end. It allows you to connect additional devices through your USB Type-C port and create a permanent or temporary workstation.
Please note that the USB Type-C port on the input side can be used to simultaneously charge your device.
*Not intended for uses with multiple monitors. Additional monitors should be connected through the USB Type-C port of the docking station.
|
| Expand your Type-C Devices ConnectivityThis 5x1 USB Type-C docking station has an HDMI and VGA ports for connecting external displays, an Ethernet port for network connection, a USB 3.0 Super Speed port and a USB Type-C port with Power Delivery charging. High Performance and Quality Video OutputThe HDMI output provides a simple Plug & Play connection to almost any HDMI display with an Ultra HD 4K resolution. The VGA output support monitors with 1920x1200 resolution. Stable Internet Access and Fast Data TransferWired network connection supports 10/100/1000 Mbps Bandwidth via the RJ45 port provides a faster, more secure and more stable Internet connection. And the Super Speed USB 3.0 Port supports faster data transfer up to 5Gbps.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Connector(s) | |
| Connector A | USB 3.1 Type-C Male |
| Connector B | HDMI Female |
| USB 3.1 Type-C Female | |
| RJ45 Female | |
| VGA Female | |
| USB 3.0 Female | |
| Performance | |
| USB Type-C Port | Supports Data Transmission + Power Delivery Charging |
| HDMI Resolution | 4Kx2K@30Hz, 9Gbps Bandwidth |
| VGA Resolution | 1920x1200@60Hz |
| USB Type A Port | Supports USB 3.0 Super Speed (5Gbps), Downward Compatible with USB 2.0 / Supports BC 1.2, Max 7.5W(5V/1.5A) |
| Ethernet | 10/100/1000Mbps Bandwidth |
| Compatibility | Compliant with USB 3.1,Backward Compatible with USB 3.0 and USB 2.0 |
| System Requirements | |
| Windows Compliant | Yes |
| Mac Compliant | Yes |
| Certifications | |
| FCC | Yes |
| CE | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.44 lbs [0.19kg] |
