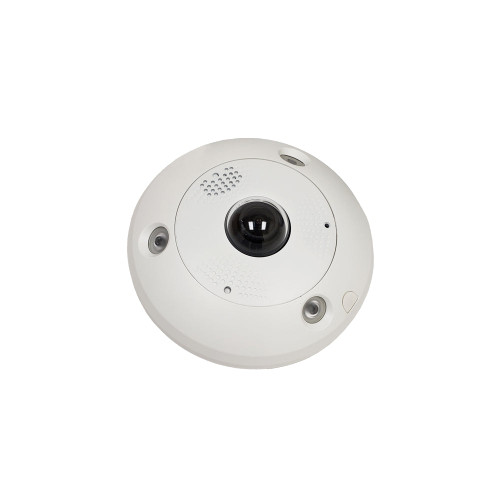

Outdoor Fisheye IP Fixed Dome Camera White IP66 Rated For Wide Coverage And Weather Resistance FN-CA-NCA16-FEA
Write a Review
Fleet Network
Outdoor Fisheye IP Fixed Dome Camera White IP66 Rated For Wide Coverage And Weather Resistance FN-CA-NCA16-FEA
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Overview
This 6MP fisheye, fixed dome IP based camera offers a full 360 degree panoramic image of its surveillance scene. The progressive scan CMOS sensor provides high-resolution images of up to 3072 x 2048 and has up to 18 live view display modes. It also has three independently controlled IR lights that offer a range of 15m which provides good vision in low or zero-light environments.
 |
Features
|
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 1/1.8" progressive scan CMOS |
| Minimum Illumination | Color: 0.047 Lux @ (F2.6, AGC ON), B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day/Night | IR cut filter |
| DNR | 3D DNR |
| WDR | Digital WDR |
| DORI (Detect, Observe, Recognize, Identify) | Distance: 1.27mm Detect: 21.3m Observe: 8.5m Recognize: 4.3m Identify: 2.1m |
|
Lens
|
|
| Focal Length | 1.27mm |
| Aperture | F2.6 |
| FOV | Horizontal FOV 180°, Vertical FOV 180° (wall mount), 360°(ceiling mount), 360°(table mount) |
| Lens Mount | M12 |
|
IR
|
|
| IR Range | Up to 15 m IR range, 3 LEDs. Each LED is independently controlled. |
| Wavelength | 850 nm |
|
Compression Standard
|
|
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub stream: H.265+/H.265/H.264+/H.264/MJPEG; Third stream: H.265+/H.265/H.264+/H.264 |
| H.264 Type | Baseline Profile/ Main Profile /High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| SVC | H.265 and H.264 support |
|
Smart Feature-Set
|
|
| Behavior Analysis | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Exception Detection | Audio exception detection |
| Intersection Analysis | Detects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways |
| Heat Map | A graphic description of visits (calculated by people number or by dwell time) in a configured area. Two heap map report types are available, space heat map and time heat map line chart |
| People Counting | Counts people entering, exiting and passing by separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height |
| Region of Interest | 4 fixed regions for main stream |
|
|
|
| Maximum Image Resolution | 3072 — 2048 |
| Main Stream Max. Frame Rate |
50Hz: 25fps (3072 — 2048, 2048 — 2048, 1280 — 1280) 60Hz: 30fps (3072 — 2048, 2048 — 2048, 1280 — 1280) |
| Sub Stream Max. Frame Rate |
50Hz: 25fps (720 — 720, 720 — 480) 60Hz: 30fps (720 — 720, 720 — 480) |
| Image Enhancement | BLC, HLC, defog, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser |
| Day/Night Switch |
Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
| Picture Overlay | LOGO picture can be overlaid on video with 128 — 128 24bit bmp format |
|
Live View Display
|
|
| Mount Type | Supports table, wall, and ceiling mounting |
| Decoding Mode | Support hardware decoding and software decoding |
| Display Mode | 18 display modes in total Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere, cylinder Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion |
|
Audio
|
|
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
|
Network
|
|
| Network Storage | Support microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Security Measure | Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Firmware Version | 5.5.73 |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels, administrator, operator and user |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Guarding Vision |
| Web Browser | IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+ |
|
Interface
|
|
| Communication Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port |
| Audio | 2 built-in microphones, 1 built-in speaker, mono sound 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm) |
| Alarm (-S) | 1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Reset Button | Yes |
|
General
|
|
| Operating Conditions |
-40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC±20%, PoE (802.3at, class 4), Two-core terminal block |
| Power Consumption |
12 VDC, 1 A, max. 12.5 W PoE (802.3at, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W |
| Protection Level (-V) |
IP67, IK10 |
| Heater |
Yes |
| Material |
Metal |
| Dimensions |
167.4 — 152.8 — 55 mm (6. 6" — 6" — 2.2") |
| Weight |
3.09 lbs [1.4kg] |
Compatible Products
Compatible Mounts
| CA-DS-1280ZJ-DM25-M1 | Junction Box Mounting Bracket for Fisheye IP Camera - White |
Downloads
User Manual
Quick Start Guide
Data Sheet
RJ45 pin out diagram
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports macOS version 10.12,10.13 and 10.14 (64-bit)
iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports Microsoft Windows 7/Windows 8.1/Windows 10 (32-bit or 64-bit)/Windows XP SP3 (32-bit)/Windows 2008 R2/Windows Server 2012 (64-bit)
SADP Tool V3.1.0.8
Search, activate devices on the network and modify the basic network information
Warranty Information
Covered by Manufacturer| Qty | Price | Available |
|---|
