Outdoor Cat5e Solid FTP Direct Burial UV Resistant Shielded Pigtail With RJ45 To Blunt For Field Terminations FN-CAT5ESOPT-75BKB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Overview

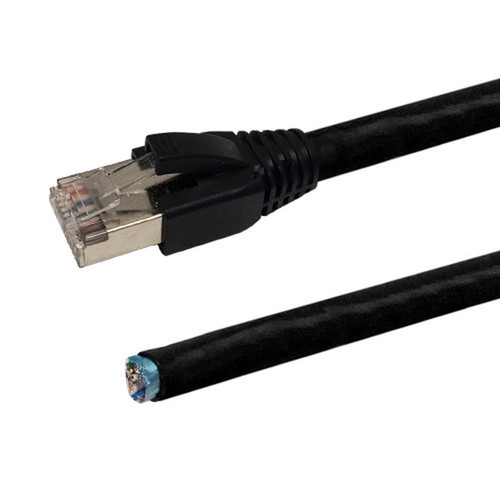

This Cat5e FTP outdoor UV direct burial ethernet cable consists of a RJ45 male on one end and has no termination on the other. The un-terminated end is typically used for punching down onto a jack or panel and the RJ45 end can be used outdoors either above or below ground as premise wiring to connect network devices.
This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime.
50 Micron Gold Plated Connectors
This non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.
Outdoor Rated Cable
Ideal for use in cable runs thatare located above or below ground as premise wiring to connect network devices.
Application
Specifications
| Physical Characteristics | |
|---|---|
| Length | 100 foot |
| Connector Plating | Gold Plated 50 Micron |
| Conductor Material | 100% Bare Copper |
| Cable Diameter | 6.20 mm |
| Wire Gauge | 24AWG Solid |
| Color Code | 568A |
| Cable Shielding | FTP (100% Aluminium Foil Shield) |
| Pairs | 4 |
| Temperature Rating | -40°C to +75°C |
| StrainRelief | Tab Style Strain Relief Boot |
| Jacket Rating | Direct Burial / UV |
| Jacket Material | LLDPE |
| UV | Yes |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | Un-terminated |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| Product Weight | 2.15 lbs [0.98kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
