3 Way Digital Coaxial Signal Splitter For TV And RF Splitters FN-MB-TVD3-13

3 Way Digital Coaxial Signal Splitter For TV And RF Splitters 3 Way Digital Coaxial Signal Splitter For TV And RF Splitters Install a 3 way.

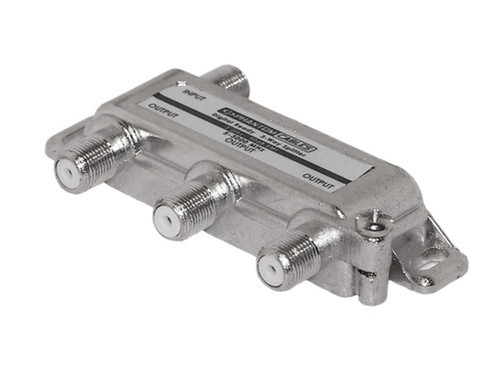

This digital splitter has a F-Type female input on one side and three F-Type female outputs on the other side. It is typically used to split broadband or CATV 5-3000MHz 75Ω sources such as hybrid distribution networks, HDTV, voice, data, modem and digital converter applications to dual outputs. Premium 3GHz 90dB Digital Ready Splitter Broadband and CATV 5-3000MHz 75Ω Splitter Suitable for Hybrid Distribution Networks, HDTV, Voice, Data, Modem and Digital Converter Applications Gold-Plated Beryllium-Copper Two-Prong Contacts Reduced Aperture Flat-Ended Ports High-Performance Printed Board Circuitry Tongue-and-Groove Housing All Ports DC Power Capacitor-Blocked Low Intermodulation Hum Soldered-Back Cover 90dB min. EMI-RFI Shielding 3/8" Precision Machined F-Port Threads 1" centered F-ports accommodate security tools Supplied with Protective F-Port Plastic Caps Physical Characteristics Color Silver Contacts Gold-Plated Beryllium-Copper Two-Prong Housing Metal Enclosure Shielding EMI-RFI Circuitry High-Performance Printed Board Performance Frequency 3GHz Impedance 75 Ω Amplitude 90dB (min) Loss at 1GHz 6.5dB Loss at 3GHz 12.0dB Mounting Holes 2 Connector(s) Input 1 x F-Type Female input Output 3 x F-Type Female output Environmental RoHS Yes Certification(s) CE Yes FCC Yes UL Yes Packaging Information Package Quantity 1 - 3GHz 90dB Digital Splitters 3-Way with Plastic Caps Product Weight 0.1 lbs [0.1kg] Package Weight 0.2 lbs [0.1kg]
