Product Features
Overview

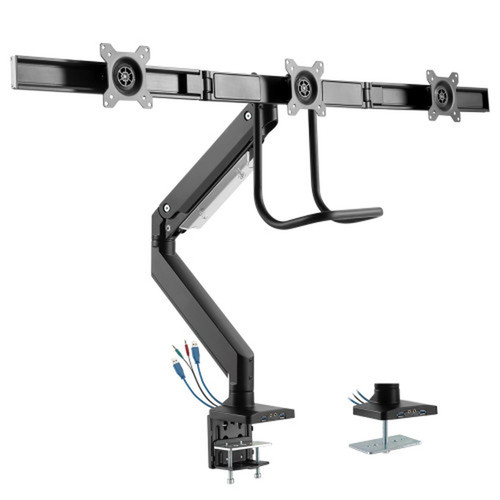

This full motion swivel, tilt and rotating triple desktop monitor mount is designed to hold three 17 inch to 27 inch displays with a maximum VESA hole pattern of 100x100. It offers up to a 5° to -15° tilt, 10° to -10° swivel and screen rotation of 180° ~ -180°. It can be used in both residential and commercial environments.
 |
Easy Installation and AdjustmentWith the universally supported VESA hole mounting pattern, this desktop mount is easy to set-up and install. It is easy to adjust, with no tools required. Counterbalance the Weight of your MonitorThe gas spring ensures smooth movement with ease and perfectly counterbalances the weight of the monitor. Easy Grip HandleThe easy grip handle makes pull-down and placement of the mount effortless for the user. It can help position three monitors at the same time with ease. USB and Multimedia PortsThere are two USB 3.0 ports and multimedia (one microphone, one headphone) ports on the base. Data transmission, charging and headset use has never been so convenient.
|
Specifications
|
Physical Characteristics
| |
|---|---|
| Mounting Style | Gas Spring Monitor Arm |
| Color | Powder Coated Black |
| Material | Aluminium, Plastic, Steel |
| Mounting Pattern | VESA 75x75, 100x100 |
| Dimensions | 1330x709x770mm [52.4 x 27.9 x 30.3 inches] |
| Screen Quantity | 3 |
| Screen Size | 17 - 27 inches [43.2 - 68.6 cm] |
| Weight Capacity (per screen) |
1~6lbs [2.2~13.2kg] |
| Tilt | +5° ~ -15° |
| Swivel | +10° ~ -10° |
| Screen Rotation | +180° ~ -180° |
| Arm Full Extension | 526mm (20.7") |
| Installation | Grommet, Clamp |
| Suggested Desktop Thickness | Clamp: 10~85mm [0.39~3.3"] Grommet: 10~48mm [0.39~1.9"] |
| Quick Release VESA Plate | Yes |
| Cable Management | Yes |
| Ports | 2x USB 3.0 Ports Microphone Port, Headphone Port |
|
Approvals
| |
| RoHS | Yes |
| Reach | Yes |
|
Packaging Information
| |
| Package Quantity | 1 |
| Product Weight | 22.9 lbs [10.4kg] |
