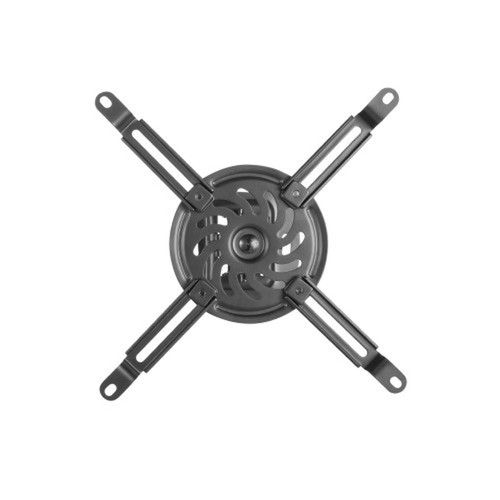

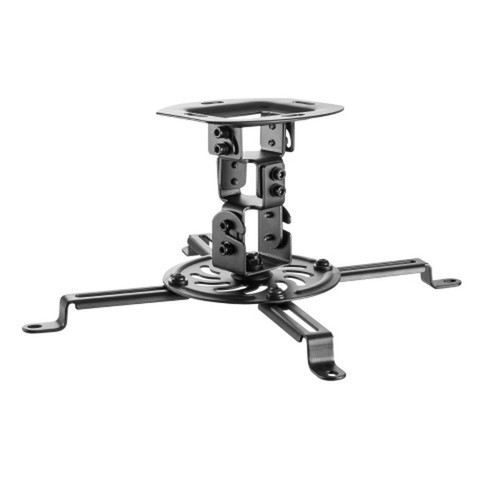

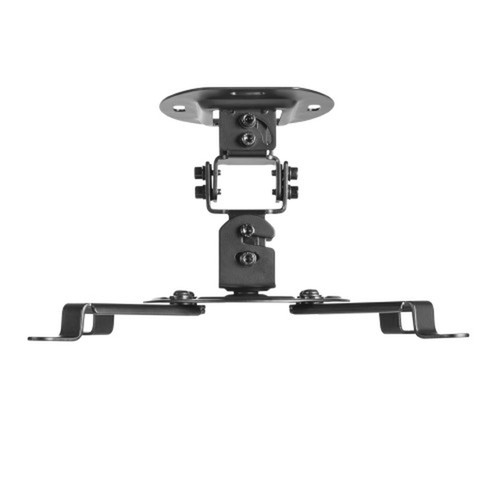

Adjustable 4 Arm Tilt And Rotate Projector Ceiling Mount Bracket With Drop In Black FN-MT-821-BK
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Overview
This ceiling mount projector is designed to hold projectors up to 13.5kgs/29.7 Ibs. It offers 360° rotation, -15° to +15° tilt, -15° to +15° swivel, and has an extension range of 150mm. It can be used in both residential and commercial environments.
 |

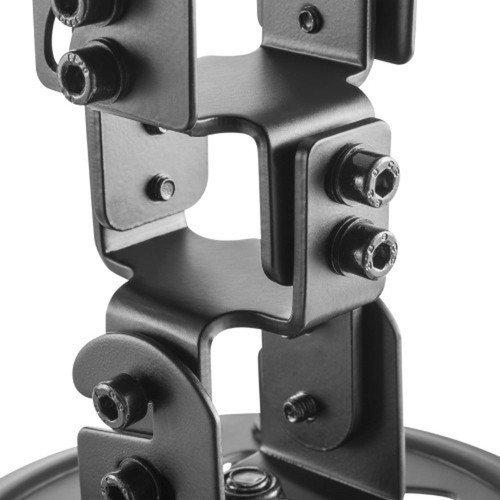

Fully Adjustable MountThe projector ceiling mount supports 360° rotation, -15° to +15° tilt, -15° to +15° swivel, and multidirectional positioning with four adjustable support arms that can fit a wide range of mounting holes. Easy Installation and MaintenanceThe quick release connector allows the projector to be installed quickly and then easily release for maintenance, without re-alignment. The Ideal Mount for Many PossibilitiesThis projector mount can be used in classrooms, boardrooms, bars, restaurants or a residential environment.
|
Specifications
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Projector Mount |
| Color | Black |
| Material | Solid Steel |
| Dimensions | 334 x 334 x 150mm [13.1 x 13.1 x 5.9 inches] |
| Extension Range | 150mm [5.9 inches] |
| Mounting Range | 54mm~320mm [2.1~12.6 inches] |
| Mounting Pattern | 4 Arm |
| Weight Capacity | 29.7 lbs [13.5kg] |
| Tilt | -15° to +15° |
| Swivel | -15° to +15° |
| Rotating | 360° |
| Cable Management | Yes |
| Installation | Ceiling Mounted |
|
Approvals
|
|
| RoHS | Yes |
| Reach | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 4 lbs [1.81kg] |
