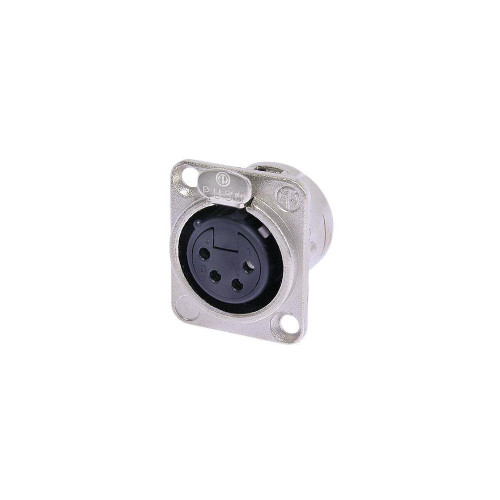

Neutrik DMX 4 Pin Female To Solder D-Cut Receptacle For Lighting And Signal Wiring FN-NT-NC4FD-L-1
SKU:
FN-NT-NC4FD-L-1
(No reviews)
Write a Review
Write a Review
Fleet Network
Neutrik DMX 4 Pin Female To Solder D-Cut Receptacle For Lighting And Signal Wiring FN-NT-NC4FD-L-1
MSRP:
$15.95
$15.95
$13.95
Save:
$2.00 (12.54%)
Warranty Information:
Covered by Manufacturer
Condition:
New
Width:
1.00
(cm)
Height:
1.00
(cm)
Depth:
1.00
(cm)
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Product Features
Description
This connector is a 4-pin female receptacle with solder cups, nickel housing and silver contacts.
| Physical Characteristics | |
|---|---|
| Housing | Nickel |
| Connector Type | XLR |
| Temperature Range | -30℃ to +80℃ |
| Contact Plating | 2 µm Au over 2 µm Ni |
| Contacts | Brass |
| Insert | Polyamide |
| Locking Element | Steel Ck67 |
| Shell | Zinc Diecast |
| Shell Plating | Nickel |
| Gender | Female |
| Electrical Characteristics | |
| Capacitance between Contacts | ≤ 7 pF |
| Contact Resistance | ≤ 5 mΩ |
| Dielectric Strength | 1,5 kVdc |
| Insulation Resistance | > 10 GΩ (initial) |
| Rated Current Per Contact | 10 A |
| Rated Voltage | < 50 V |
| Mechanical Characteristics | |
| Insertion Force | ≤ 20 N |
| Withdrawal Force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wire size | Max. 1.5 mm² Max. 16 AWG |
| Wiring | Solder contacts |
| Locking Device | Latch Lock |
| Chassis Shape | D |
| Approvals | |
| UL | Yes |
| Environmental | |
| Flammability | UL 94 HB |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Manufacturer Information | |
| Neutrik Part Number | NC4FD-L-1 |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
