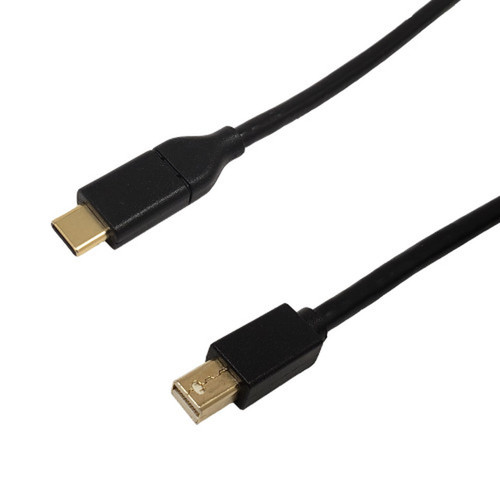

3 Foot USB Type-C To Mini DisplayPort Cable 4K Rated Black For Compact Connections Cables CL3/FT4 Network 4K*2K Fleet FN-UC-MDP-03
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Description
Overview
This Type-C male to Mini DisplayPort male cable supports resolutions of Ultra HD 4K x 2K at 60Hz. It is typically used to connect a Type-C source (PC, Laptop, Mac Computer, Mac Laptop, etc) to a Mini DisplayPort display (monitors, etc). This cable is uni-directional, therefore it willonly work from a Type-C source to a Mini DisplayPort display and not in the reversedirection.
| Ultra High-Definition ResolutionThis cable supports maximum video resolutions up to a breath-taking Ultra HD 4K x 2K (4096 x 2160) @ 60Hz. Gold Plated ConnectorsThe gold plated connectors deliver optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Works Like an External Video CardThis cable can be used for various input devices - for example, connecting your PC to a monitor, in order to extend your PC, laptop, Mac computer or Macbook onto another display.
|
Application
Specifications
Physical Characteristics | |
|---|---|
| Length | 3 foot |
| Color | Black |
| Connector Plating | Gold |
| Wire Gauge | 28 AWG |
| Jacket Fire Rating | CL3/FT4 |
| Cable Type | Active |
| Temperature Rating | 45ºC |
Connectors | |
| Connector A | Type-C Male |
| Connector B | Mini DisplayPort Male |
Performance | |
| Bandwidth | 18 Gbps |
| Resolution | Ultra HD 4k x 2k (4096 x 2160) @ 60Hz |
| 3D Support | No |
| DP Version | v1.2 |
| Type-C Version | v3.0 |
Approvals | |
| c(UL) | Approved Cable |
Certifications | |
| FCC | Yes |
| CE | Yes |
Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.12 lbs [0.05kg] |
Warranty | |
| Warranty | Lifetime Limited |
