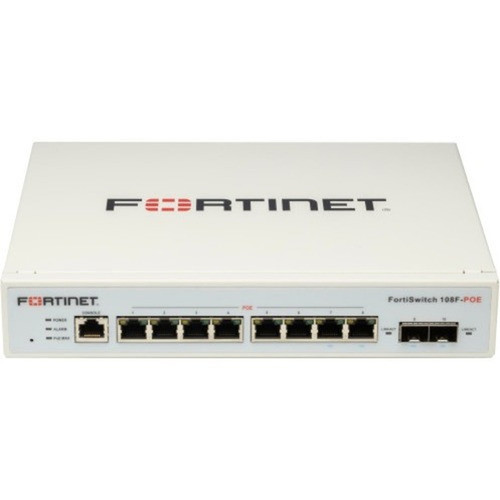

Fortinet FS-108F-POE FortiSwitch 8-Port Gigabit Ethernet PoE+ Switch - 65W Budget - 2 SFP Uplinks - Layer 2 Managed - Desktop/Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 2, supporting advanced features like IGMP snooping, port mirroring, and spanning tree protocols for efficient network traffic management and redundancy. It complies with a comprehensive set of IEEE standards including 802.1Q for VLANs, 802.3ad for link aggregation, and 802.1x for network access control.
The 8 RJ-45 ports auto-negotiate to 10/100/1000 Mbps speeds, while the two SFP expansion slots accommodate fiber or copper transceivers for uplinks up to 1 Gbps. Power over Ethernet is delivered per the 802.3af and 802.3at standards, with a total budget of 65W to support multiple powered devices simultaneously. The internal power supply draws 74.40W under typical load, and the switch is RoHS 2 compliant for environmental safety.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FortiSwitch 108F-POE combines essential Layer 2 features with a robust physical design. Its manageable interface allows for granular control over network policies, VLAN configurations, and traffic prioritization. The desktop and rack-mountable form factor provides deployment versatility, whether in tight spaces or standard server racks.
PoE+ Ready Design
The 65W PoE budget eliminates the need for separate power injectors, simplifying deployments of VoIP phones, wireless APs, and IP cameras while reducing infrastructure costs.
- Supports IEEE 802.3af/at devices
- 8 ports deliver PoE+ power
- Centralized power management
Dual SFP Uplink Flexibility
Two SFP slots enable fiber or copper uplinks for long-distance connections or high-bandwidth aggregation, ensuring reliable backbone connectivity in diverse environments.
- Fiber optic support for extended reach
- Copper SFP options for cost-effective links
- Modular uplink scalability
Deployment / Use Cases
This switch suits environments requiring a balance of port density, PoE capability, and uplink options. In retail settings, it can connect point-of-sale systems and surveillance cameras while linking to a central network via fiber uplinks. For educational or healthcare facilities, it supports VoIP handsets and wireless access in classrooms or patient rooms, with manageable features ensuring network stability and security.
The 1U rack-mountable design integrates into server rooms or network cabinets, while the desktop form factor allows for placement under desks or in wall mounts for space-constrained installations. Its lifetime warranty underscores long-term reliability for critical network edges.
Small Office / Branch Networking
Ideal for connecting workstations, printers, and IP phones in offices where PoE and uplink flexibility are needed without a large footprint.
Edge Security and Surveillance
Powers IP cameras and access points while providing uplinks to central NVRs or security controllers, enhancing distributed security deployments.
Physical Profile
The switch measures 1.73" (43.94 mm) in height, 9.85" (250.19 mm) in width, and 8.23" (209.04 mm) in depth, fitting standard 1U rack spaces or desktop surfaces. Weighing 3.75 lb (1700.97 g), it is lightweight yet durable for various mounting scenarios. The dual form factor supports both standalone use and rack integration, with ventilation designed for continuous operation in typical office temperatures.
- Width
- 9.85" (250.19 mm)
- Depth
- 8.23" (209.04 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 3.75 lb (1700.97 g)
Highlights
- 8 Gigabit Ethernet PoE+ ports with 65W total budget
- 2 SFP uplink slots for fiber or copper expansion
- Layer 2 managed switch with advanced networking features
- Desktop and rack-mountable 1U form factor
- Supports IEEE 802.3af/at for PoE device compatibility
- Comprehensive IEEE standards compliance for interoperability
- Lifetime warranty for long-term reliability
- RoHS 2 compliant for environmental safety
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FS-108F-POE |
| Brand Name | Fortinet |
| Product Line | FortiSwitch |
| Product Model | 108F-POE |
| Product Name | FortiSwitch 108F-POE Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1x,IEEE 802.1ab,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1Q,IEEE 802.3ad,IEEE 802.1AX,IEEE 802.3x,IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3az,IEEE 802.1Qbb,IEEE 802.1ad,IEEE 802.1p,IEEE 802.3af,IEEE 802.3at |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 65 W |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Power Consumption | 74.40 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Desktop,Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 9.85" (250.19 mm) |
| Depth | 8.23" (209.04 mm) |
| Weight (Approximate) | 3.75 lb (1700.97 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
How many devices can this switch power with PoE?
The Fortinet FS-108F-POE provides a total PoE budget of 65W across its eight PoE+ ports. This allows it to power multiple IEEE 802.3af or 802.3at compliant devices such as IP phones, wireless access points, or security cameras simultaneously, depending on their individual power requirements. The switch intelligently allocates power to connected devices, ensuring stable operation without overloading the budget.
What types of uplink connections are supported?
This switch includes two SFP (mini-GBIC) slots that support both fiber optic and copper transceivers for uplink connections. You can use SFP modules for 1000Base-X fiber links to extend network distance or for copper links to connect to other switches or routers. This flexibility allows for high-speed backbone connectivity tailored to your network's physical infrastructure needs.
Is this switch manageable, and what features does it offer?
Yes, the FortiSwitch 108F-POE is a fully manageable Layer 2 switch. It supports features such as VLANs (IEEE 802.1Q), link aggregation (IEEE 802.3ad), port mirroring for monitoring, IGMP snooping for multicast efficiency, and spanning tree protocols for network redundancy. These capabilities provide granular control over network traffic, security, and performance, making it suitable for professional deployments.
Can this switch be used in a rack-mounted setup?
Absolutely. The switch is designed for both desktop and rack-mountable deployment. It is compatible with standard 1U rack spaces, with dimensions of 1.73" height, 9.85" width, and 8.23" depth. This dual form factor makes it versatile for installation in server racks, network cabinets, or on desktop surfaces, depending on your space and organizational requirements.
What networking standards does this switch comply with?
The switch adheres to a wide range of IEEE standards, including 802.1Q for VLANs, 802.3ad for link aggregation, 802.1x for network access control, 802.3af/at for PoE, and others like 802.1D, 802.1w, and 802.1s for spanning tree protocols. This comprehensive compliance ensures interoperability with other network devices and supports advanced networking functionalities in mixed environments.
What is the warranty coverage for this switch?
Fortinet provides a lifetime limited warranty for the FS-108F-POE switch. This warranty covers defects in materials and workmanship for the product's lifetime, offering long-term reliability and support. It underscores the switch's durability and suitability for critical network applications where continuous operation is essential.
