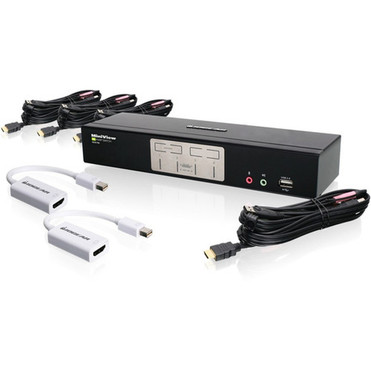

IOGEAR GCS1794MDPKIT 4-Port HDMI KVMP Switch with Mini DisplayPort Adapters - 1920 x 1200 - 8 USB - 5 HDMI - 4-Computer KVM
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM switch operates with HDMI interfaces, providing digital video and audio transmission between computers and the display. It features eight USB ports for peripheral sharing, including two dedicated USB 2.0 ports for devices like printers, scanners, or external storage. The five HDMI ports facilitate connections to multiple computers, with support for HDCP compliance to maintain content protection standards.
Advanced technical capabilities include DynaSync technology, which reads and stores the monitor's EDID parameters to prevent resolution delays or changes when switching between computers. Power-on detection automatically switches to the next active computer if one is powered off, ensuring uninterrupted workflow. Asynchronous hotkey switching allows independent control of KVM focus, USB peripherals, and audio ports for flexible management.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GCS1794MDPKIT enhances productivity by centralizing control of multiple computers without sacrificing performance. Its integration of Mini DisplayPort adapters broadens compatibility, while features like DynaSync and power-on detection automate switching processes for a seamless user experience.
High-Definition Audio and Video
Supports Dolby True HD and DTS HD Master Audio for immersive sound, alongside video resolutions up to 1920x1200 for crisp visuals.
- 480i to 1080p resolution range
- HDCP compliance for protected content
- Digital audio via HDMI
Flexible Peripheral Management
Share up to two USB 2.0 peripherals across all connected computers, reducing the need for duplicate devices.
- 8 total USB ports
- Asynchronous hotkey switching
- Supports keyboards, mice, and more
Deployment / Use Cases
Ideal for environments where space efficiency and streamlined access to multiple computers are priorities. This KVM switch is well-suited for IT administrators managing server racks, graphic designers switching between workstations, or home users consolidating gaming and office PCs.
In corporate settings, it supports multi-platform OS environments including Windows, Mac, Sun Solaris, and Linux, making it adaptable to diverse IT infrastructures. The compact design allows for easy integration into desk setups or rack installations, while the bundled adapters ensure readiness for computers with Mini DisplayPort outputs.
IT and Server Management
Manage up to four servers or computers from a single console, reducing hardware footprint and simplifying maintenance tasks.
Creative and Multimedia Workstations
Switch between editing, rendering, and playback systems without reconnecting peripherals, maintaining high audio and video quality throughout.
Physical Profile
The switch measures 10.25 inches in height, 3 inches in width, and 1.63 inches in depth, with an approximate weight of 1.88 pounds. Its slender profile fits easily on desks or in rack mounts, and the durable construction ensures longevity in active use. The design prioritizes efficient heat dissipation and easy port access for hassle-free cable management.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 10.25" (260.35 mm), 3" (76.20 mm), 1.63" (41.28 mm), 1.88 lb (852.75 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3" (76.20 mm)
- Depth
- 1.63" (41.28 mm)
- Height
- 10.25" (260.35 mm)
- Weight
- 1.88 lb (852.75 g)
What's in the Box
This bundle includes all necessary components for immediate setup and operation.
Highlights
- Share keyboard, mouse, audio, USB devices, and HD display across 4 computers
- Supports video resolutions from 480i to 1920x1200 with HDCP compliance
- Includes 2 Mini DisplayPort adapters for expanded connectivity
- 8 USB ports with 2 dedicated for peripheral sharing
- Dolby True HD and DTS HD Master Audio support for high-quality sound
- Multi-platform OS compatibility: Windows, Mac, Sun Solaris, Linux
- DynaSync technology prevents resolution delays when switching
- Power-on detection automatically switches to active computers
- Asynchronous hotkey switching for independent control of KVM, USB, and audio
- 3-year limited warranty and RoHS/WEEE environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GCS1794MDPKIT |
| Brand Name | IOGEAR |
| Product Line | MiniView |
| Product Model | GCS1794 |
| Product Name | 4-Port HDMI KVMP with MiniDisplayPort Adapters Bundle |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of USB Ports | 8 |
| Number of HDMI Ports | 5 |
| Physical Characteristics | |
| Height | 10.25" (260.35 mm) |
| Width | 3" (76.20 mm) |
| Depth | 1.63" (41.28 mm) |
| Weight (Approximate) | 1.88 lb (852.75 g) |
| Miscellaneous | |
| Package Contents | 4-Port HDMI KVMP Switch 2 x Mini DisplayPort Adapters 4 x HDMI KVM Cables 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x Installation Guide 1 x Warranty Card |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers can I connect to this KVM switch?
The IOGEAR GCS1794MDPKIT supports up to four computers simultaneously. You can connect each computer via HDMI, using the included Mini DisplayPort adapters if needed, and control them all from a single keyboard, mouse, audio system, and display.
What video resolutions does this switch support?
This KVM switch supports a wide range of video resolutions, from standard definition 480i and 480p up to high definition 720i, 720p, 1080i, and 1080p. The maximum resolution is 1920 x 1200, ensuring compatibility with most modern monitors and HDTVs for clear, detailed visuals.
Does this KVM switch include adapters for different computer ports?
Yes, the bundle includes two Mini DisplayPort adapters. These allow you to connect computers with Mini DisplayPort outputs to the HDMI-based KVM switch, making it versatile for setups with mixed hardware, such as Macs or PCs with Mini DisplayPort interfaces.
How many USB ports are available, and what can I connect?
There are eight USB ports in total, with two dedicated as USB 2.0 peripherals sharing ports. You can connect devices like keyboards, mice, printers, scanners, or external storage drives, and share them across all four connected computers without needing separate peripherals for each system.
What is the warranty and environmental compliance for this product?
The IOGEAR GCS1794MDPKIT comes with a 3-year limited warranty, providing coverage for defects in materials and workmanship. It is also environmentally friendly, complying with Restriction of Hazardous Substances (RoHS) and Waste Electrical and Electronic Equipment Directive (WEEE) standards.
What connectivity or interface options are available?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
