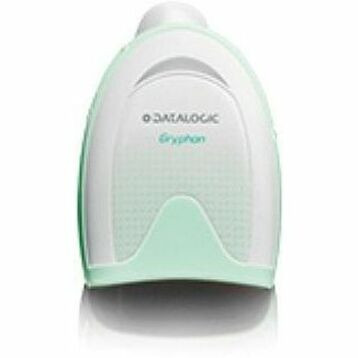

Datalogic Gryphon GM4500 Handheld Barcode Scanner Kit - Cable/Wireless Connectivity - 1D, 2D - Laser - Imager - Omni-directional - , - (GM4500-HC-910K1RED)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- Micro QR Code
- QR Code
- Dot Code
- Australian Post
- British Post
- China Post
- IMB
- Japanese Post
- KIX Post
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC)
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composites
- Digimarc Barcodes
Connectivity Technology: Cable/Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D:
2D:
Postal codes:
Stacked codes:
Digital Watermarking:
Light Source: Laser
Image Sensor Type: Imager
Scan Pattern: Omni-directional
Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 35 in/s (889 mm/s)
Image Formats: BMP,JPEG,TIFF
Maximum Ambient Light: 100000 lux
Drop Specification:
Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.
Minimum Print Contrast: 15%
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: Red
Air Electrostatic Discharge (+/-): 16kV
Features: Ergonomic Design,Beep,Vibration,3GL,Notification LED,Data Formatter,Grayscale Image Capture
Radio Frequency: Yes
Host Interface: USB
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 3250 mAh
Maximum Battery Recharge Time: 4 Hour
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 0% to 95%
Form Factor: Handheld
Durability: Drop Resistant,Dust Resistant,Water Resistant
Weight (Approximate): 8.29 oz (235 g)
Ingress Protection (IP) Rating: IP52
Application/Usage: Healthcare,Retail,Industrial,Light/Clean Manufacturing,Laboratory,Pharmacy,Transportation,Commercial Service
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | GM4500-HC-910K1RED |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | Gryphon |
| Product Series | 4500 |
| Product Model | GM4500 |
| Product Name | Gryphon GM4500 Handheld Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable/Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
2D:
Postal codes:
Stacked codes:
Digital Watermarking:
|
| Light Source | Laser |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Cable Type Included | USB |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 35 in/s (889 mm/s) |
| Image Formats | BMP,JPEG,TIFF |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface. |
| Minimum Print Contrast | 15% |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | Red |
| Air Electrostatic Discharge (+/-) | 16kV |
| Features | Ergonomic Design,Beep,Vibration,3GL,Notification LED,Data Formatter,Grayscale Image Capture |
| Network & Communication | |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | USB |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3250 mAh |
| Maximum Battery Recharge Time | 4 Hour |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Durability | Drop Resistant,Dust Resistant,Water Resistant |
| Weight (Approximate) | 8.29 oz (235 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Healthcare,Retail,Industrial,Light/Clean Manufacturing,Laboratory,Pharmacy,Transportation,Commercial Service |
[/custom-specifications]
[custom-options]
| Product | Datalogic Cradle - Docking - Bar Code Scanner - Charging Capability - Synchronizing Capability - USB, Serial - Black |
| SKU | WLC4090-BK-BT |
| Sale Price | $292.95 |
| Product | Datalogic Cradle - Docking - Bar Code Scanner - Charging Capability - Synchronizing Capability - USB, Serial - Black |
| SKU | WLC4090-BK-910 |
| Sale Price | $278.95 |
| Product | Datalogic Cradle - Docking - Bar Code Scanner - Charging Capability - Synchronizing Capability - USB, Serial - Black |
| SKU | WLC4090-BK-433 |
| Sale Price | $278.95 |
| Product | Datalogic Battery - For Barcode Scanner - Battery Rechargeable - 3250 mAh - 1 |
| SKU | RBP-GM45 |
| Sale Price | $41.95 |
| Product | Datalogic Cradle - Docking - Bar Code Scanner - Charging Capability - Synchronizing Capability - Bluetooth - USB, Serial - White |
| SKU | WLC4090-WH-BT |
| Sale Price | $292.95 |
