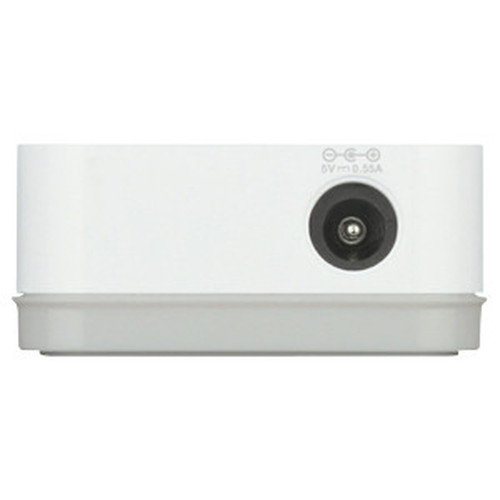

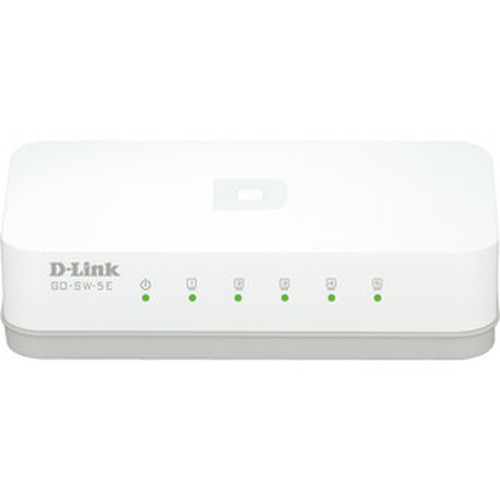

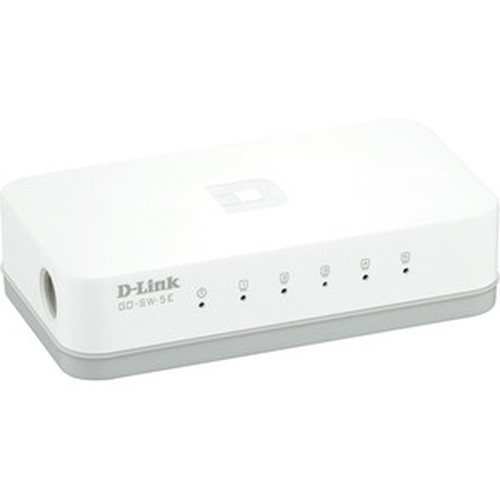

GO-SW-5E D-Link 5-Port 10/100 Unmanaged Desktop Switch - Fast Ethernet - Layer 2 - Twisted Pair
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Fast Ethernet speeds (10/100 Mbps) using 10/100Base-TX network technology, supporting twisted pair cables for data transfer up to 100 meters. It features Layer 2 support, which enables basic switching functions like MAC address learning and forwarding, enhancing network efficiency and security in simple deployments.
The switch includes five Fast Ethernet ports, all supporting standard RJ-45 connectors. It does not include uplink ports, modular expansion, stack ports, or Power over Ethernet (PoE) capabilities, keeping the design straightforward and focused on core connectivity needs.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The GO-SW-5E offers several advantages for small-scale networking, including ease of use, energy efficiency, and reliable performance. Its unmanaged design eliminates the need for IT intervention, reducing setup time and operational costs.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Plug-and-Play Simplicity, Energy-Efficient Operation.
Plug-and-Play Simplicity
No configuration required; simply connect devices and the switch automatically handles network traffic.
- Ideal for non-technical users
- Reduces deployment complexity
Energy-Efficient Operation
ENERGY STAR 5.0 certified and compliant with environmental standards like RoHS and WEEE, helping lower power consumption and support sustainability goals.
- Meets MEPS requirements
- Environmentally friendly design
Deployment / Use Cases
This switch is well-suited for extending wired network connections in various settings where simplicity and affordability are priorities. Its compact size and desktop form factor make it easy to place in locations where rack-mounted equipment is impractical.
Common use cases include small office networks, home offices, conference rooms, labs, lobbies, and department workgroups. It can connect multiple devices to a single network drop, enabling shared internet access, file sharing, and peripheral connectivity without requiring additional infrastructure.
Small Office Networking
Connect PCs, printers, and laptops in a small office environment to create a local area network (LAN) for collaborative work and resource sharing.
Workgroup Expansion
Extend network ports in department workgroups or labs where additional connections are needed beyond available router or switch ports.
Physical Profile
The switch has a compact desktop design with dimensions of 3.43" wide, 1.85" deep, and 0.85" high, weighing approximately 3.69 ounces. Its small footprint allows for flexible placement on desks, shelves, or other surfaces without occupying significant space.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.85" (21.59 mm), 3.43" (87.12 mm), 1.85" (46.99 mm), 3.69 oz (104.61 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.43" (87.12 mm)
- Depth
- 1.85" (46.99 mm)
- Height
- 0.85" (21.59 mm)
- Weight
- 3.69 oz (104.61 g)
What's in the Box
The package includes all necessary components for immediate setup and operation.
Highlights
- 5 Fast Ethernet ports for connecting multiple devices
- Unmanaged operation for plug-and-play simplicity
- Layer 2 support for basic switching functions
- Compact desktop form factor ideal for small spaces
- Supports twisted pair cables up to 100 meters
- ENERGY STAR 5.0 certified for energy efficiency
- Compliant with RoHS and WEEE environmental standards
- 3-year limited warranty for reliable performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | D-Link Systems, Inc |
| Manufacturer Part Number | GO-SW-5E |
| Brand Name | D-Link |
| Product Model | GO-SW-5E |
| Product Name | 5 Port 10/100 Desktop Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power Source | Power Adapter |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 0.85" (21.59 mm) |
| Width | 3.43" (87.12 mm) |
| Depth | 1.85" (46.99 mm) |
| Weight (Approximate) | 3.69 oz (104.61 g) |
| Miscellaneous | |
| Package Contents | 5 Port 10/100 Desktop Switch Power Adapter Quick Install Guide |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
| Energy Efficiency Certification | ENERGY STAR 5.0 |
| Energy Efficiency Compliance | Minimum Energy Performance Standards (MEPS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many devices can I connect to this switch?
The D-Link GO-SW-5E has five Fast Ethernet ports, allowing you to connect up to five wired devices such as computers, printers, or laptops directly. It supports standard RJ-45 connectors and twisted pair cables, making it suitable for small networks where additional ports are needed beyond a router's capacity.
Does this switch support Power over Ethernet (PoE)?
No, this switch does not support Power over Ethernet. It requires a separate power adapter for operation and does not provide power to connected devices over the Ethernet cables. This makes it suitable for environments where PoE is not needed or where devices have their own power sources.
What is the maximum data transfer speed of this switch?
The switch supports Fast Ethernet technology with speeds of 10/100 Mbps per port. It uses 10/100Base-TX network standards and twisted pair cables, providing reliable data transfer for typical office tasks like internet browsing, file sharing, and printing without the need for gigabit speeds.
Is this switch manageable or configurable?
No, the GO-SW-5E is an unmanaged switch, meaning it does not offer configuration options, management interfaces, or advanced features like VLANs or QoS. It operates automatically in plug-and-play mode, making it ideal for users who prefer simplicity and do not require network customization.
What type of cables does this switch support?
The switch supports twisted pair Ethernet cables, such as Cat5e or Cat6, with standard RJ-45 connectors. It is compatible with cables up to 100 meters in length, allowing flexible placement in offices or small business environments without signal degradation.
What warranty does this switch come with?
The D-Link GO-SW-5E includes a 3-year limited warranty, covering defects in materials and workmanship under normal use. This warranty provides assurance of reliability and support, aligning with D-Link's commitment to quality in networking products for small-scale deployments.
