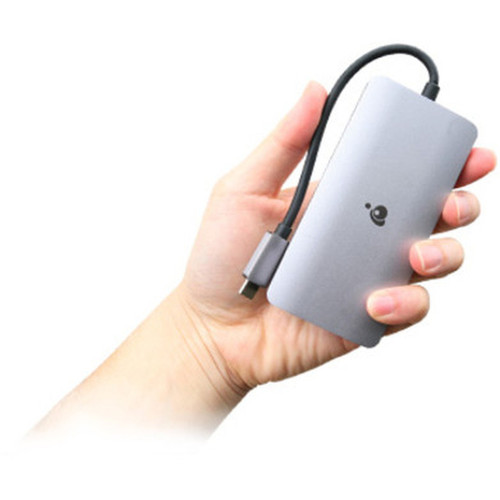

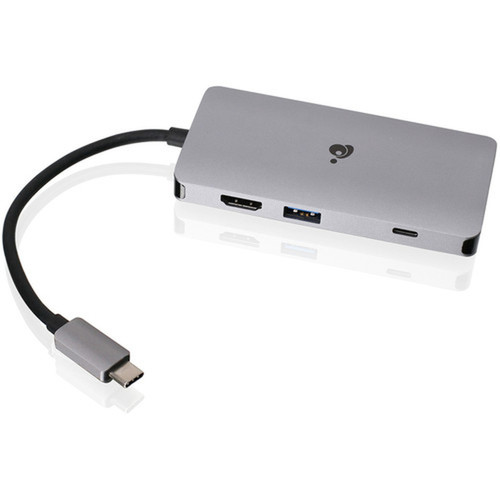

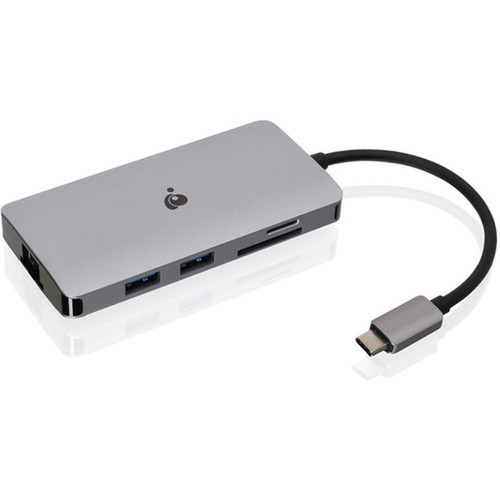

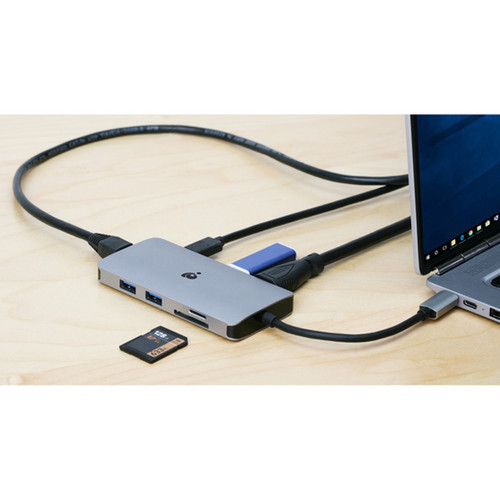

IOGEAR USB-C Travel Dock with Power Delivery 3.0 - for Notebook, Tablet PC - Charging Capability - Memory Card Reader - SD, microSD - (GUD3C06)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- USB-C Travel Dock with Power Delivery 3.0
- 1 x Quick Start Guide
- 1 x Warranty Card
Connectivity Technology: Wired
Charging Capability: Yes
Supported Resolutions: 3840 x 2160
Screen Mode Supported: 4K @30Hz
Memory Card Reader: Yes
Memory Card Supported: SD,microSD
Device Supported: Notebook,Tablet PC
Ethernet Technology: Gigabit Ethernet
Host Interface: USB 3.1 Type C
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 3
Number of USB Type-C Ports: 1
USB Type-C: Yes
Number of USB Type-A Ports: 3
USB Type-A: Yes
Network (RJ-45): Yes
HDMI: Yes
HDMI Version: 1.4
Thunderbolt: Yes
USB Power Delivery: 100W
Operating System Supported: Windows 7,Windows 8,Windows 8.1,Windows 10,Mac OS X Server 10.7 Lion
Maximum Power Supply Wattage: 100 W
Height: 2" (50.80 mm)
Depth: 0.35" (8.89 mm)
Weight (Approximate): 3.20 oz (90.72 g)
Package Contents:
Environmentally Friendly: Yes
Country of Origin: Taiwan
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 3 Year
- 8-in-1 Travel-size USB-C docking station for mobile professionals
- Charge laptop & devices with up to 100W pass-through
- Connect an HDMI display and enjoy HD audio and video resolution to 4K
- SD/MicroSD card reader/writer supports memory expansion
- 3x USB 3.0 ports; 1x BC1.2 charging port (1.5A)
- Gigabit Ethernet Data Port
- Compatible with Thunderbolt 3 (USB-C) laptops & tablets
- Rugged aluminum housing
- Fast Role Swap provides safe operation for connected devices during power changes
- HDCP 1.4 compliant
[custom-specifications]
| Specifications | |
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GUD3C06 |
| Manufacturer Website Address | http://www.iogear.com |
| Brand Name | IOGEAR |
| Product Name | USB-C Travel Dock with Power Pass Through |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K @30Hz |
| Memory Card Reader | Yes |
| Memory Card Supported | SD,microSD |
| Device Supported | Notebook,Tablet PC |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | USB 3.1 Type C |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 3 |
| Number of USB Type-C Ports | 1 |
| USB Type-C | Yes |
| Number of USB Type-A Ports | 3 |
| USB Type-A | Yes |
| Network (RJ-45) | Yes |
| HDMI | Yes |
| HDMI Version | 1.4 |
| Thunderbolt | Yes |
| USB Power Delivery | 100W |
| Software | |
| Operating System Supported | Windows 7,Windows 8,Windows 8.1,Windows 10,Mac OS X Server 10.7 Lion |
| Power Description | |
| Maximum Power Supply Wattage | 100 W |
| Physical Characteristics | |
| Height | 2" (50.80 mm) |
| Depth | 0.35" (8.89 mm) |
| Weight (Approximate) | 3.20 oz (90.72 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
| Qty | Price | Available |
|---|
