ASRock PG Riptide ATX Desktop Motherboard Intel Chipset Socket LGA1700 Optane Memory Ready Compatible With Pentium Gold And Core H670 H670 PG RIPTIDE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 9 Phase Dr.MOS Power Design
- Supports DDR4 5000MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1
1 M.2 Key-E for WiFi - Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
- 2 Hyper M.2 (PCIe Gen4 x4)
- 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 1 USB 3.2 Gen2x2 Front Type-C
2 USB 3.2 Gen2 (Rear Type A+C)
8 USB 3.2 Gen1 (4 Rear, 4 Front) - Intel® Gigabit LAN
- Lightning Gaming Ports
- H670 Steel Legend Desktop Motherboard
- Quick Installation Guide

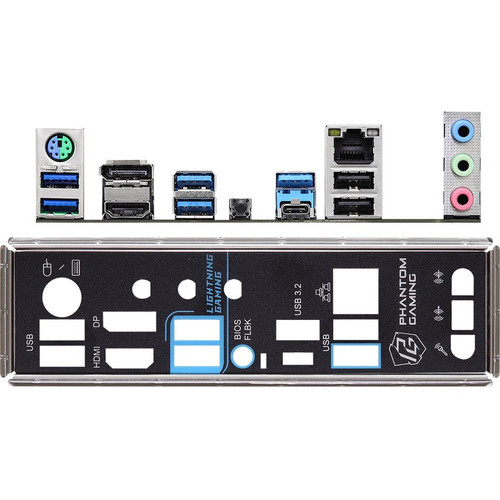

- I/O Shield
- 2 x SATA Data Cables
- 4 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
- Support CD
- Drivers
- Utilities
- AntiVirus Software (Trial Version)
Marketing Information:
Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea's double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.
Optimized VRM Design
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
6 Layer PCBThe 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Lightning Gaming Ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects
High Speed M.2 Solution
This motherboard is capable of accomadating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Chipset Manufacturer: Intel
Chipset Model: H670
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen
Processor Supported: Pentium Gold,Celeron,Core i5,Core i7,Core i9,Core i3
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 128 GB
Memory Speed Supported: 5000 MHz,3200 MHz
Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,5,10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 3
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 2
Number of USB 3.2 Ports: 1
Number of USB 3.2 Gen 1 Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 1
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.2 Ports: 5
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
Package Contents:
Environmentally Friendly: Yes
Energy Efficiency Compliance: Energy-related Products Directive Ready (ErP Ready)
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- RAID supported levels provide data reliability and fault tolerance
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
- 2 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
[custom-specifications]
| Specifications | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | H670 PG Riptide |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | H670 PG Riptide |
| Product Name | H670 PG Riptide Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H670 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 12th Gen |
| Processor Supported | Pentium Gold,Celeron,Core i5,Core i7,Core i9,Core i3 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 5000 MHz,3200 MHz |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 5 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x1 Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of Onboard USB 3.2 Ports | 5 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive Ready (ErP Ready) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
[/custom-specifications]
