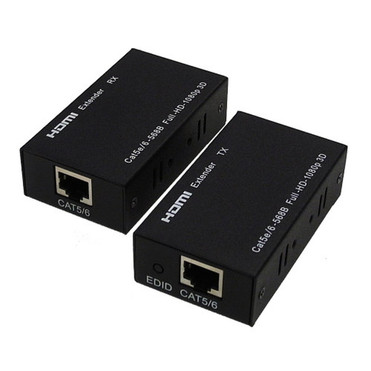

This HDMI video extender allows you to extend your 3D or HD display up to 197ft (60 meters) away from your source device over a single CAT5e or CAT6 cable at a resolutions of 1080p/60Hz.
Physical Characteristics
|
Color |
Black |
Housing |
Metal Enclosure |
Operating Temperature |
-15° ~ 55° |
Power
|
Input Voltage |
125V |
Power Supply |
2 x 5 volt, 1 amp DC Converter |
Compatibility
|
PC to Monitor |
Yes |
PC to TV |
Yes |
DVD to Monitor |
No |
DVD to TV |
Yes |
Connector(s)
|
Transmitter |
HDMI Input Female, RJ45 Female |
Receiver |
HDMI Output Female, RJ45 Female |
Performance
|
Video |
480i/ 480p/ 720p/ 1080i/ 1080p@60Hz/ 3D 1080p |
Video Bandwidth |
165MHz Max |
Transmission Range |
Single CAT-5e cables up to 50 metres (164 ft) Single CAT-6 cables up to 60 metres (197 ft) |
3D |
1080p |
Audio |
DTS-HD, Dolby-true HD, DTS, Dolby-AC3, DSD |
HDCP Compliant |
Yes |
Supports EDID 2D, 3D |
Yes |
Compatibility
|
Sync Device and Display |
Set the resolution of the source device to match the display resolution. The extender will not work if the source devices resolution is set higher than the displays capabilities |
Environmental
|
RoHS |
Yes |
Certification(s)
|
CE |
Yes |
Packaging Information
|
Package Quantity |
1 |
Product Weight |
0.5 lbs [0.2kg] |
Package Weight |
1 lbs [0.5kg] |
Contents
|
Included in Package |
1 - Transmitter |
|
1 - Receiver |
|
2 - DC5V Power Adapter |
|
1 - Manual |
