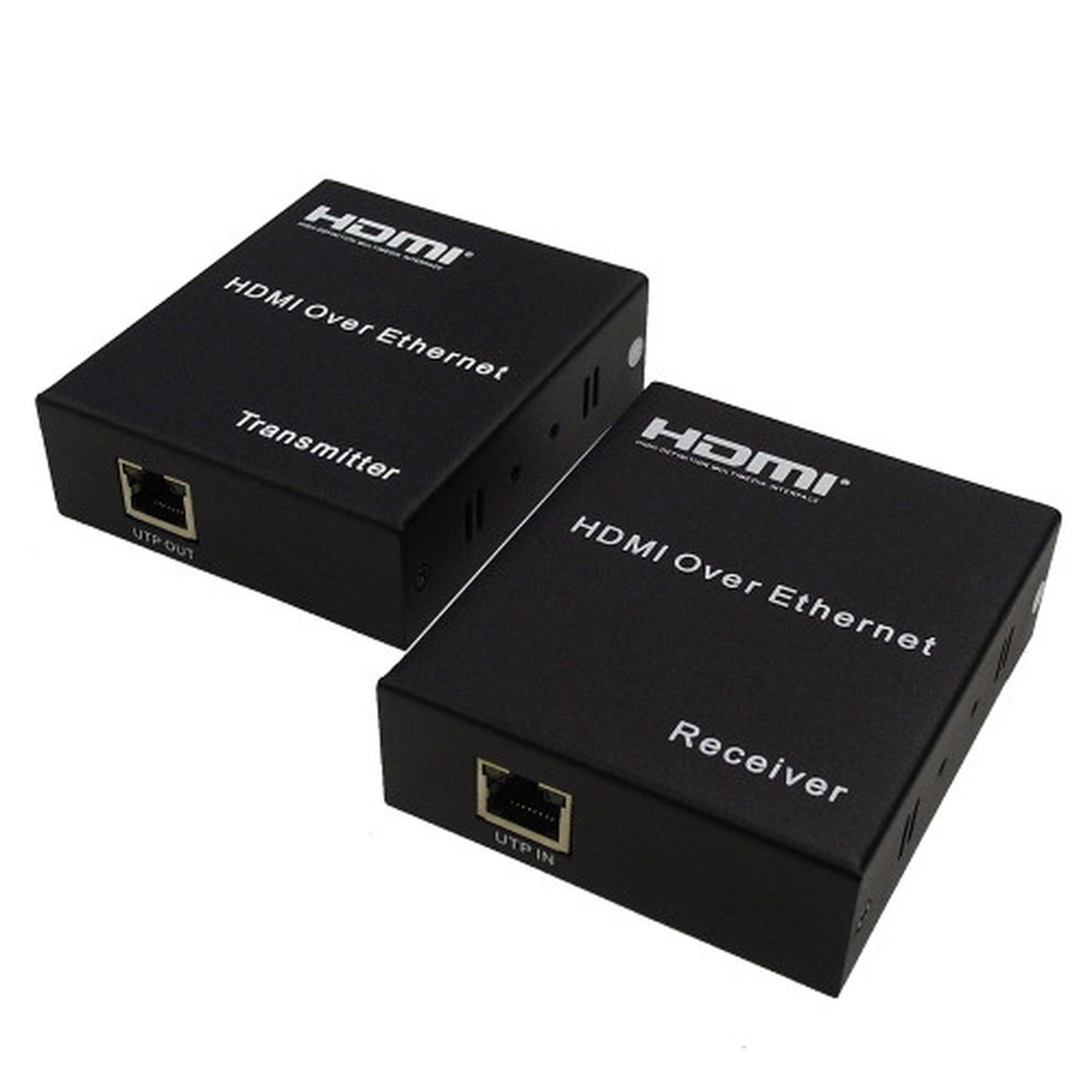

HDMI Extender Over One Cat5e/Cat6 UTP Cable 120m
MSRP:
$200.95
$200.95
$180.95
Save:
$20.00 (9.95%)
SKU:
FN-VE-HDMI-007C
Availability:
Stock in Canada - Purolator or UPS
Weight:
1.70 LBS
Shipping:
Calculated at Checkout
This video extender allows you to extend your 3D or HD display up to 393ft (120 meters) away from your source device over a single Cat5e or Cat6 cable at a resolution of 1080p/60Hz. Built-in IR extender function allows IR remote control of source devices from remote viewing location by sending IR commands received in the area of the display back to the source devices. Receivers can be purchased separately under part number VE-HDMI-007B-R.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0 ~ 70℃ |
| Dimensions | 92 x 79 x 20mm |
| Power | |
| Power Adapter | 100V-240V(50-60Hz) Output: 5V/1A |
| Power Consumption | HDMI Sender: 3W HDMI Receiver: 3W |
| Compatibility | |
| PC to Monitor | Yes |
| PC to TV | Yes |
| DVD to Monitor | Yes |
| DVD to TV | Yes |
| Connector(s) | |
| Transmitter | HDMI Female, RJ45 Female, 3.5mm Female |
| Receiver | HDMI Female, RJ45 Female, 3.5mm Female |
| Performance | |
| Video | 480i/ 480p/ 720p/ 1080i/ 1080p@60Hz |
| IR Frequency Range | 38khZ; NEC |
| Transmission Range | Up to 120m (393ft) |
| Audio | Sample Rate: 32kHz, 44.1kHz, 48kHz |
| HDMI Version | 1.3 |
| HDCP Compliant | Yes, HDCP 1.2 |
| Approvals | |
| Power Adapter | c(ETL)us |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1 lbs [0.5kg] |
| Package Weight | 1.7 lbs [0.8kg] |
| Contents | |
| Included in Package | 1 - Transmitter |
| 1 - Receiver | |
| 2 - DC5V Power Adapter 1 - IR Emitter 1 - IR Receiver |
|
| 1 - Manual | |
