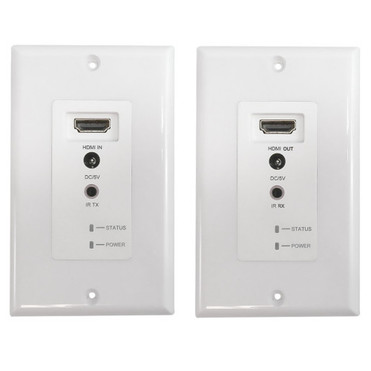

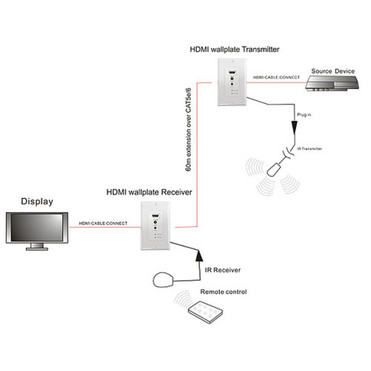

This HDMI single Cat5e/6 wall plate videoextender allows you to extend your HD display up to 190ft (60 meters) and keepsyour cables hidden behind walls. Built-in IR extender function allows IR remotecontrol of source devices from remote viewing location by sending IR commandsreceived in the area of the display back to the source devices. Power isrequired at both the transmitter and receiver units.
Physical Characteristics |
|---|
| Color | White |
| Wall Plate Size | Single Gang |
| Dimensions (LxWxH) | 115x70x35mm |
| Operating Temperature Range | -5°c ~ 35°c |
Power |
|---|
| Power Supply | DC 5 volts p-p(TTL) |
| Power Consumption | 3 Watts (maximum) |
Compatibility |
|---|
| PC to Monitor | Yes |
| PC to TV | Yes |
| DVD to Monitor | No |
| DVD to TV | Yes |
Connector(s) |
|---|
| Transmitter | HDMI Female (Input), RJ45 Ethernet interface, IR (3.5 mm) in/out, 5V DC in |
| Receiver | HDMI Female (Output), RJ45 Ethernet interface, IR (3.5 mm) in/out, 5V DC in |
Performance |
|---|
| Video Format | DTV/HDTV: 480i/ 567i/ 480p/ 567P/ 720p/ 1080i/ 1080p@60Hz
3D video format |
| Video Bandwidth | Maximum TMDS clock frequency 165Mhz (4.95Gbps) |
| Transmission Range | 1080p 8-bit 30m (maximum); 1080p 12-bit 25m (maximum) over CAT5E/CAT6 / 24AWG/ Solid (recommended to use 23AWG Cat6 cable) |
| Audio | 8-channel, supports Dolby True HD and DTS Master |
| HDCP Compliant | Yes |
| Bi-direction remote | Yes |
| CEC pass through | Yes |
| EDID Call Back | Yes |
| Indicator Light | Power Green, video link yellow |
| Remote IR | Wavelength: 940nm, Frequency: 38KHz |
Environmental |
|---|
| RoHS | Yes |
Certification(s) |
|---|
| CE | Yes |
| FCC | Yes |
Packaging Information |
|---|
| Package Quantity | 1 |
| Product Weight | 0.3 lbs [0.1kg] |
| Package Weight | 1 lbs [0.5kg] |
Contents |
|---|
| Included in Package | 1 Transmitter |
| 1 Receiver |
| 2 - 5V DC 1A Power Adapter
2 IR Blaster (with 3m cable)
2 IR Receiver Cables (with 3m cable)
2 Single Gang Decora Wall Plates White with hardware |
| 1 - Manual |
