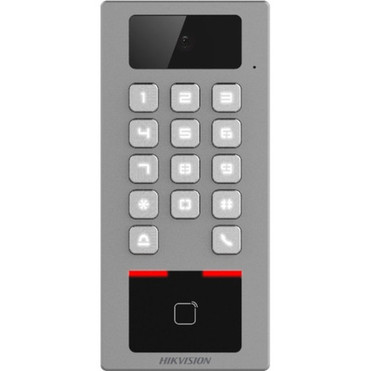

Hikvision DS-K1T502DBWX-C Pro Video Access Control Terminal - Silver - Proximity/Code/Fingerprint - IP65 IK09 - Fast Ethernet/Wi-Fi/Bluetooth
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for demanding access control scenarios, the DS-K1T502DBWX-C integrates multiple identification technologies. Proximity card reading, numeric keypad entry, and fingerprint biometrics provide flexible authentication options to suit various user preferences and security levels.
The terminal connects via Fast Ethernet for network integration and includes Wi-Fi and Bluetooth for wireless flexibility. Serial and Wiegand interfaces ensure compatibility with legacy and modern access control systems, while dual-voltage 12/24V DC power input supports diverse installation setups.
This section brings together practical product details such as Identification Method, Operating Range, Number of Doors, Ethernet Technology, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This access control terminal stands out with its triple-authentication capability, allowing organizations to implement layered security protocols. The combination of proximity, code, and fingerprint methods reduces reliance on any single technology, enhancing overall system reliability.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Rugged Construction, Flexible Connectivity.
Rugged Construction
IP65 rating protects against dust and water jets, while IK09 impact resistance ensures durability in high-traffic areas.
- Dust-tight enclosure
- Water jet protection
- High-impact resistance
Flexible Connectivity
Wired Fast Ethernet, Wi-Fi, and Bluetooth provide multiple deployment options to match network infrastructure and installation requirements.
- Network integration
- Wireless flexibility
- Legacy system support
Deployment / Use Cases
The DS-K1T502DBWX-C is ideal for controlled entry points in office buildings, educational facilities, healthcare institutions, and industrial sites. Its compact dimensions and multiple mounting options allow installation on standard door frames, glass partitions, or wall surfaces.
Typical applications include main entrance security, restricted area access, after-hours building entry, and visitor management systems. The terminal's intercom functionality enables audio communication between entry points and security stations, adding verification capabilities to the access control process.
This section brings together practical product details such as Identification Method, Operating Range, Number of Doors, Ethernet Technology, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Commercial Office Security
Manage employee and visitor access to main lobbies, server rooms, and executive suites with flexible authentication methods.
Institutional Access Control
Secure laboratories, storage areas, and restricted zones in educational and healthcare facilities with durable, weather-resistant construction.
Physical Profile
Measuring 6.97 inches high by 3.19 inches wide by 1.03 inches deep (177 x 81 x 26.10 mm), this terminal presents a low-profile appearance suitable for modern architectural designs. The silver finish complements contemporary interior finishes while maintaining professional aesthetics. The compact footprint minimizes visual intrusion while providing full functionality.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.97" (177 mm), 3.19" (81 mm), 1.03" (26.10 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.19" (81 mm)
- Depth
- 1.03" (26.10 mm)
- Height
- 6.97" (177 mm)
Highlights
- Triple authentication with proximity, key code, and fingerprint support
- IP65 dust and water protection rating for durable operation
- IK09 impact resistance withstands physical abuse
- Fast Ethernet with Wi-Fi and Bluetooth connectivity options
- Serial and Wiegand interfaces for system integration
- Dual-voltage 12/24V DC power input flexibility
- Compact silver design for modern installations
- Single-door configuration with intercom functionality
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-K1T502DBWX-C |
| Brand Name | Hikvision |
| Product Series | Pro |
| Product Model | DS-K1T502DBWX-C |
| Product Name | DS-K1T502DBWX-C Video Access Control Terminal |
| Product Type | Biometric/Card Reader/Keypad Access Device |
| Technical Information | |
| Identification Method | Proximity,Key Code,Fingerprint |
| Operating Range | 1.18" (30 mm) |
| Number of Doors | 1 |
| Application/Usage | Door,Intercom |
| Ingress Protection (IP) Rating | IP65 |
| Impact Protection (IK) Rating | IK09 |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial | Yes |
| Wiegand | Yes |
| Power Description | |
| Input Voltage | 12 V DC,24 V DC |
| Physical Characteristics | |
| Product Color | Silver |
| Height | 6.97" (177 mm) |
| Width | 3.19" (81 mm) |
| Depth | 1.03" (26.10 mm) |
| Miscellaneous | |
| Country of Origin | China |
FAQ
What identification methods does this access control terminal support?
The DS-K1T502DBWX-C supports three identification methods: proximity card reading, numeric keypad code entry, and fingerprint biometric authentication. This triple-authentication approach allows organizations to implement flexible security protocols tailored to different user groups and access requirements.
What environmental protection ratings does this terminal have?
This terminal features IP65 ingress protection, making it dust-tight and resistant to water jets from any direction. It also has IK09 impact protection, which means it can withstand 20 joules of impact energy equivalent to a 5 kg mass dropped from 400 mm. These ratings ensure reliable operation in demanding indoor and sheltered outdoor environments.
How does this terminal connect to network and access control systems?
The terminal offers multiple connectivity options including Fast Ethernet (10/100 Mbps) for wired network integration, Wi-Fi for wireless deployment, and Bluetooth for short-range communication. It also includes serial and Wiegand interfaces for compatibility with legacy and modern access control panels and management software.
What power requirements does this access control terminal have?
This terminal operates on 12V DC or 24V DC power input, providing flexibility for different installation scenarios. The dual-voltage capability allows integration with existing power supplies or security system power distribution units without requiring voltage conversion equipment.
How many doors can this access control terminal manage?
The DS-K1T502DBWX-C is configured for single-door applications. It controls access to one entry point while providing intercom functionality for communication between the door station and security personnel or authorized users inside the secured area.
What are the physical dimensions of this terminal?
The terminal measures 6.97 inches in height (177 mm), 3.19 inches in width (81 mm), and 1.03 inches in depth (26.10 mm). This compact footprint allows installation on standard door frames, glass surfaces, or walls with minimal visual intrusion while maintaining full functionality.
What connectivity or interface options are available?
Connectivity options include Fast Ethernet, helping the product integrate into common office or home setups.
